Russian menu! Russian Menu Wireless Sonar Portable Fish Finder Sensor Echo Sounder Alarm River Lake Sea Bed Live 135ft/45M

PRODUCT SPECIFICATION:
1) Display: 2.2inch high-contrast Dot matrix FSTN LCD, pixels:128Vx64H
2)Back lighting: On/off White LED
3) Depth Capability: 135feet(45m)
4) Wireless Sonar: 90 degrees beam angle in 125Khz
5) Power Requirement: 4xAAA alkaline batteries(not included)
6) Waterproof design: level-4 (spray-water-proof)
7) Water depth,water temperature, fish location, bottom contour can be constantly obtained from the water
8) User selectable sensitivity,zoom,units, depth range,shallow alarm,fish icon,fish alarm,and chart speed setting
9) Built in memory stores sonar setting when the fish finder is turned off
10) Wireless Sensor could shut down when it is out of the water
11) Operational Temperature: 14°F to 122°F(-10°C to 50°C)

Cast the sensor away to the water

Sensor detect underwater information

Underwater information is transmitted and displayed on the monitor

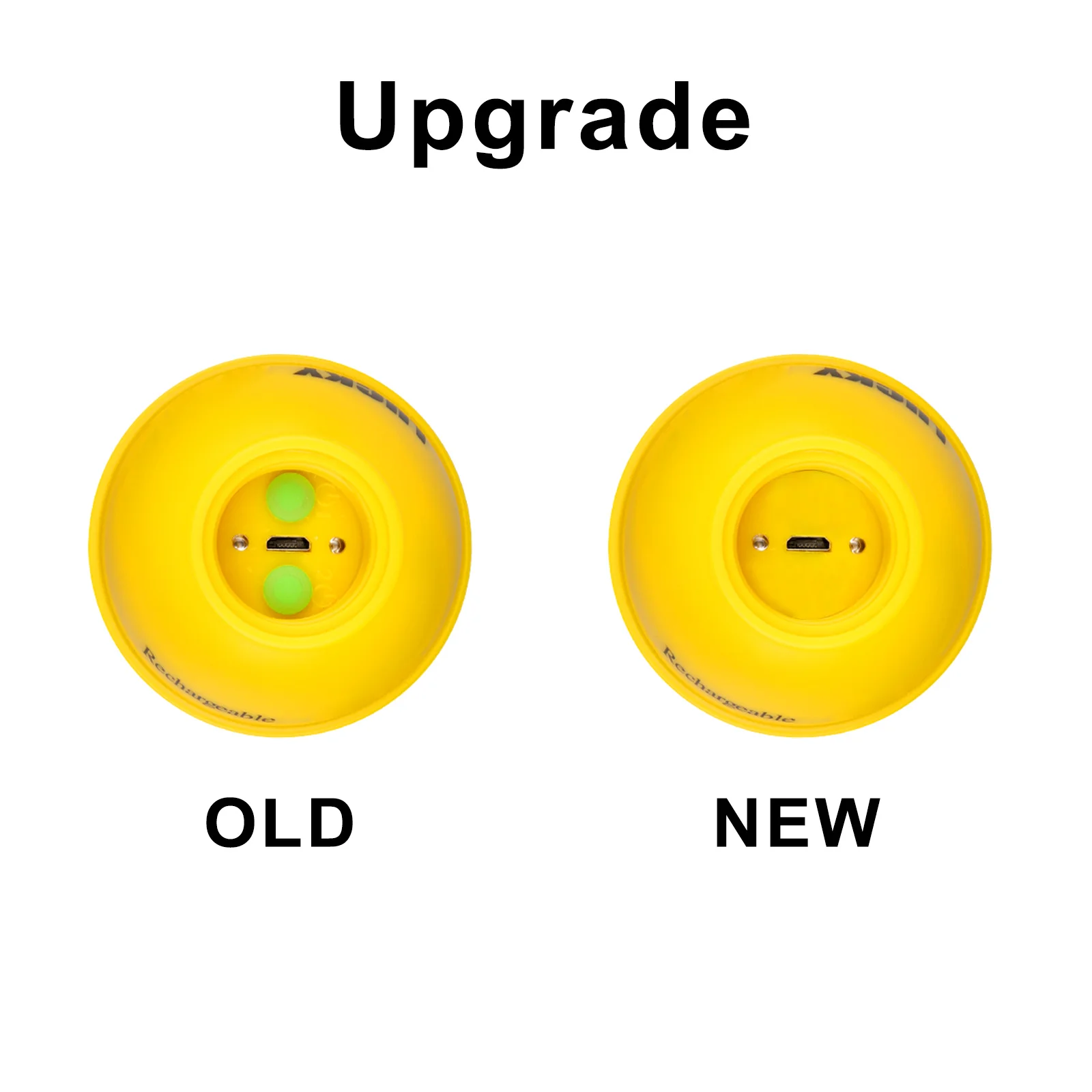

Upgraded new version:

No need to screw down the cover.

Turn on when put into water,

turn off when out of water.

New and old models are shipped randomly

New and old models are shipped randomly

New and old models are shipped randomlyWorking indicator (blue)

Charging Port

Charging Indicator(red)

This mdoel sensor have unique Fish attractive lamp.

Wireless operating range is 150M.

This model wide detection 90° ,and can detect water depth is 45m

1.Water depth
2. Water temperature
3.Small Fish Symbol
4.Bottom Contour
5.W-sensor battery strength indicator
6. Sensor connect indicator
7.power/menu key
8.Left Arrow Key
9. Monitor Battery Strength Indicator
10.Sensitivity indicator
11.Upper Zoom Range
12.Water surface Line
13. Medium icon with depth
14. Right Arrow Key

Quick and accurate detection comes from qualified inner parts.

5 Level of sensitivity setting filter wanted fish schools easily

This model sonar frequency is125KHZ,Works perfectly in temperature-10℃to50℃

Fushing way:
1. Night fishing probe
2. Turbid fish probe
3. ice fishing probe
