HTRC T240 C240 RC Charger AC 150W DC 240W 10A Dual Channel Lipo Battery Balance Charger Discharger For RC Drone Multicopter

Description

HTRC T240  C240 RC Charger DUO AC 150W DC 240W 10A Dual Channel Lipo Battery Balance Charger Discharger For RC Drone Multicopter

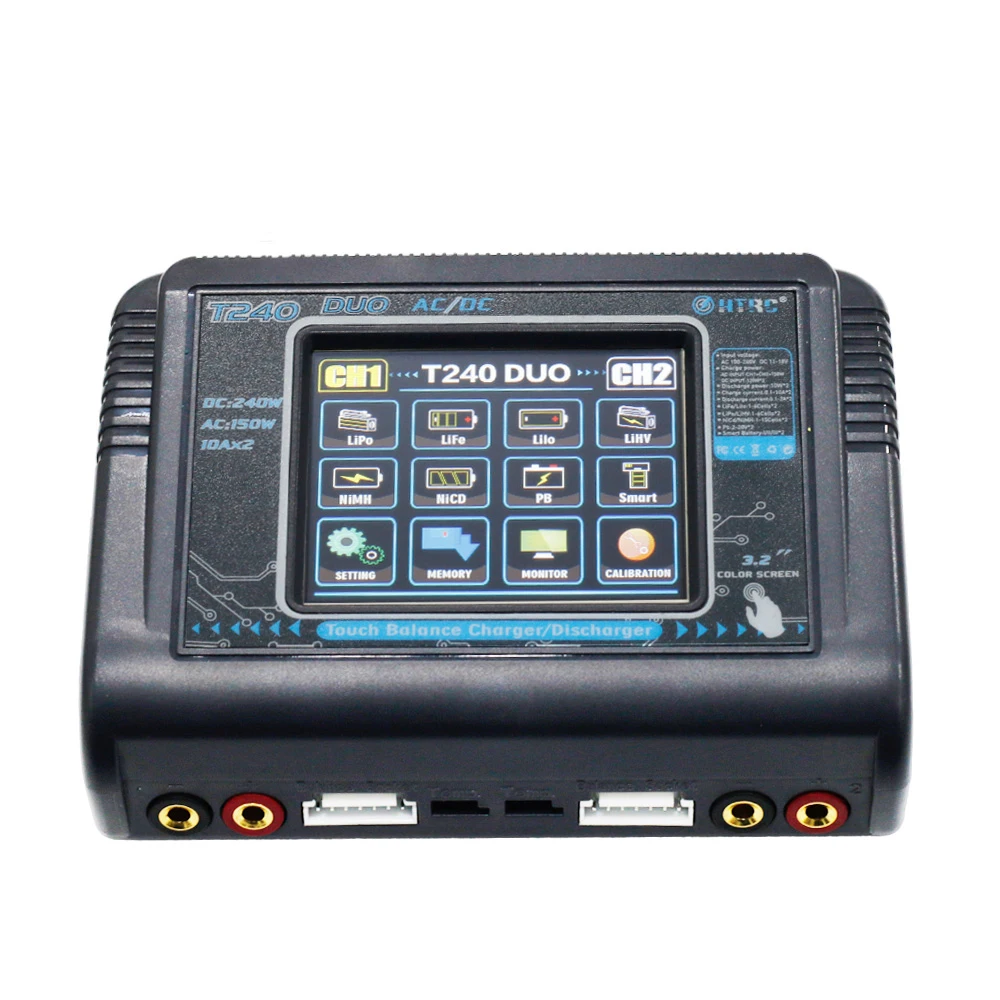

T240 Description:

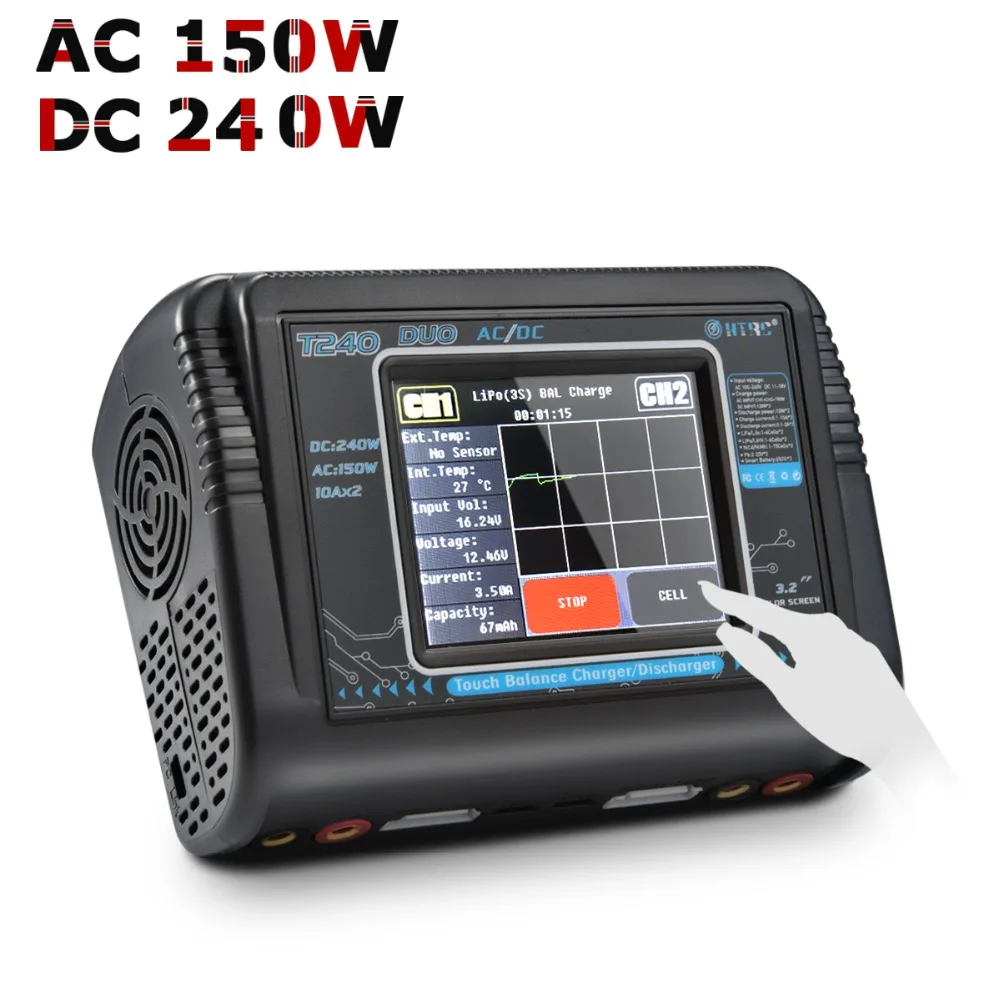

T240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 3.2 inch color LCD Toch screen display,easy operation,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.

It can support power distribution in AC mode,total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.

Good news! :New add Tamiya cable and crocodile clip, makes it more powerful.

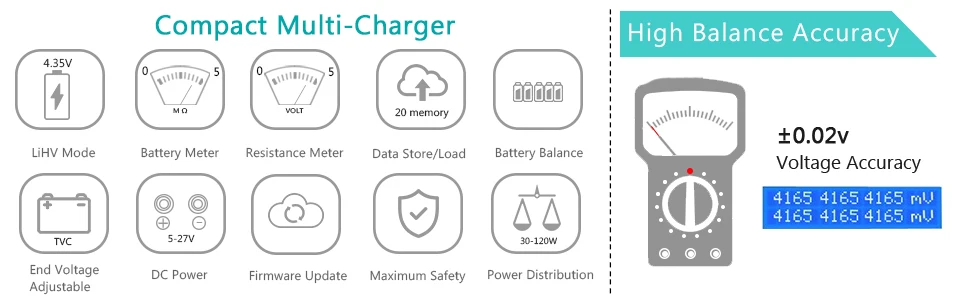

Features:
*Compact touch screen charger, easy operation.
*Full plastic shell, safe, beautiful.
*Twin-channel,charge two different kinds of batteries simultaneously.
*high power,single port max 120W in AC mode. support power distribution in AC mode, ranges from 30-120W

*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Lithuim batteries cells counts
*Adjustable digital DC Power.

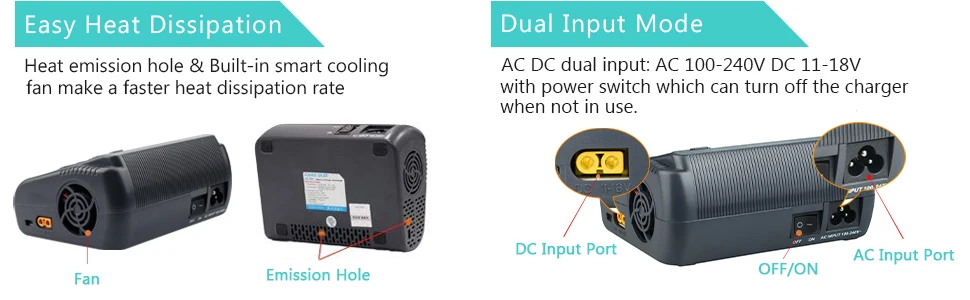

*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.
*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-function:
-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell’s  voltage.(does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Calibration: cell voltage monitoring and calibration.(calibration function for 6s lithuim battery only)
-Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,low input voltage setting,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Firmware update.

Specification:
Model No.:RH218
Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power:10W*2
Charge current range:0.1-10A *2
Discharge current range:0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
NiCd/NiMH battery cell count:1-15cells*2
PB Battery voltage:2-20V*2
Smart battery:I/II/III*2
Current drain for balancing:500mA/cell
Net Weight:0.48kg

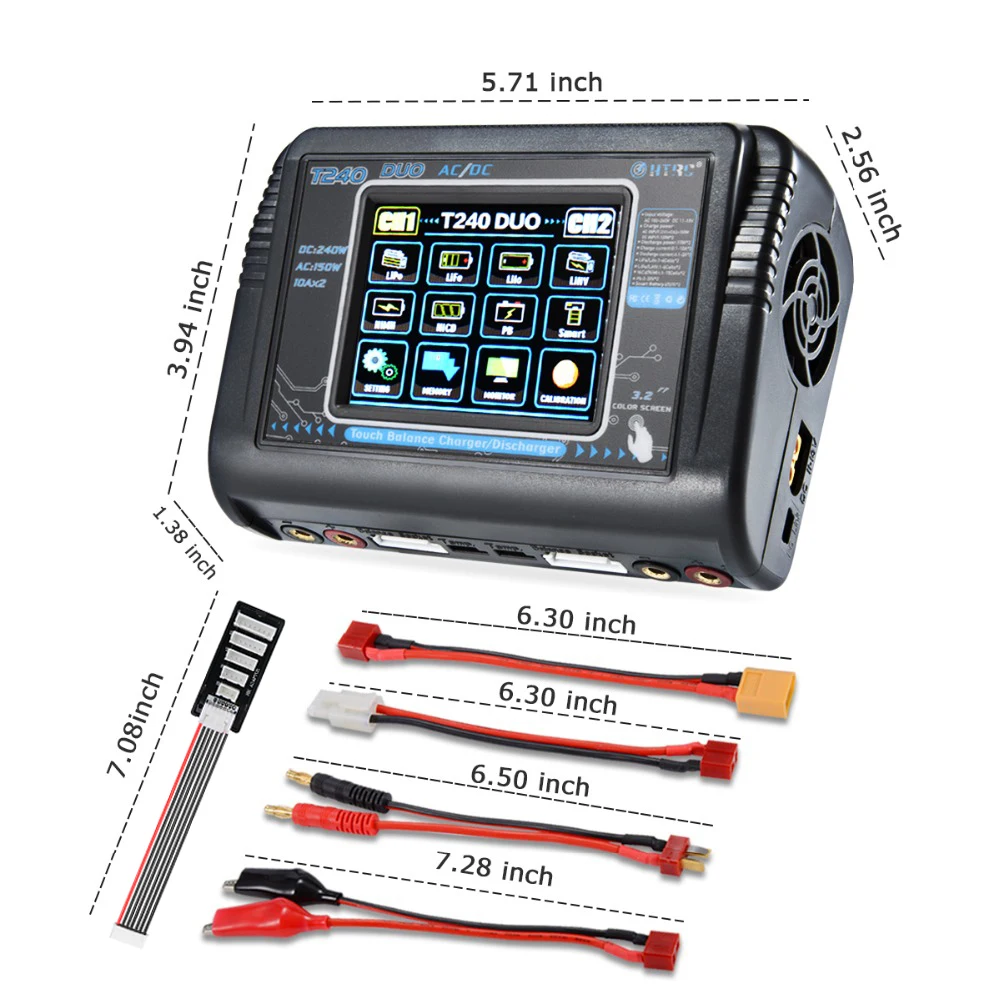

Dimension:145*105*64mm
Gross weight:0.85kg
Package size:215*155*75mm

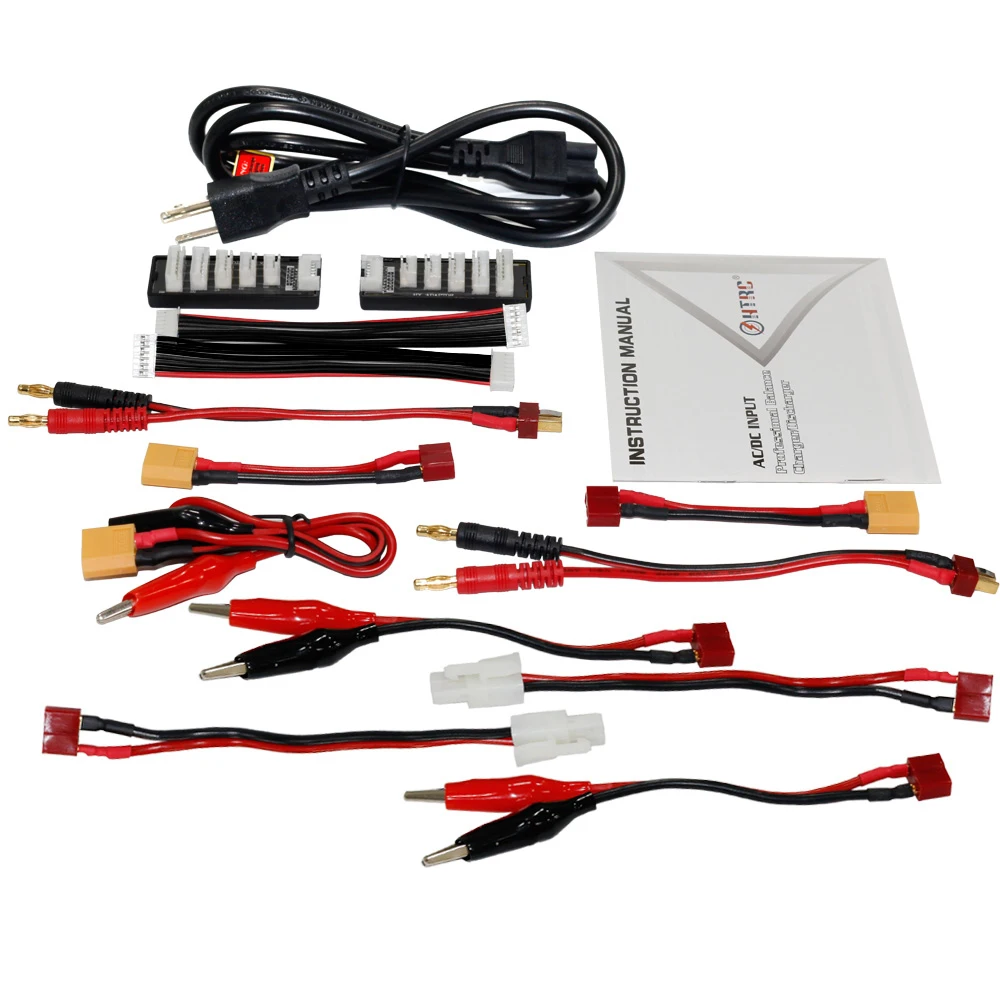

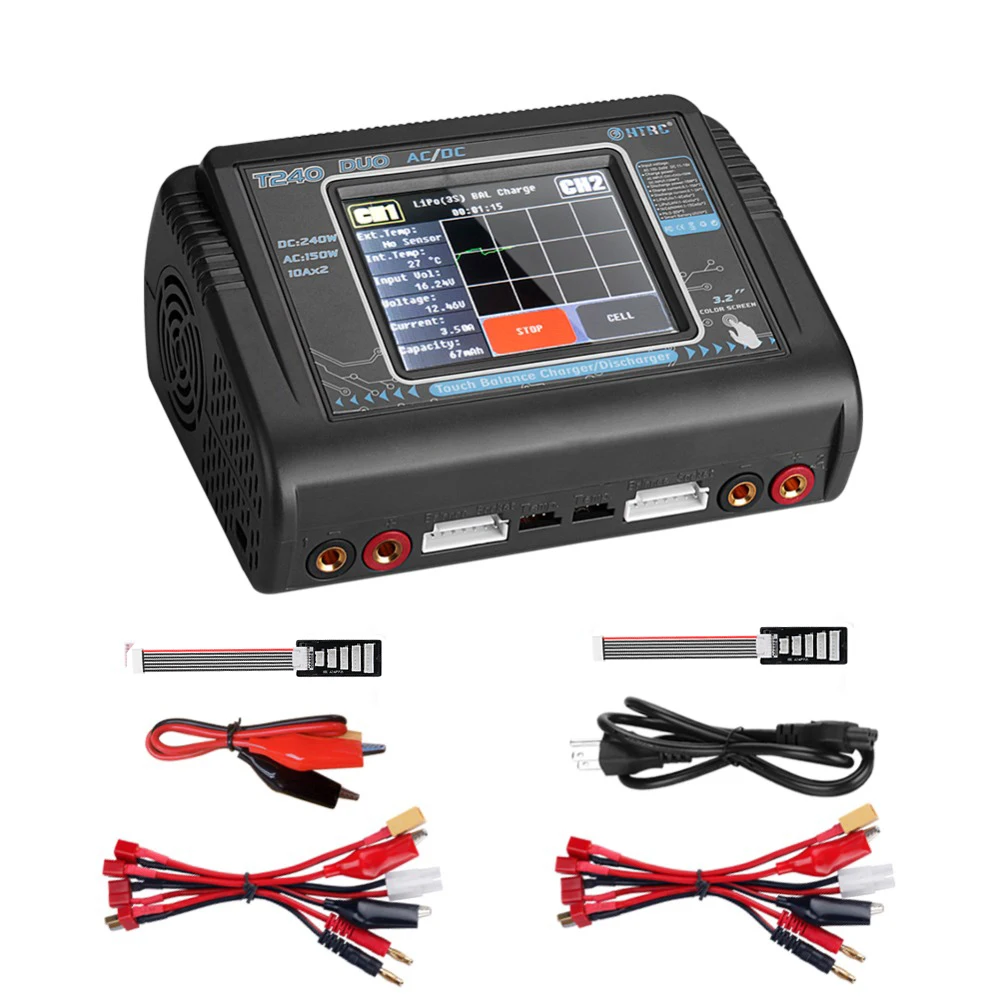

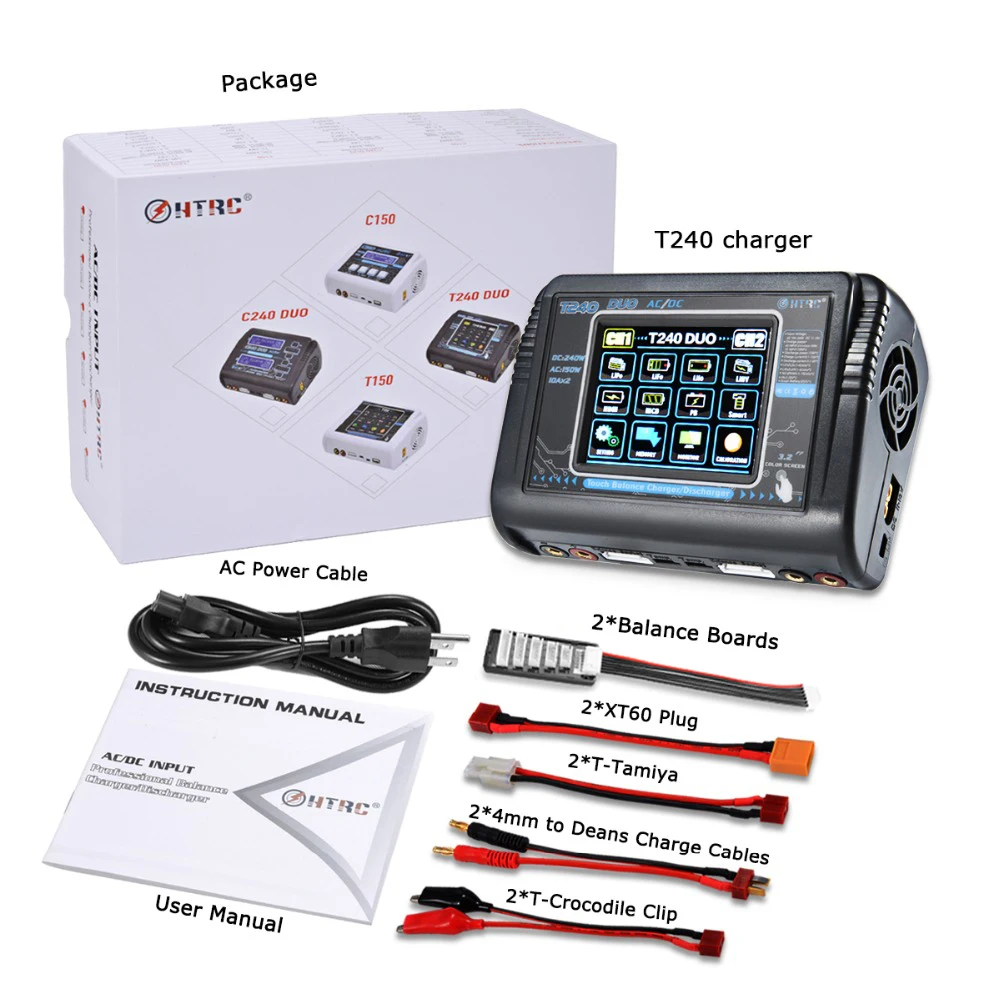

Package list:

1x T240 charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2x balance board with pin cord
2 x Extension cable T-plug to Tamiya(new added)
2 x Extension cable T-pplug to crocodile clip(new added)
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User’s Manual

Please do not select the wrong battery type when charging

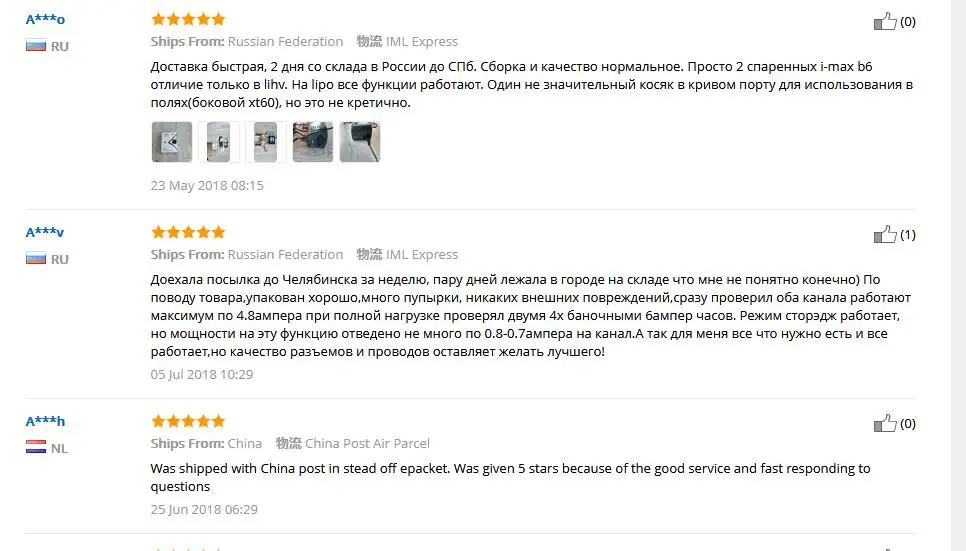

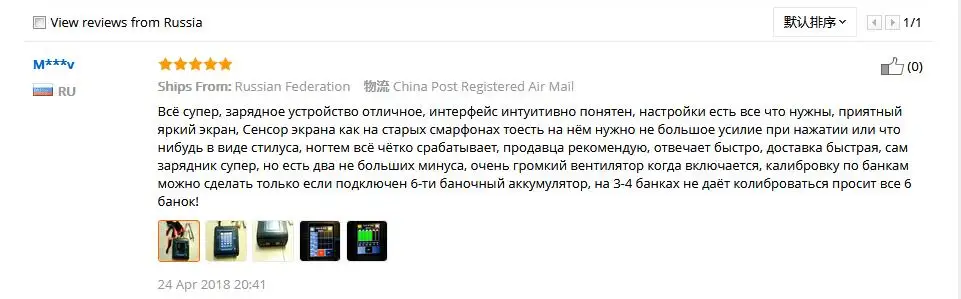

BUYER SHOWS:

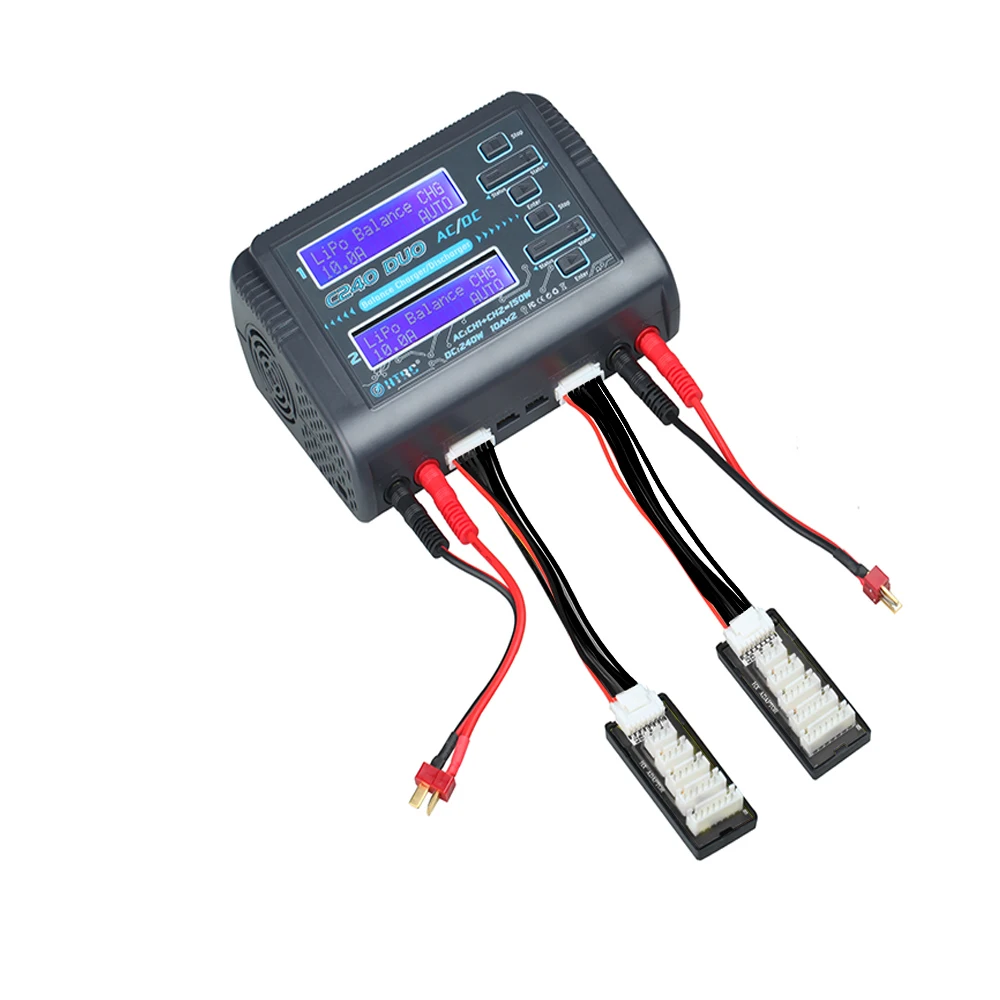

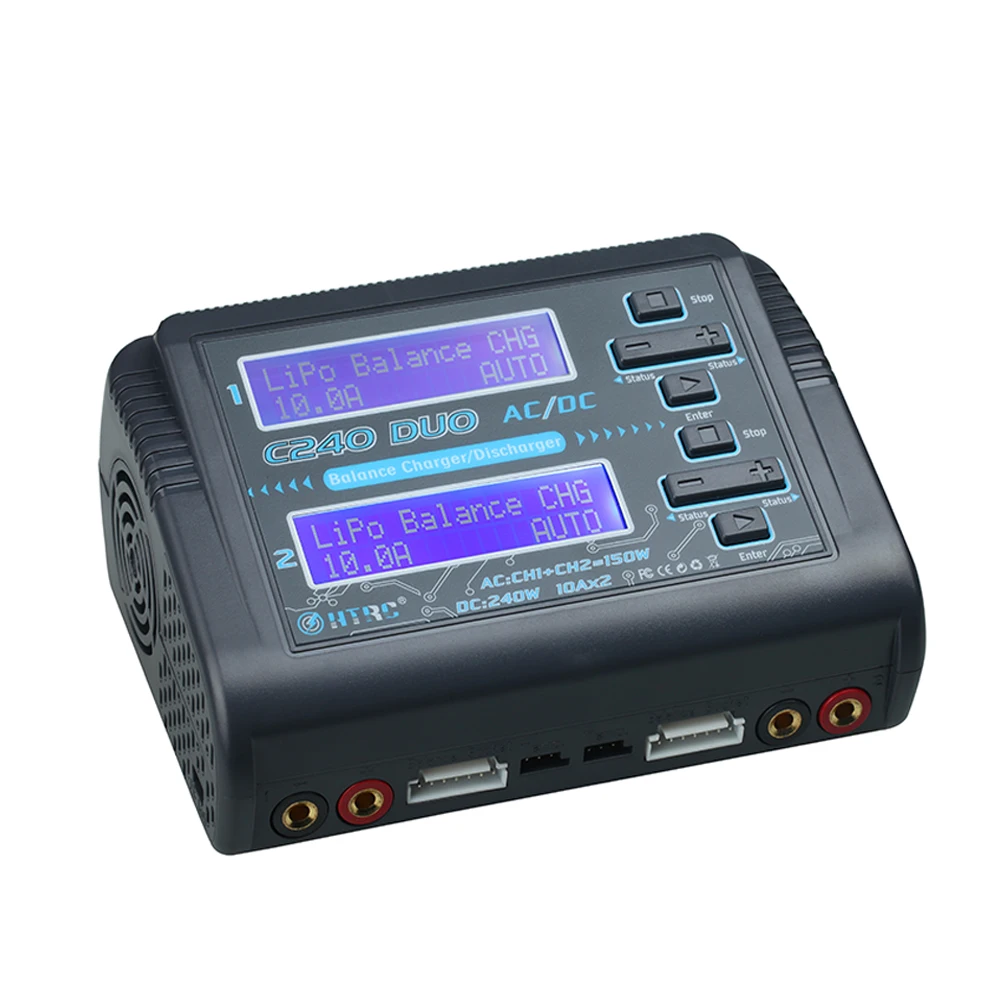

C240 Description:

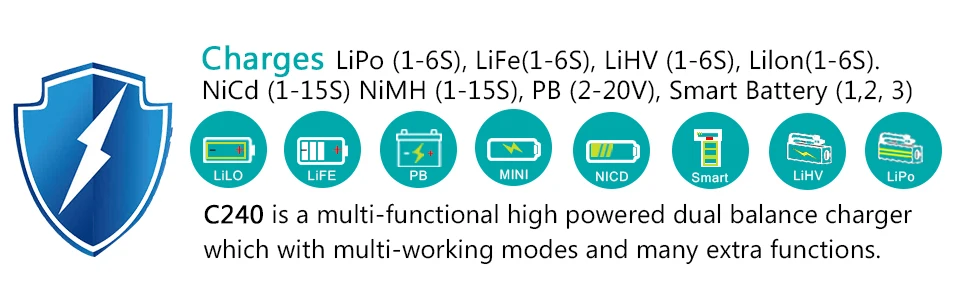

HTRC LiPo Battery Charger Dual Channel AC 150W DC 240W 10A C240 1-6S for Li-ion LiFe NiCd NiMH LiHV PB Smart Battery Discharger

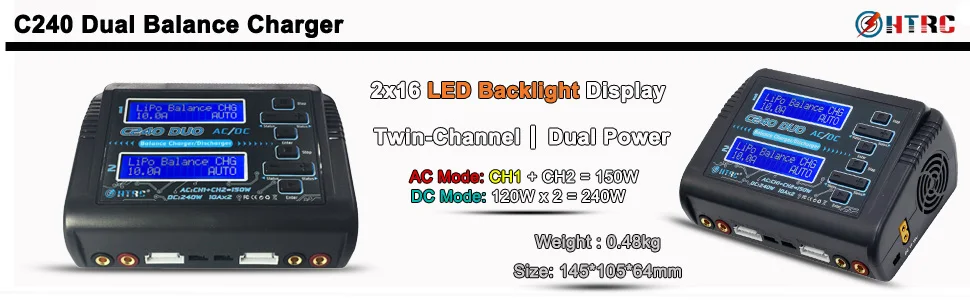

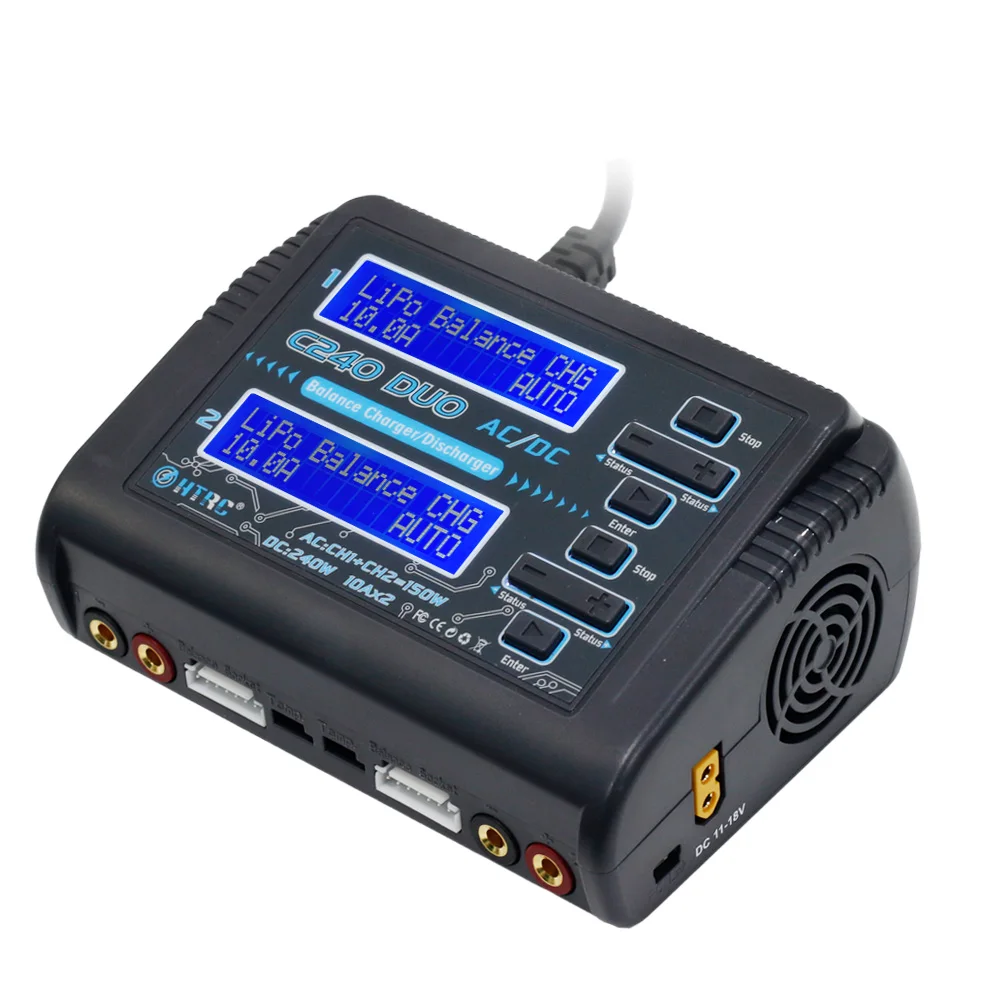

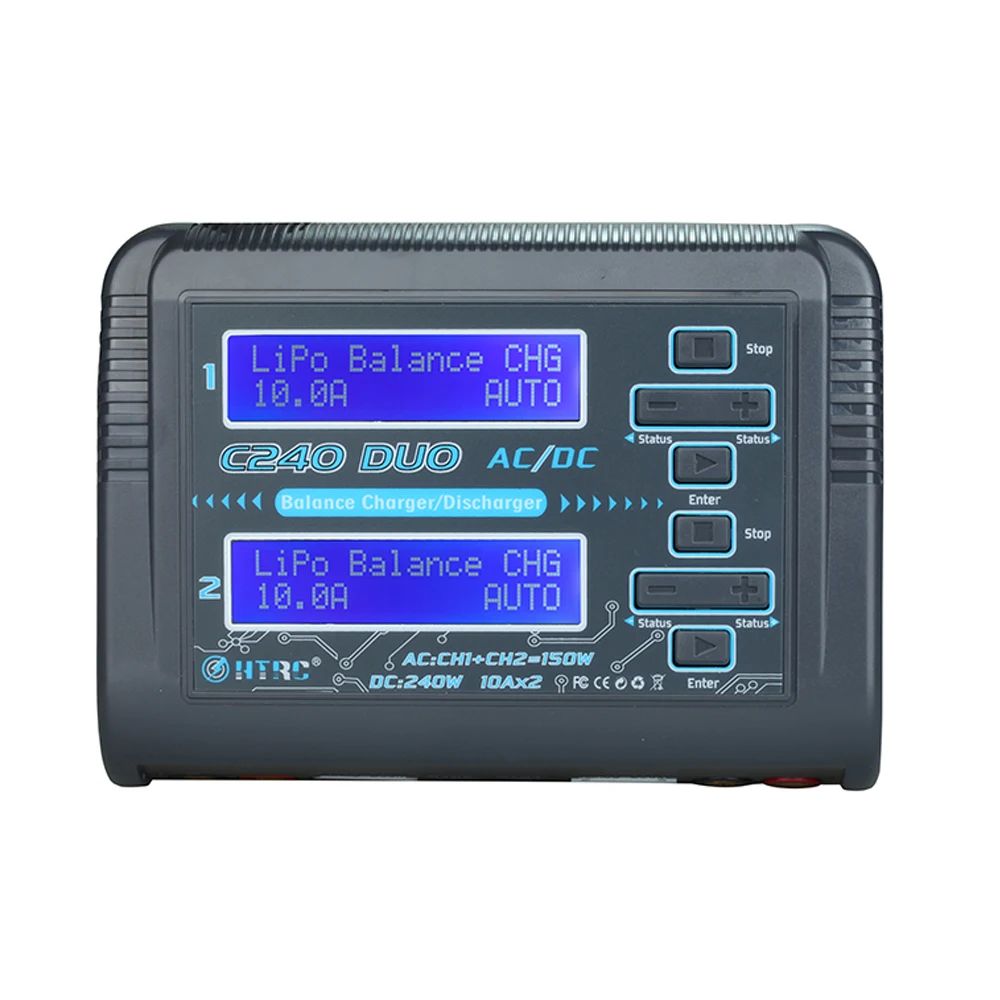

C240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 2×16 LED display,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.

It can support power distribution in AC mode, total power 150W (CH1+CH2=150Watt), and in DC mode, works in 2 * 120W.Max charge current can reach 10A each port in both AC and DC mode.

Good news! :New add Tamiya cable and crocodile clip, makes it more powerful.

Features:
*Twin-channel,charge two different kinds of batteries simultaneously.
*Practical for variety of batteries.
*Automatic identification of Li-Po batteries cells counts
*Built in cool fan for easy heat dissipation

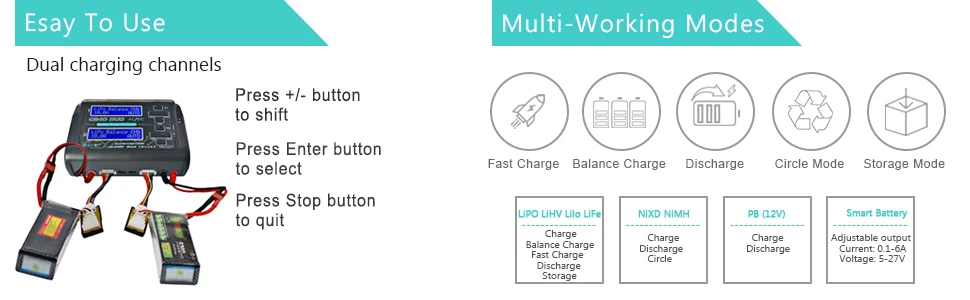

*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, fast charge,storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-extra function:
-Battery Meter:Display lithium battery cell counts, total voltage, battery capacity percentage,each cell’s  voltage.(does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Balancer: individual-cell-voltage balancing,cell voltage Monitoring
-Smart battery:Smart battery I,II,III,and Digital DC Power.(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Built-In PFC
*Firmware update.

Specification:
Model No:HT-0098
Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power:10W*2
Charge current range:0.1-10A *2
Discharge current range:0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
NiCd/NiMH battery cell count:1-15cells*2
PB Battery voltage:2-20V*2
Smart battery:I/II/III*2
Current drain for balancing: 500mA/cell
Net Weight:0.48kg
Dimension:145*105*64mm
Gross weight:0.9kg
Package size:215*155*75mm

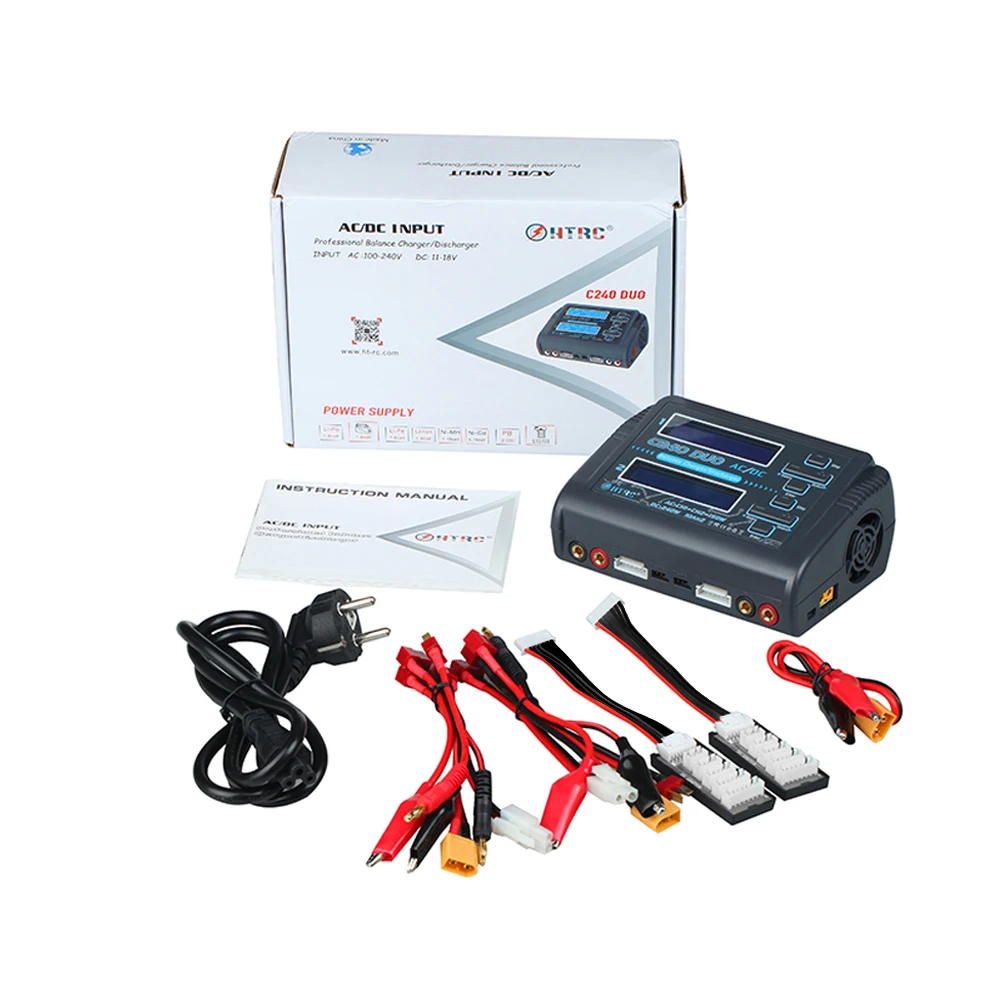

Package list:
1x C240 charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2x balance board with pin cord
2 x Extension cable T-plug to Tamiya(new added)
2 x Extension cable T-pplug to crocodile clip(new added)
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User’s Manual

Please do not select the wrong battery type when charging

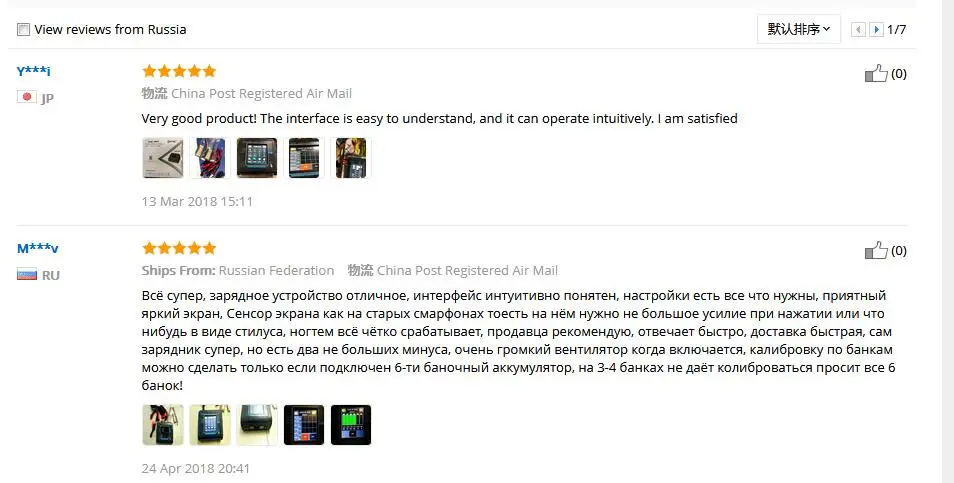

BUYER SHOWS:
