HTRC Lipo Charger T240/C240 DUO AC 150W DC 240W 10A Touch Screen Dual Channel Battery Balance Charger Discharger For RC Toys

NOTE: The link have 4 choose ,please see picture and choose the charger which you want !  T240/C240/C150/T400 ，it depend on your choose as picture .

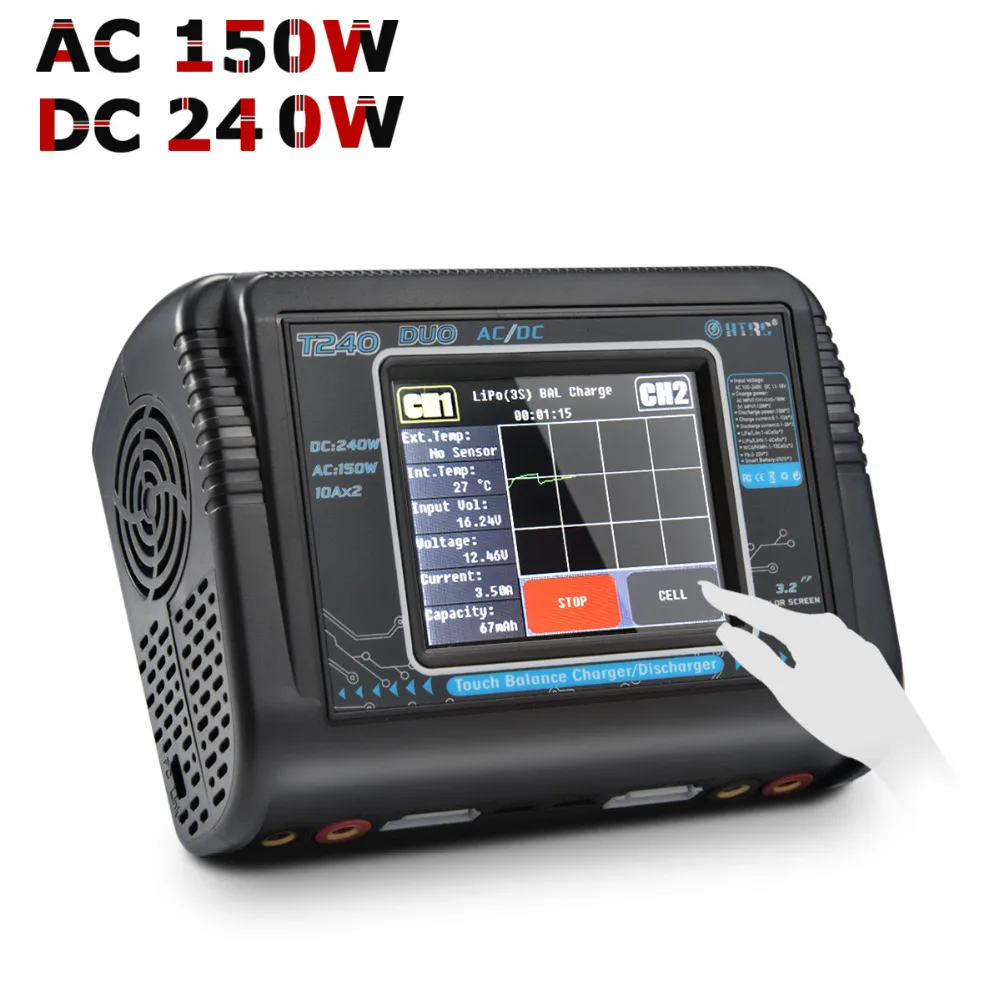

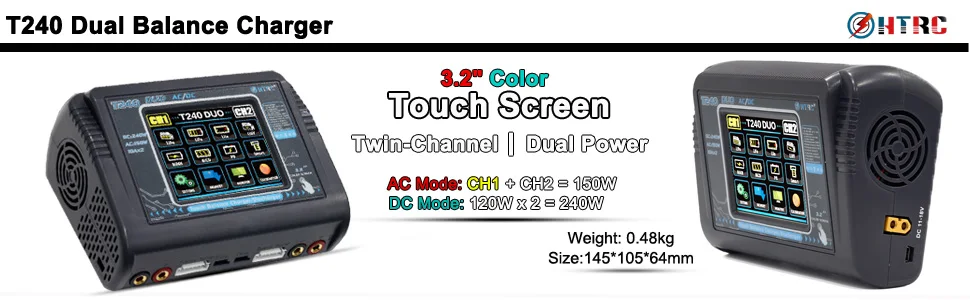

T240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 3.2 inch color LCD Toch screen display,easy operation,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.

It can support power distribution in AC mode,total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.

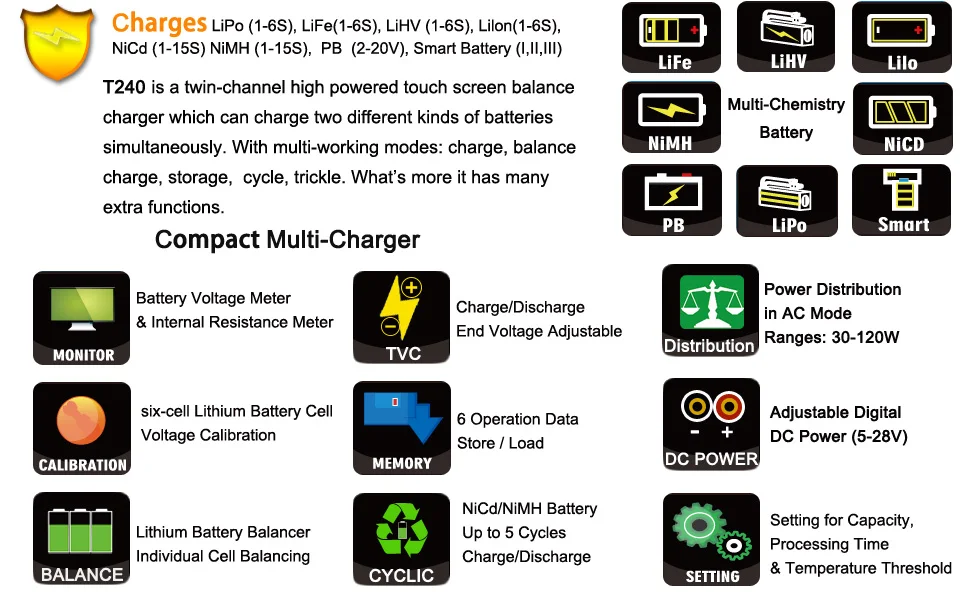

Features:

*Full plastic shell, safe, compact, beautiful.

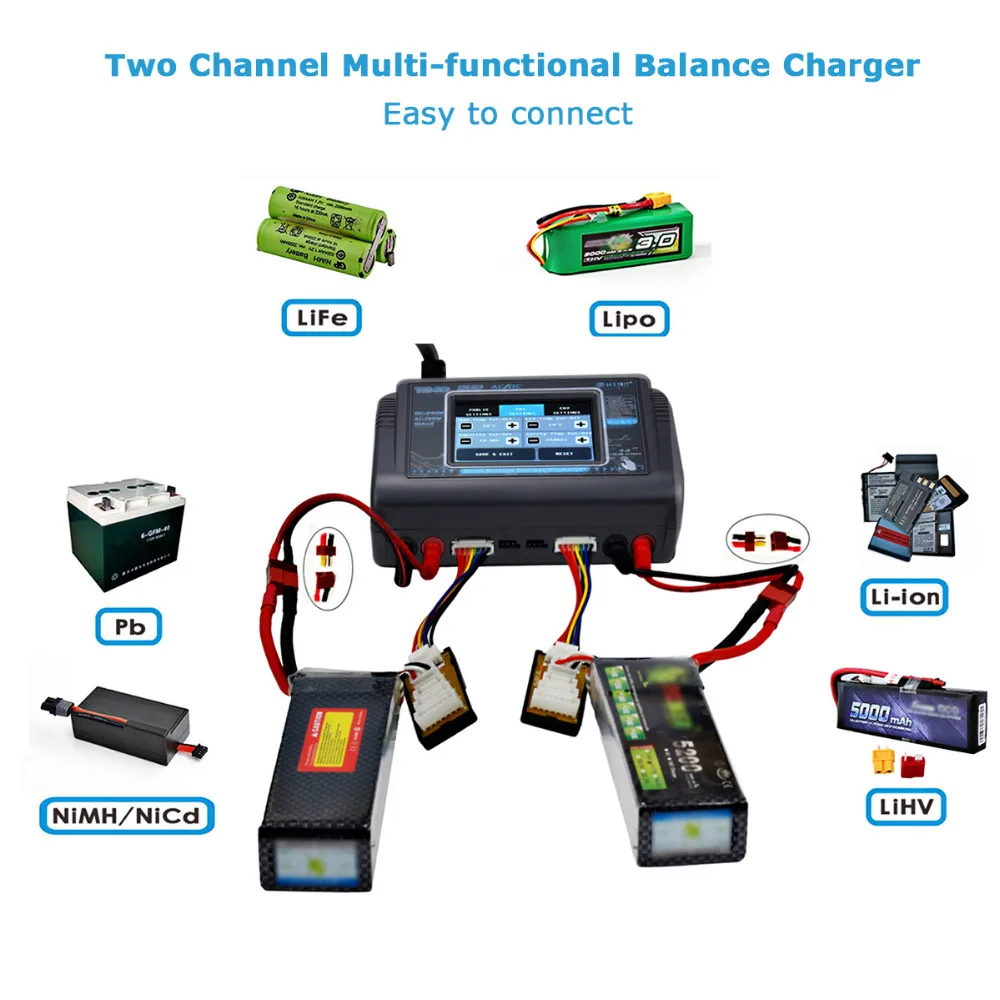

*Twin-channel,charge two different kinds of batteries simultaneously.
*high power,single port max 150W.support power distribution.
*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Li-Po batteries cells counts
*Adjustable digital DC Power.

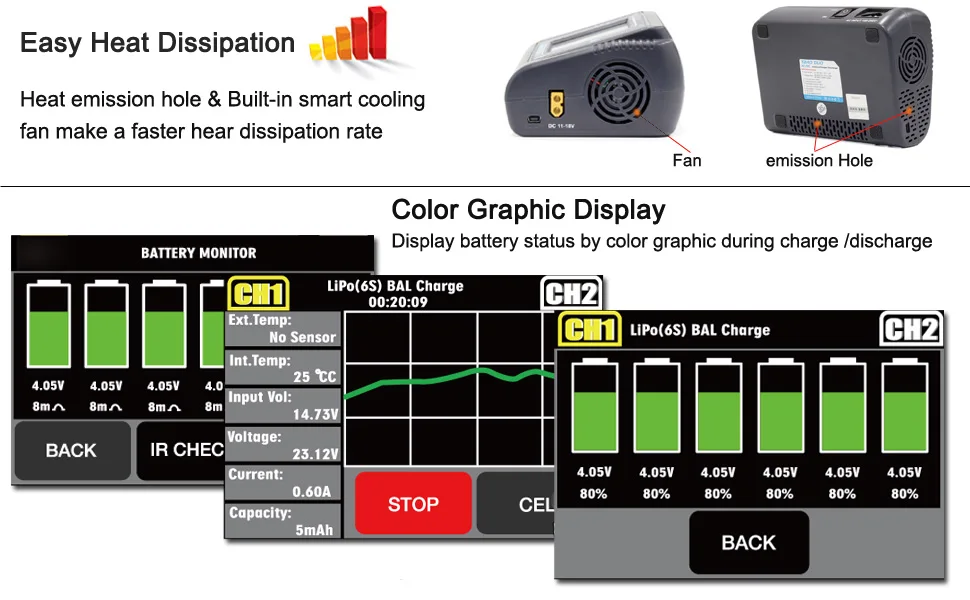

*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.
*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-function:
-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell’s voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Calibration: cell voltage monitoring and calibration.
-Smart battery:Smart battery I,II,III,(Need optional Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Firmware update.

Specification:

T240

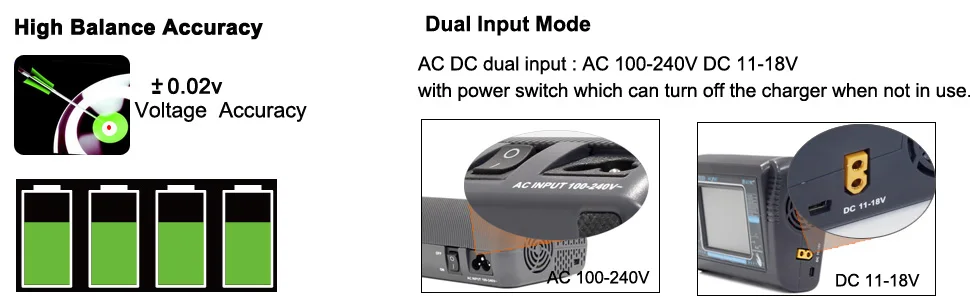

Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power:Max 10W*2
Charge current range:0.1-10A *2
Discharge current range:0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
NiCd/NiMH battery cell count:1-15cells*2
PB Battery voltage:2-20V*2
Smart battery:I/II/III*2
Current drain for balancing:500mA/cell
Net Weight:0.9kg

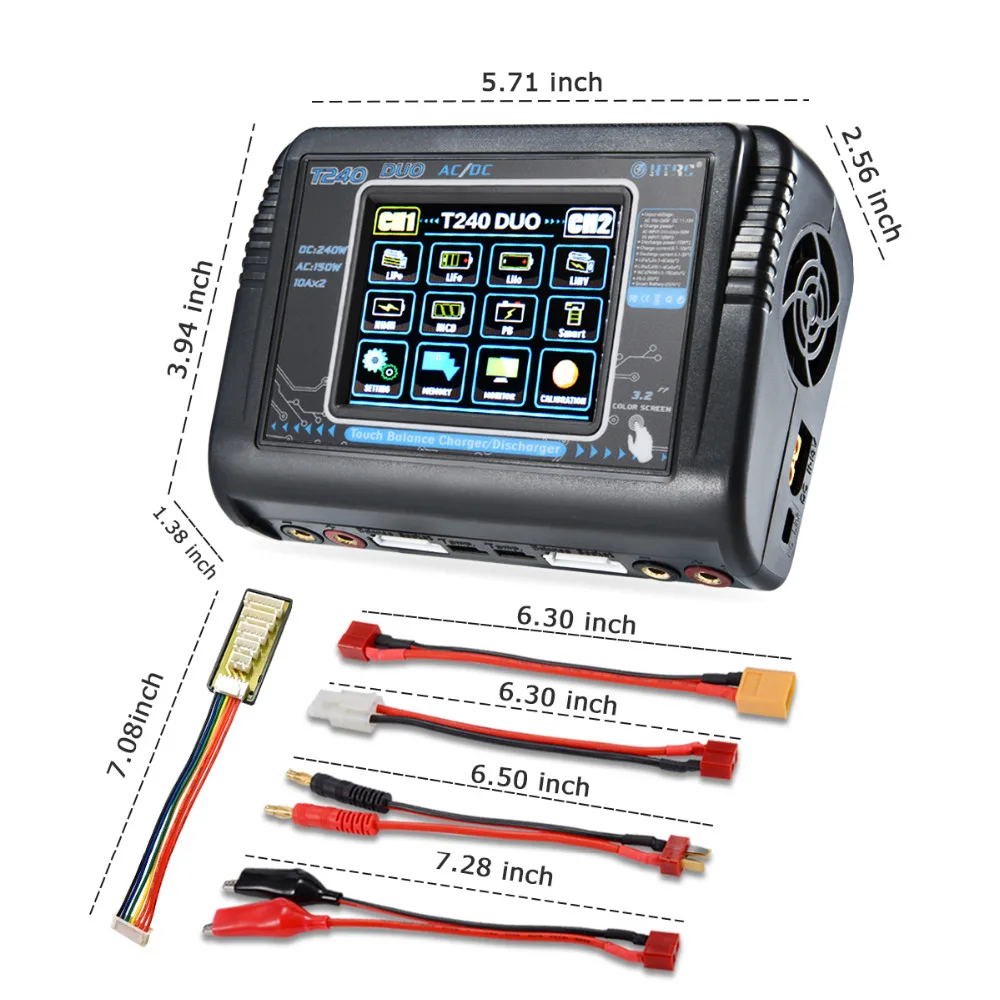

Dimension:145*105*64mm
Package size:215*155*75mm

C240

C150 :

Input: AC 100-240V / DC 11-18V

Charge power:Max 150W
Discharge power:10W
Charge current range:0.1-10A
Discharge current range:0.1-2A
Lilon/LiPo/LiFe/LiHV cell count :1-6cells
NiCd/NiMH battery cell count:1-15cells
PB Battery voltage:2-20V
Smart battery:I/II/III
Current drain for balancing: 500mA/cell
Dimension:145*105*64mm
weight:0.9kg
Package size:215*155*75mm

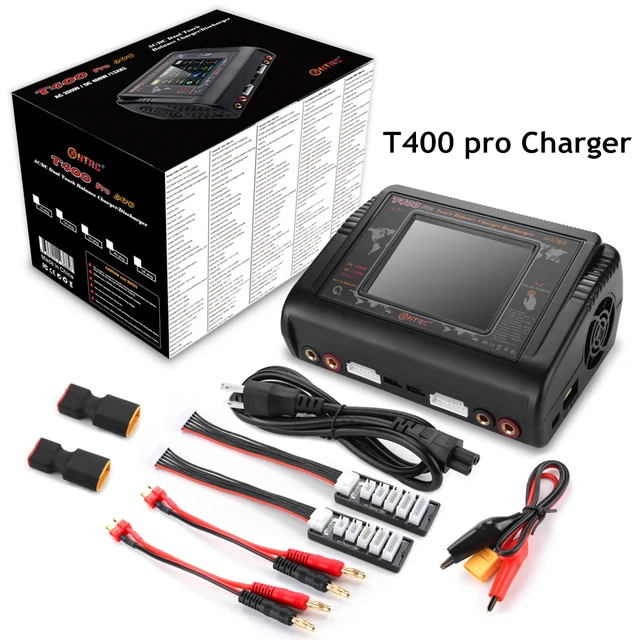

T400 :

• AC input:100-240V

• Charge power: AC mode 200W (CH1+CH2=200Watt),

• DC mode 200W*2 =400W

• DC Input: 10-18V

• Discharge power: 10W*2

• Smart battery: I/II/III*2

• Charge current range: 0.1-12A *2

• PB Battery voltage: 2-20V*2

• Lilon/LiPo/LiFe/LiHV cell count : 1-6cells*2

• Current drain for balancing: 500mA/cell

• Dimension: 145*105*64mm

• Package size: 215*155*75mm

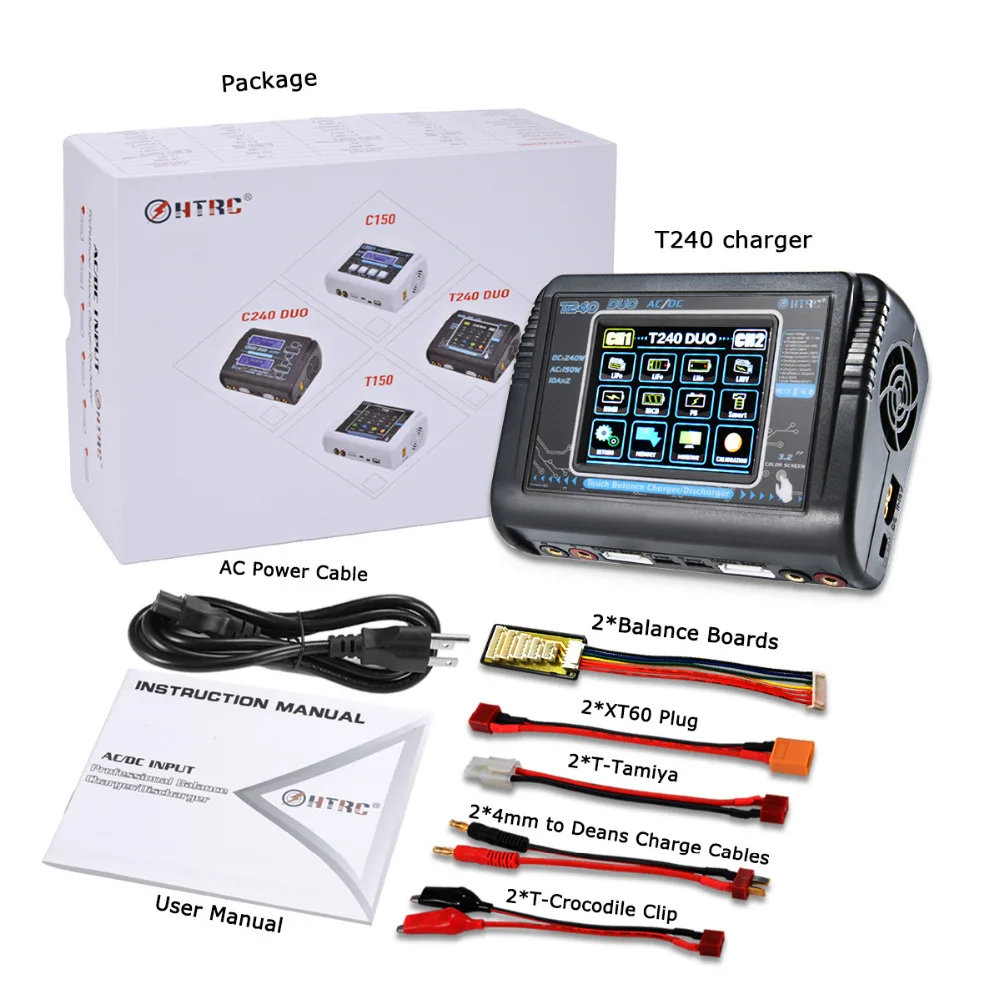

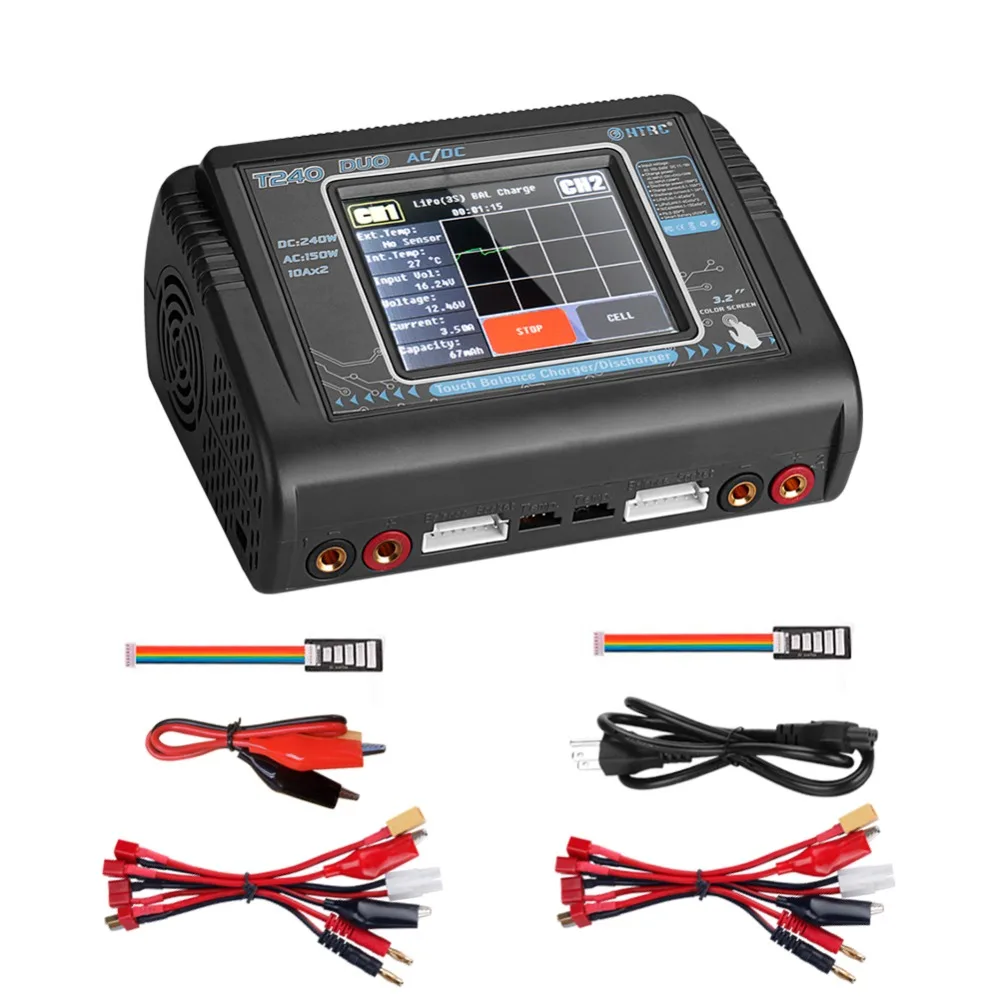

T240/C240 Package list:

1x T240/C240 charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2x balance board with pin cord
2 x Extension cable T-plug to Tamiya  (new added)
2 x Extension cable T-pplug to crocodile clip (new added)
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User’s Manual

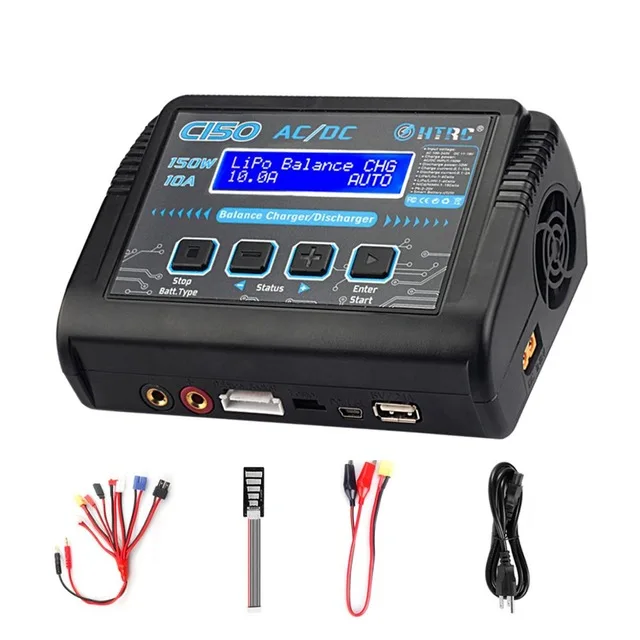

C150 Package list as picture:

Link :https://www.aliexpress.us/item/2251832827552937.html?spm=a2g0o.detail.1000023.13.27f32e82H09xoB&gatewayAdapt=glo2usa4itemAdapt&_randl_shipto=US

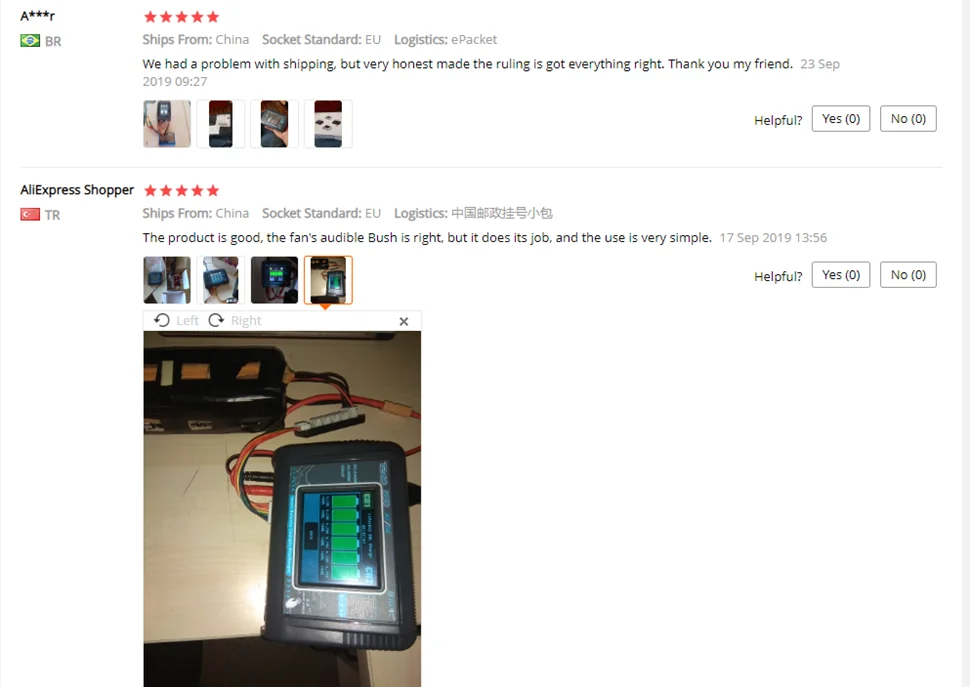

Buyer’s 5 Stars Feedback

HTRC T240 DUO AC 150W /DC 240W Touch screen Dual Channel 10A RC Balance Charger discharger for LiPo LiHV LiFe Lilon NiCd NiMh Pb battery

T240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 3.2 inch color LCD Toch screen display,easy operation,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.

It can support power distribution in AC mode,total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.

Features:
*Compact touch screen charger, easy operation.
*Full plastic shell, safe, beautiful.
*Twin-channel,charge two different kinds of batteries simultaneously.
*high power,single port max 150W.support power distribution.
*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Lithuim batteries cells counts
*Adjustable digital DC Power.
*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.
*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-function:

-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell’s  voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)

-Calibration: cell voltage monitoring and calibration. (calibration function for 6s lithuim battery only)
-Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,low input voltage setting,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Firmware update.

2x balance board with pin cord
