HTRC iMAX B6 80W RC Charger for Lipo NiMh Li-ion Ni-Cd Battery Charger RC B6 Charger Lipro Discharger Digital Balance Charger

Description

IMAX B6 Lipo Balance Charger

Note:

1.There are two types for choose: b6 no adapter and b6 with adapter,you can choose as you want.

2.This imax b6 is HTRC brand and produced by HTRC,HTRC is a factory which focus on the production of high quality chargers. Not Other Brand ,Not Fake ,We have not need Security Code .If you mind it ,please not buy ,thanks!

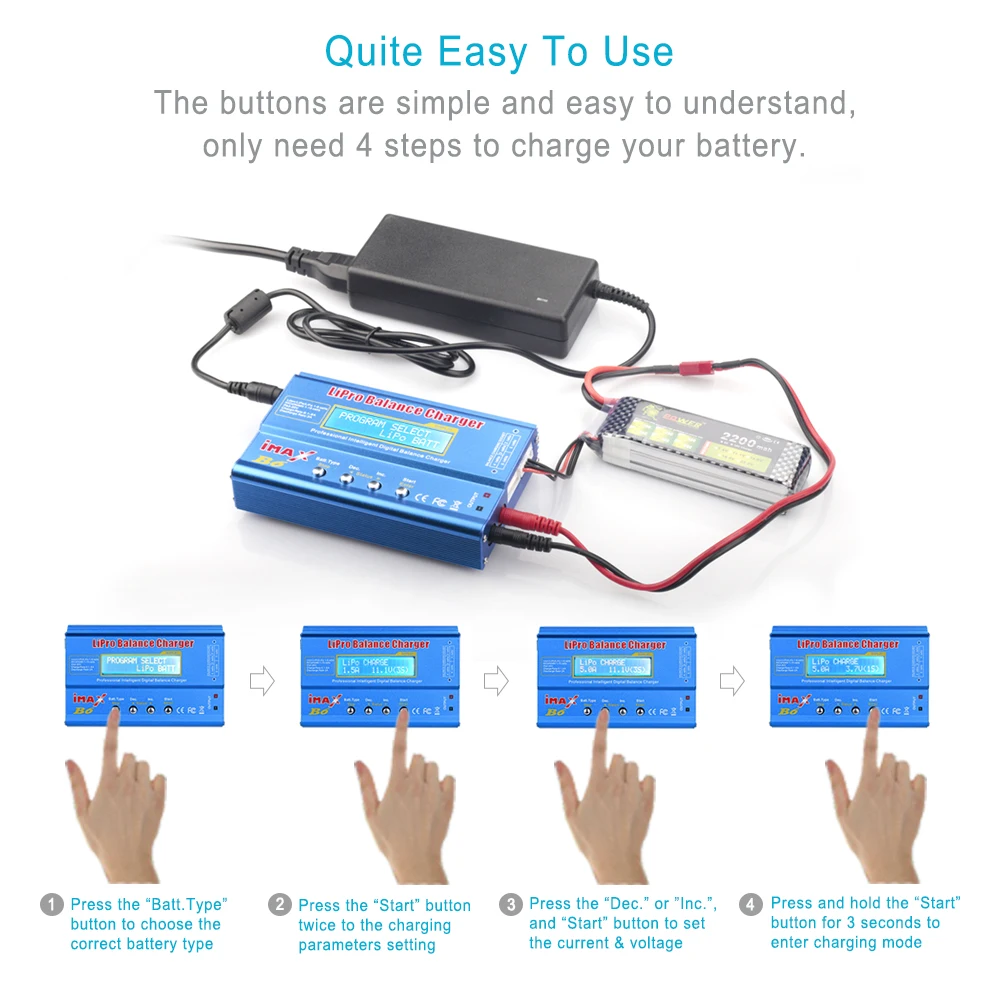

3.After you received the goods,please follow the using turn

(1.plug in the adapter firstly,then plug the machine)if you plug the mahcine firstly, then plug the adapter that will caused it can not open or work unnormally

If any problems ,please contact us ,thanks!

Description:

IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger

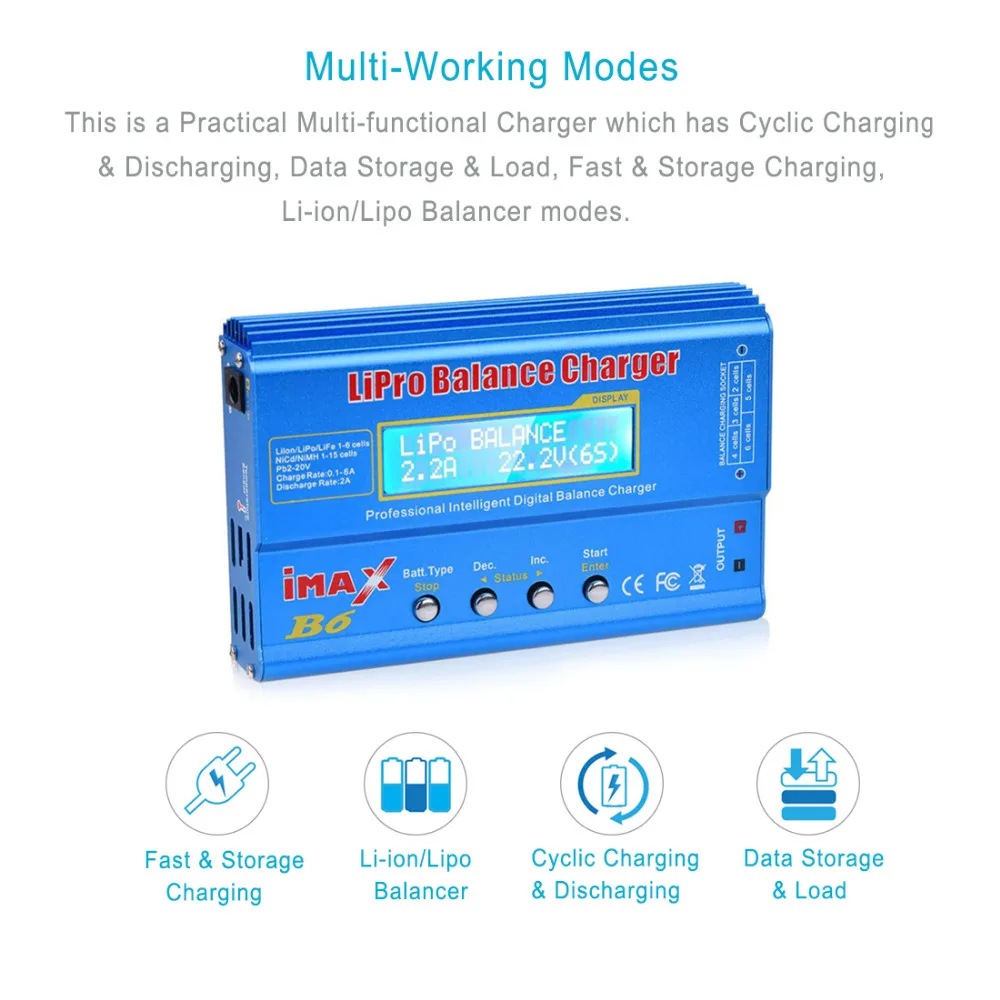

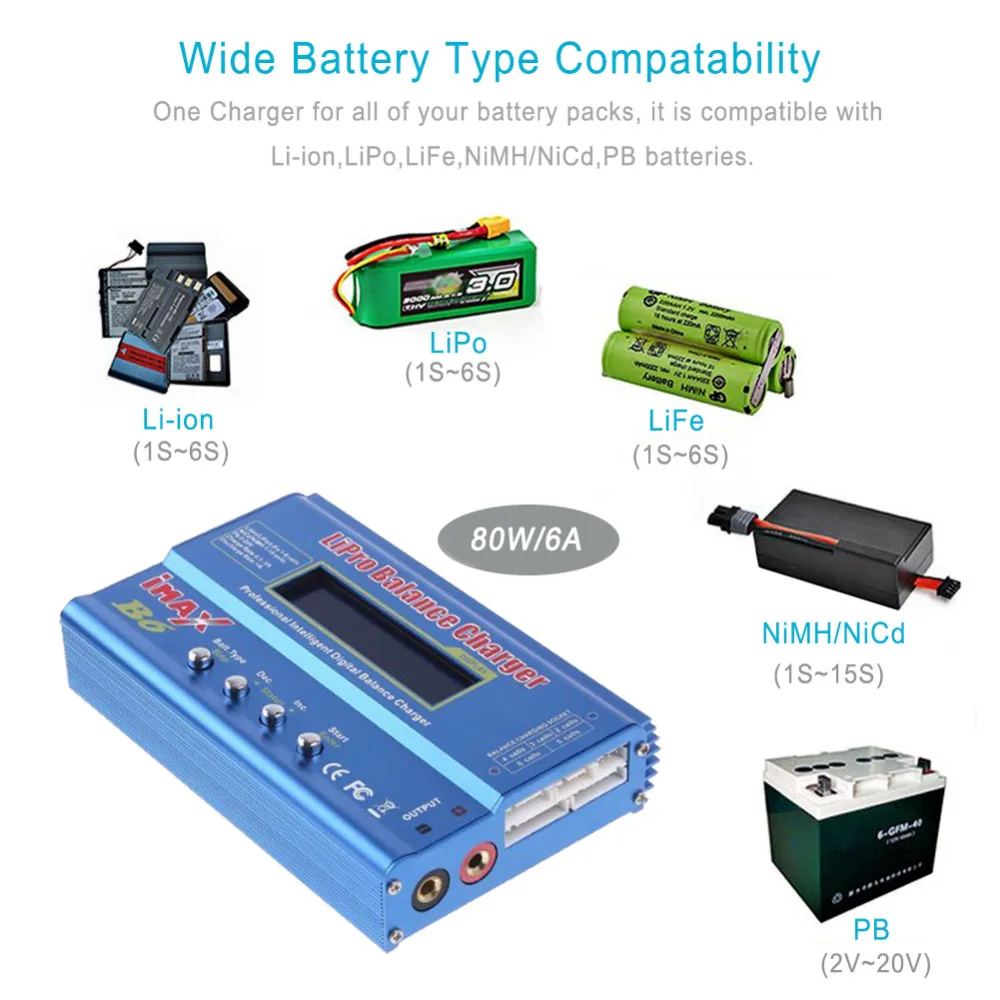

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for
Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries. It’s all-powerful in a way.

Feature:

1. Microprocessor controlled Delta-peak sensitivity.
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation  system (LiFe) battery

Specification:

* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)
* Circuit power: Max.charge power 50W / 80W / Max.discharge power 5W
* Charge Current Range:50W 0.1~5.0A / 80W :0.1-6.0A
* Discharge current range:50W 0.1-1.0A / 80W:0.1-2.0A
* Current drain for balancing Li-po: 300mAH/cell
* LiIon/LiPo/LiFe cells : 1-6 cells
* NiCd/NiMH cells : 1-15
* Pb battery voltage: 2~20v
* Net Weight: 277g
* Dimensions: 133x87x33mm

15V 6A AC adapter:

Output : DC 15V 6A

Power:80W

Color: Black

DC Plug size:

-Inner diameter:2.5mm

-Outer diameter:5.1mm

Input : 100-240V AC 50/60Hz

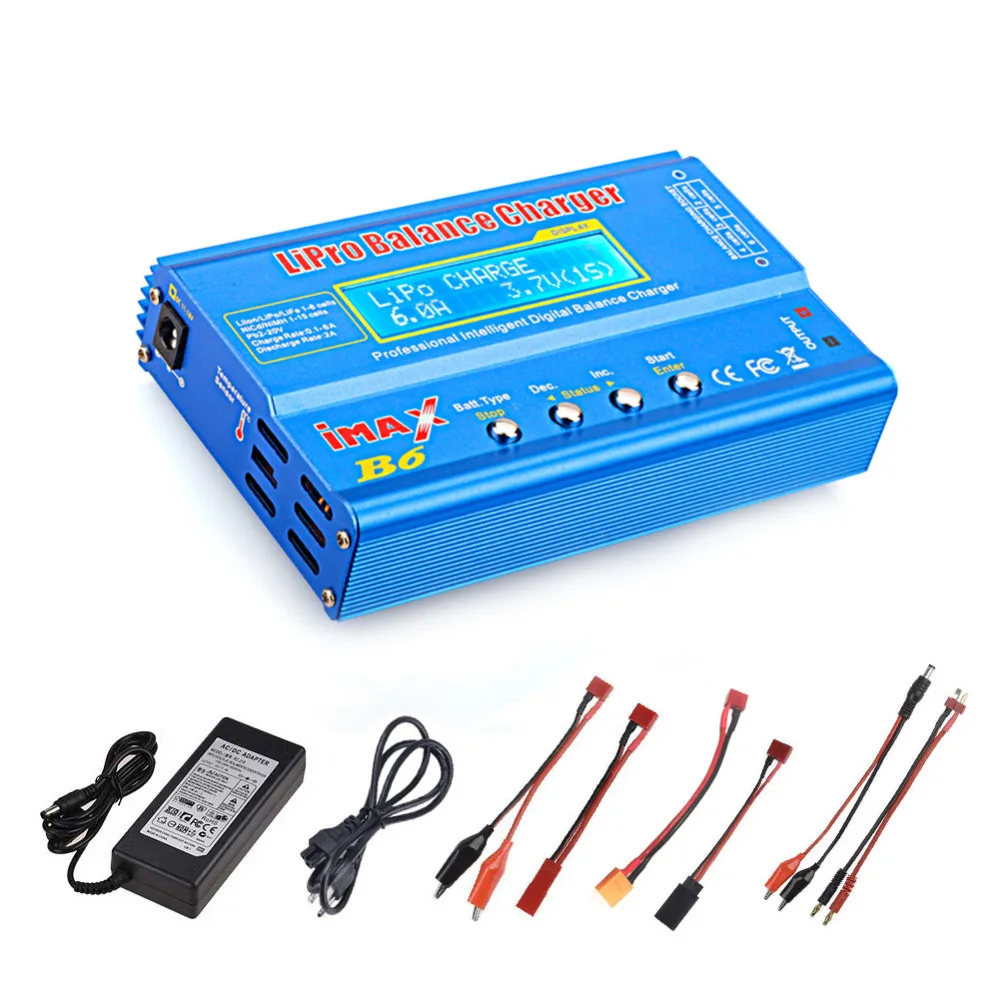

Package include:

1 x imax B6 LiPo battery balance charger

1 x charge cable with T-plug

1 x Multi-fuctional extension wire

1 x XT60 wire

1 x Universal crocodile clip

1 x JST plug

1 x Manual

1 x 15V 6A adapter  ( this is b6 with 15V 6A adapter, if need，please select  it accroding to picture  )
