HTRC iMAX B6 80W Battery Charger Lipo NiMh Li-ion Ni-Cd Digital RC Lipo Charger 15V 6A Adapter Balance Charger Discharger

EU plug /US plug /AUplug /UK plug Optinal ,

Please choose right ,if not sure ,please contact us !!

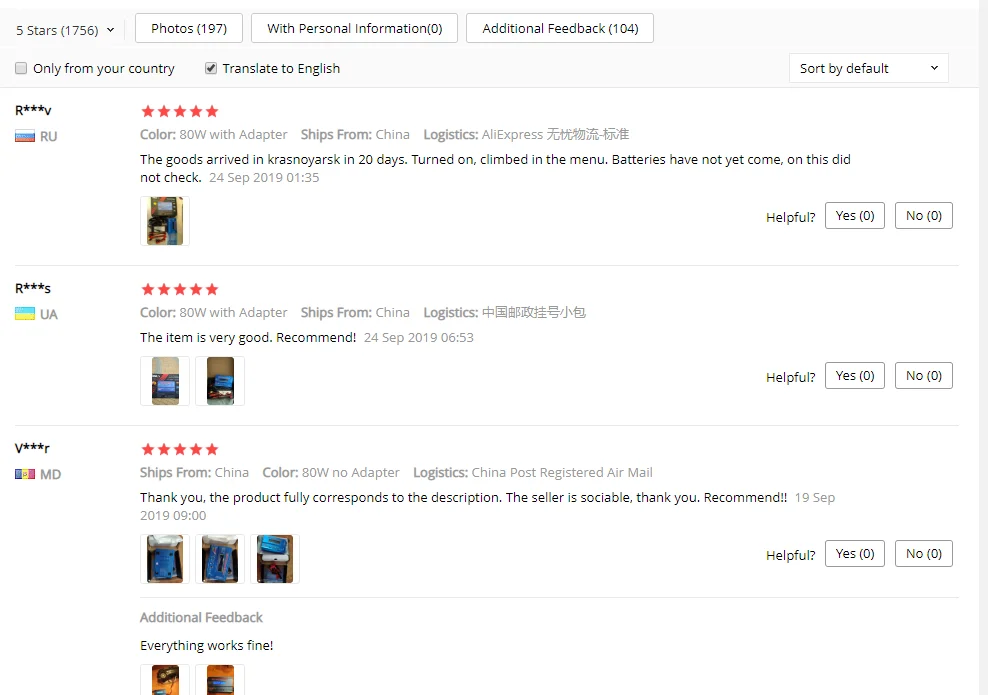

Feedback:

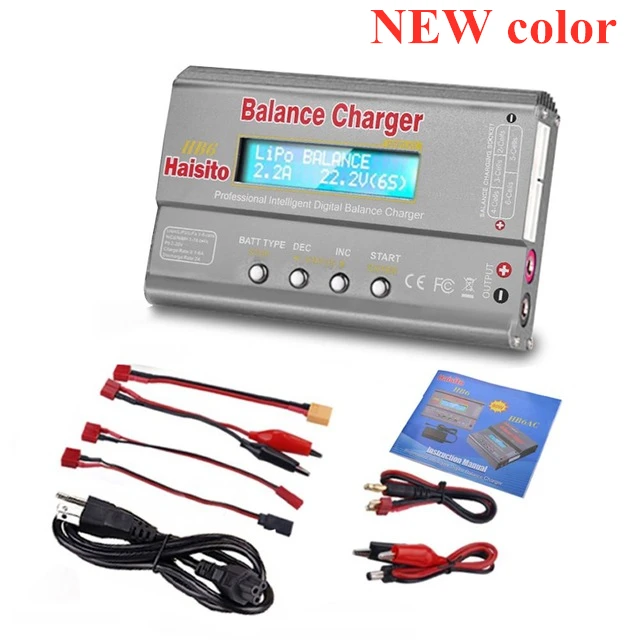

Dear customer,The HB6 is new color ,the function is same as htrc imax b6 !

In order to satisfy to color preferences of more customer

Description:

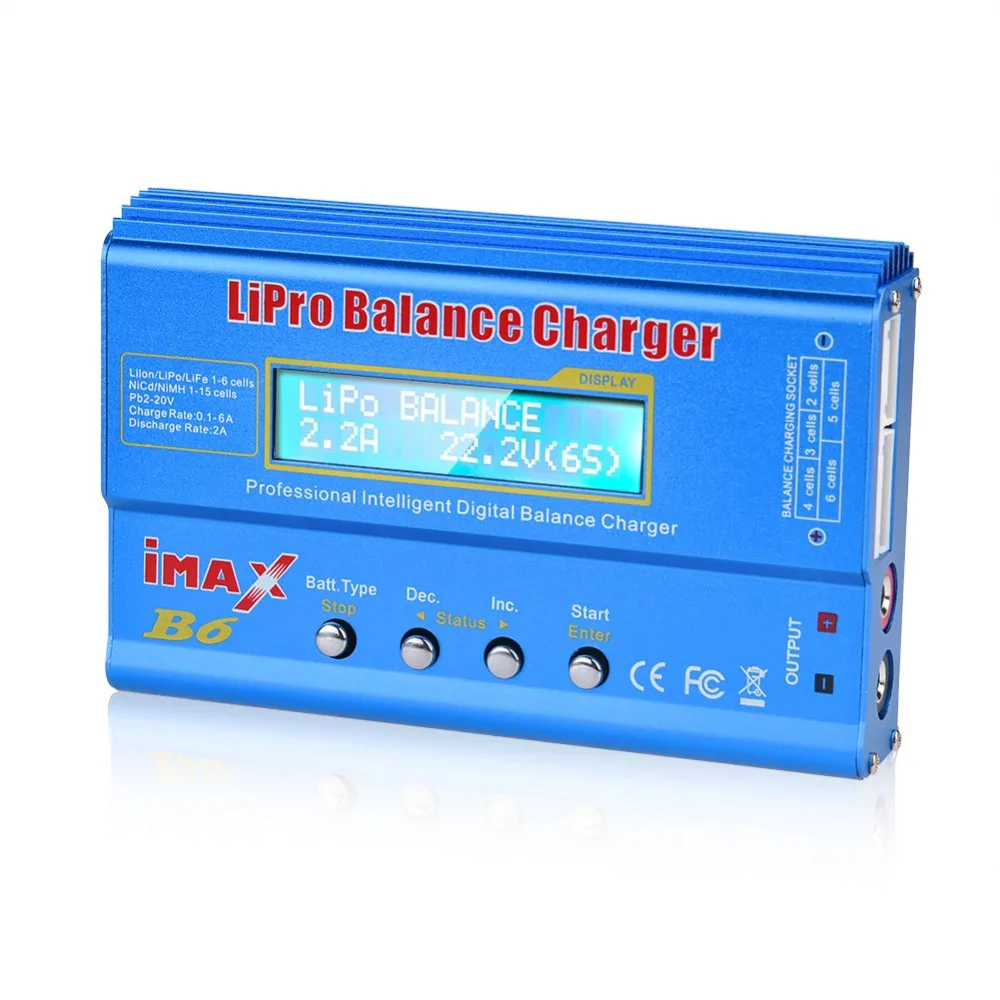

IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger

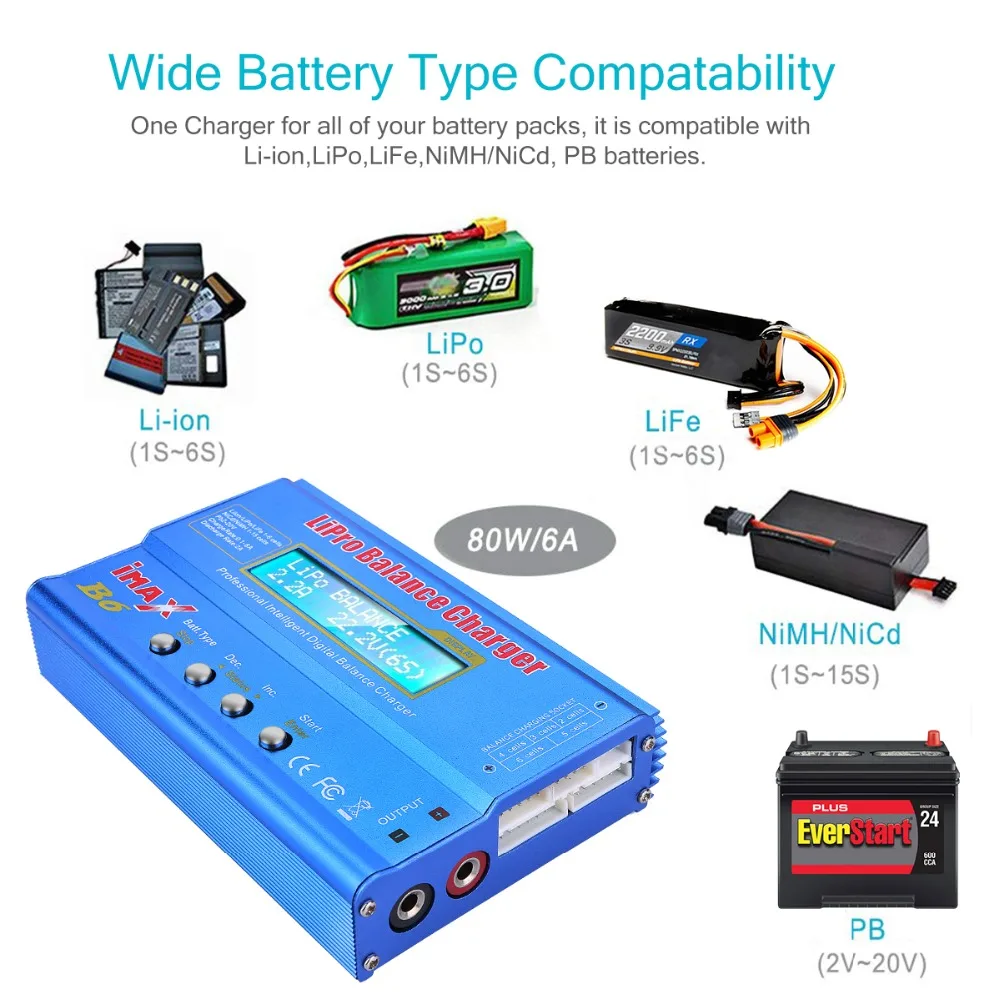

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for
Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries. It’s all-powerful in a way.

Feature:

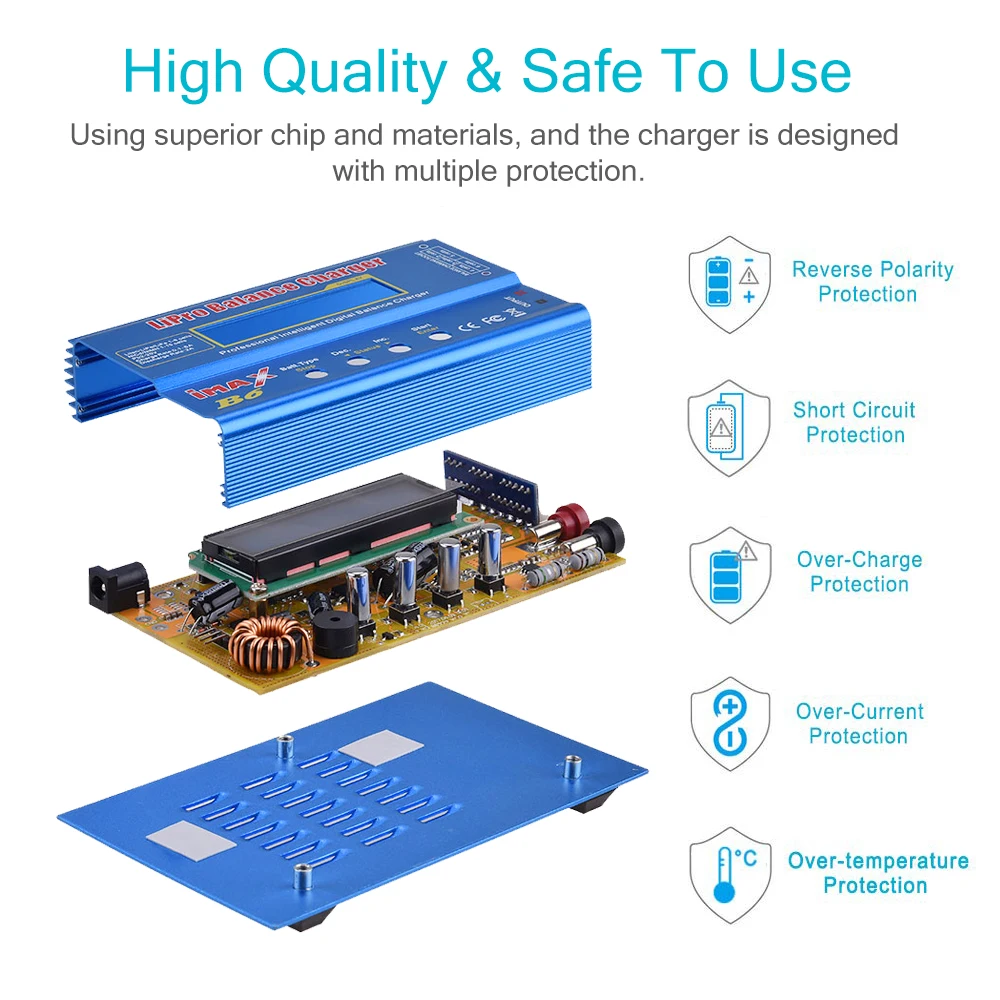

1. Microprocessor controlled Delta-peak sensitivity.
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation  system (LiFe) battery

Specification:

* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A)
* Circuit power: Max.charge power 50W / 80W / Max.discharge power 5W
* Charge Current Range:50W 0.1~5.0A / 80W :0.1-6.0A
* Discharge current range:50W 0.1-1.0A / 80W:0.1-2.0A
* Current drain for balancing Li-po: 300mAH/cell
* LiIon/LiPo/LiFe cells : 1-6 cells
* NiCd/NiMH cells : 1-15
* Pb battery voltage: 2~20v
*  Weight of charger : about 400g .Weight of adapter: about 400g ,

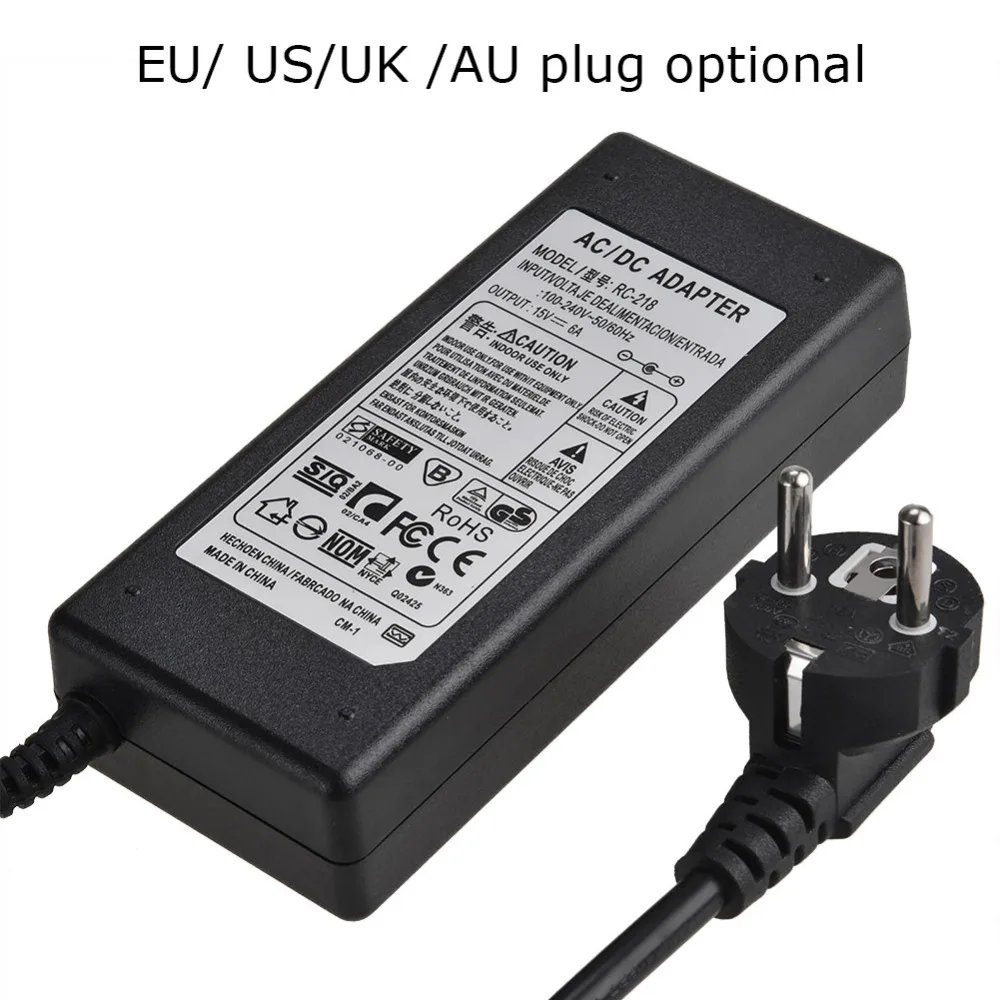

15V 6A AC adapter:

Output : DC 15V 6A

Power:80W

Color: Black

DC Plug size:

-Inner diameter:2.5mm

-Outer diameter:5.1mm

Input : 100-240V AC 50/60Hz

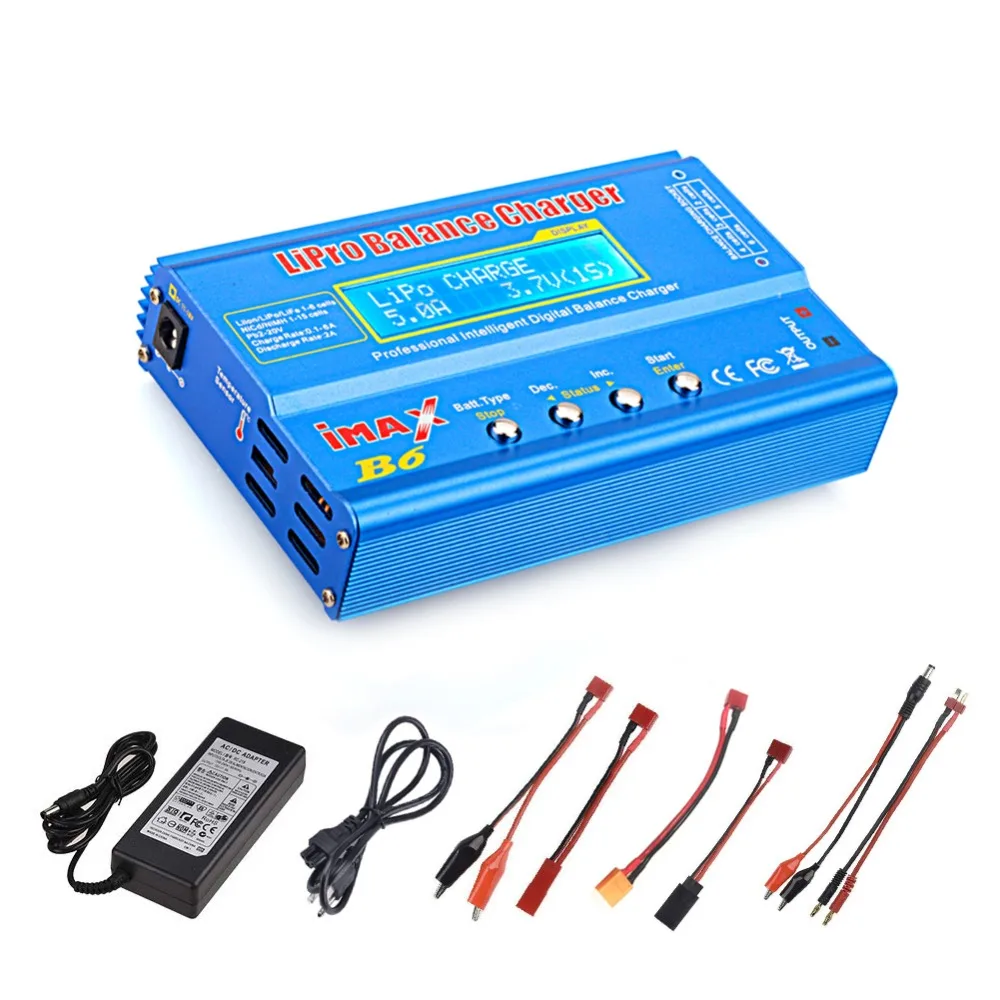

Package include:

1 x imax B6 LiPo battery balance charger

1 x charge cable with T-plug

1 x Multi-fuctional extension wire

1x XT60 wire

1 x Universal crocodile clip

1 x JST plug

1 x Manual

1 x 15V 6A adapter  ( please select  it accroding to picture ,if choose no adapter ,it will not including  )

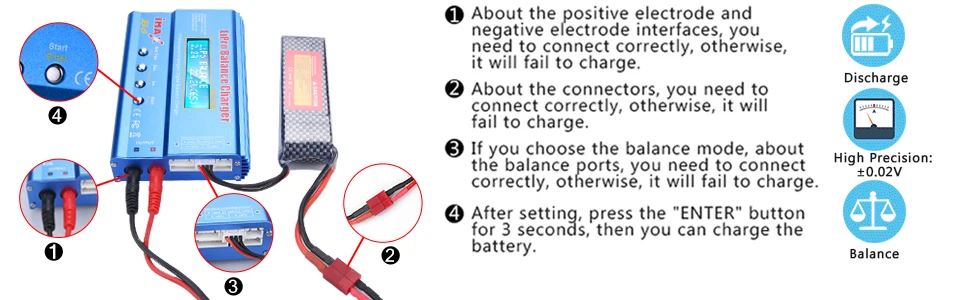

1.About the positive electrode and negative electrode interfaces,you need to connect correctly,otherwise,it will fail to charger.

2.About the connectors,you need to connect correctly,otherwise,it will fail to charger.

3.If you choose the balance mode about the balance ports ,you need to connect correctly ,otherwise,it will fail to charger

4.After setting ,press the "ENTER"button for 3 seconds,then you can charge the battery .

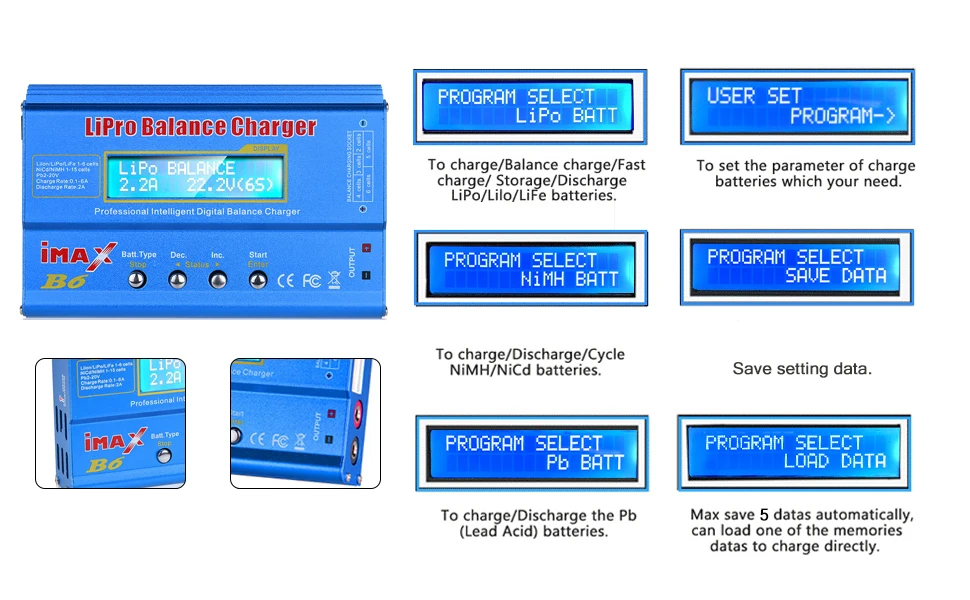

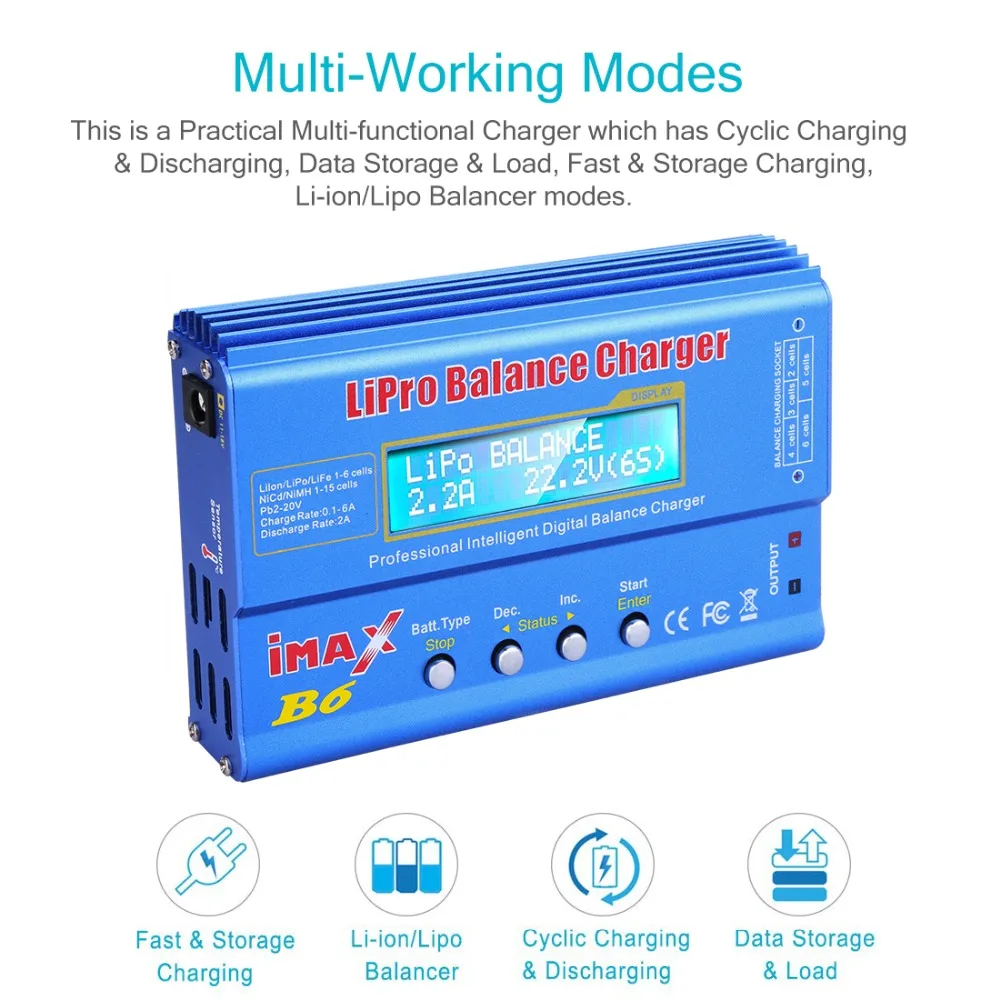

1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries

2.USER SET PROGRAM: to set the parameter of charge batteries which you need .

3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries

4.PROGRAM SELECT SAVE DATA : save setting data

5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .

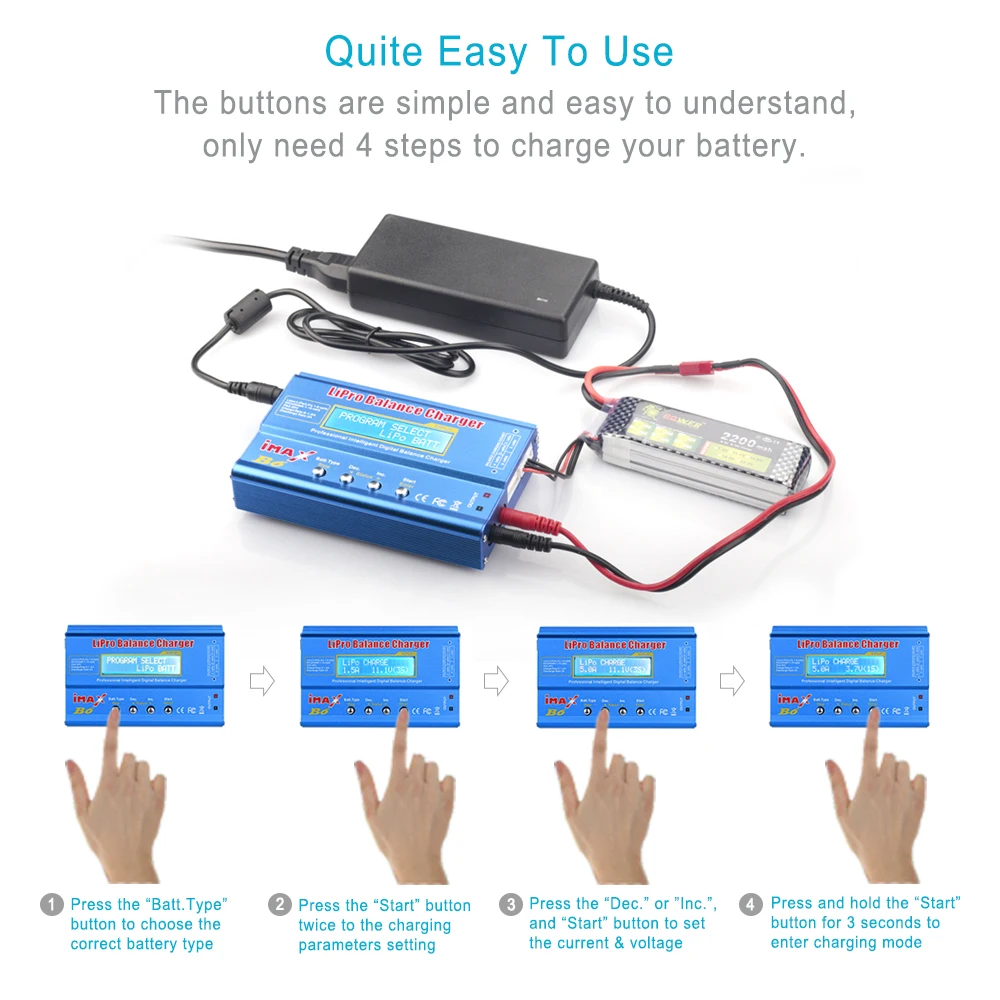

1.press the "battery type"button to choose the correct battery type

2.press the "start"button twice to the charging parameters setting

3.press the "dec."or "inc" and "start"button to set the current & voltage .

4.press and hold the "start"button for 3 seconds to entrt charging mode .
