Hot selling wall mounted split off grid solar air conditioner system with battery for home use
$7,114.85
200 in stock
Description
- Type: Power Tool Parts
- Origin: Mainland China
- Warranty: 5YEARS
- Free installation service: No
- Place of Origin: Henan, China
- Model Number: ZT-F100
- Application: Home, Commercial, Industrial
- Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
- Battery Type: NONE
- Controller Type: MPPT
- Mounting Type: Ground Mounting, Roof Mounting, Roof Mounting
- Load Power (W): Others
- Output Voltage (V): 240v
- Output Frequency: 60HZ
- Work Time (h): 24 hours
- Certificate: CE, CE
- Pre-sales project design: Y
- Product name: Solar air conditioner
- AC output: 220V 50Hz
- Function: Power Support
- Keyword: Solar Panel Systems Home Hybrid
- Grid Type: off grid
- Weight: 47kg
- Packing size: 890*360*300
- Payment term: TT
Product Description

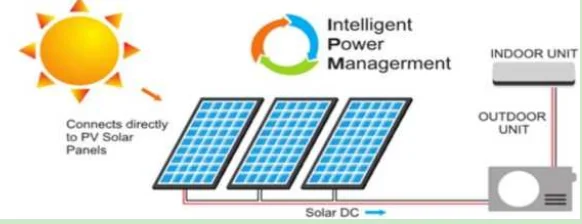

Working principle:
Systems with only the power management system, can directly use the solar energy panels electricity, don’t need inverter, manager and the battery charging, when solar power is greater than or equal to the air conditioning power consumption demand, the air conditioning system using solar power to run, when the photovoltaic power generation is less than the air conditioning power consumption demand, by the mains complementary, ensure air conditioning continuous operation.
Product feature
1: DC 48V direct power supply, no conversion process. 2: easy to install, and ordinary household air conditioning. 3: not affected by power supply and climate, used in all climate conditions. 4: Full DC control scheme (compressor, indoor motor, outdoor motor) system reliable operation

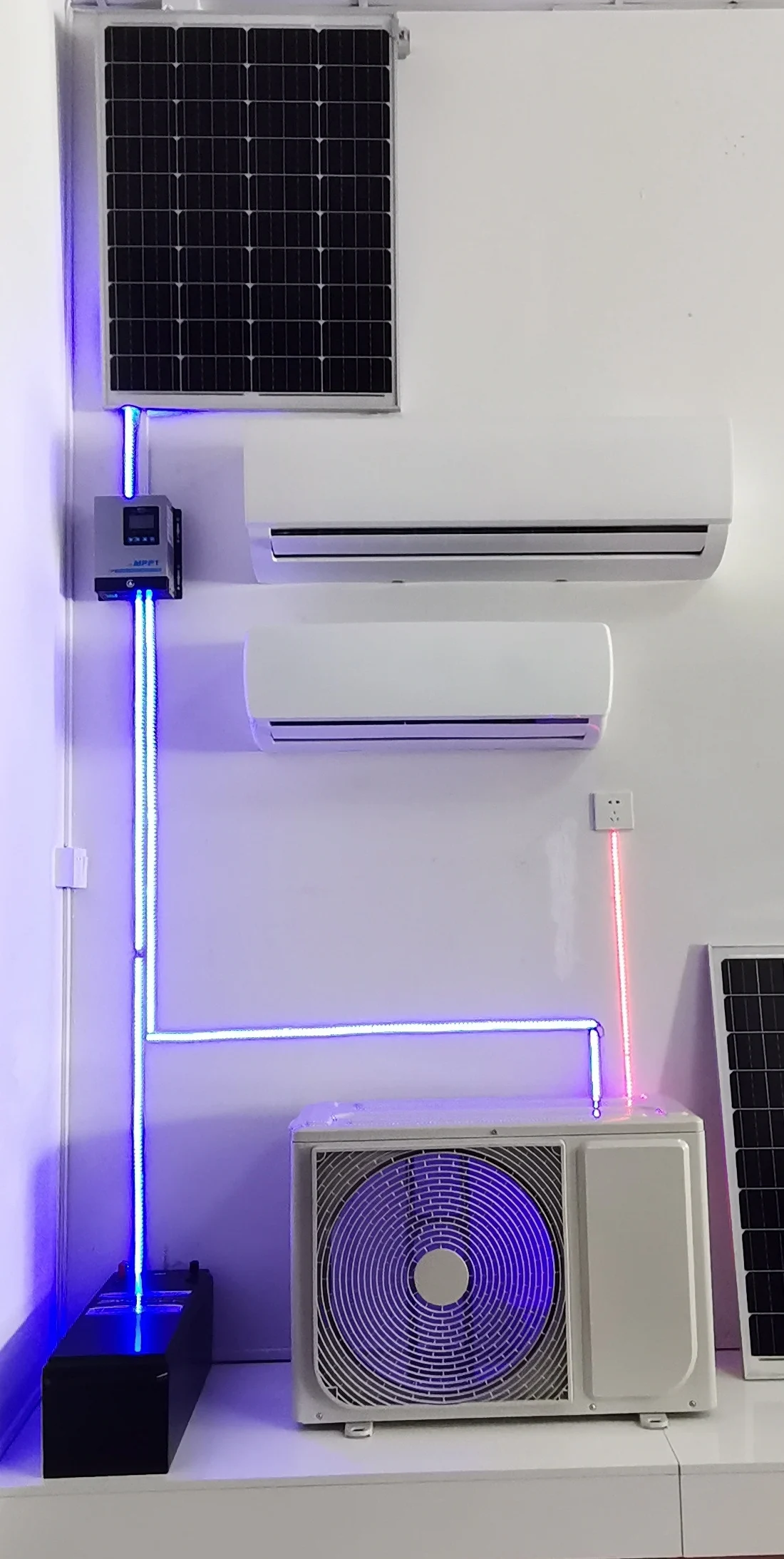

100% Solar drive air conditioner
Feature:
â—ŽFull use of Solar power to drive air conditioning in the case of no need for city power â—ŽWhen the photovoltaic power generation is not enough to operate at the full frequency of the air conditioner, the compressor frequency will be automatically adjusted to keep the refrigeration going â—ŽThe most economical solar air conditioner in off-grid condition â—ŽBuilt-in MPPT to track the highest PV power
Specification
|
Model Name:
|
Unit
|
ZT-26GW/BPS
|
ZT-35GW/BPS
|
ZT-50GW/BPS
|
ZT-70GW/BPS
|
|
Application Area:
|
m2
|
12-18
|
16*23
|
24-35
|
32*47
|
|
Cooling Capacity:
|
BTU
|
9000
|
12000
|
18000
|
24000
|
|
Cooling Input:
|
W
|
100-850W
|
110-1300W
|
140-1650W
|
240-1980W
|
|
Temperature Range:
|
°C
|
-10*52
|
-10-52
|
-10~52
|
-10*52
|
|
Compressor:
|
.
|
Rotory GMCC
|
Rotory GMCC
|
Rotory GMCC
|
Rotory GMCC
|
|
Refrigerant:
|
.
|
R410a
|
R410a
|
R410a
|
R410a
|
|
Indoor Noise:
|
dB(A)
|
32.7
|
32.7
|
35.1
|
31.5
|
|
Packing size(lndoor unit)
|
mm
|
780*270*360
|
830*270*360
|
995*305*380
|
1105*310*405
|
|
Packing size(outdoor unit)
|
mm
|
900*400*600
|
900*400*600
|
900*400*600
|
1063*457*780
|
|
Gross weight(lndoor unit)
|
kg
|
10.4
|
10.4
|
12.5
|
15.2
|
|
Gross weight(Outdoor unit)
|
kg
|
39
|
40
|
44
|
62
|
|
Warranty of machine:
|
year
|
2
|
2
|
2
|
2
|
|
Warranty of compressor:
|
year
|
5
|
5
|
5
|
5
|
Packing & Delivery
