BOGUANG ETFE OR PET Flexible Solar Panel Power 50W 80W 100W 120W 150W charging for 12V battery cars RVs yachts golf carts etc.

BOGUANG ETFE OR PET Flexible Solar Panel Power 50W 80W 100W 120W 150W charging for 12V battery cars RVs yachts golf carts etc.

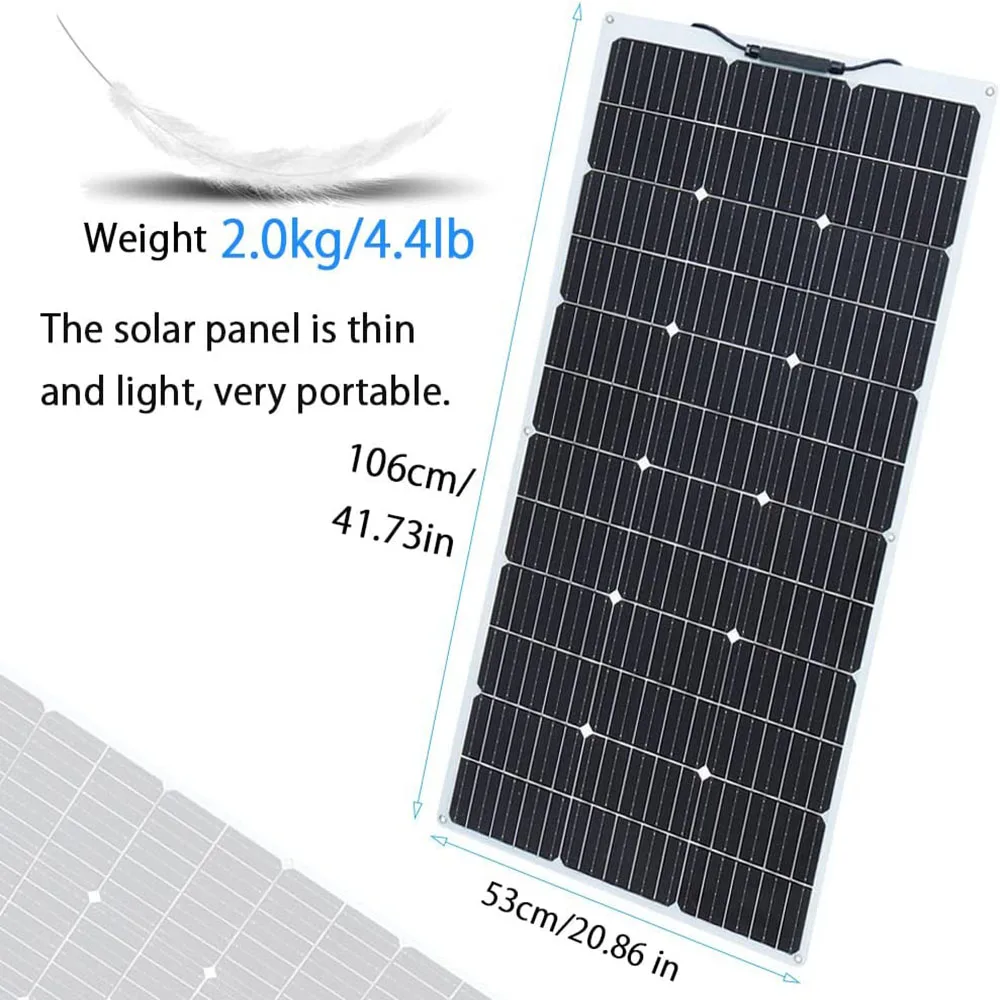

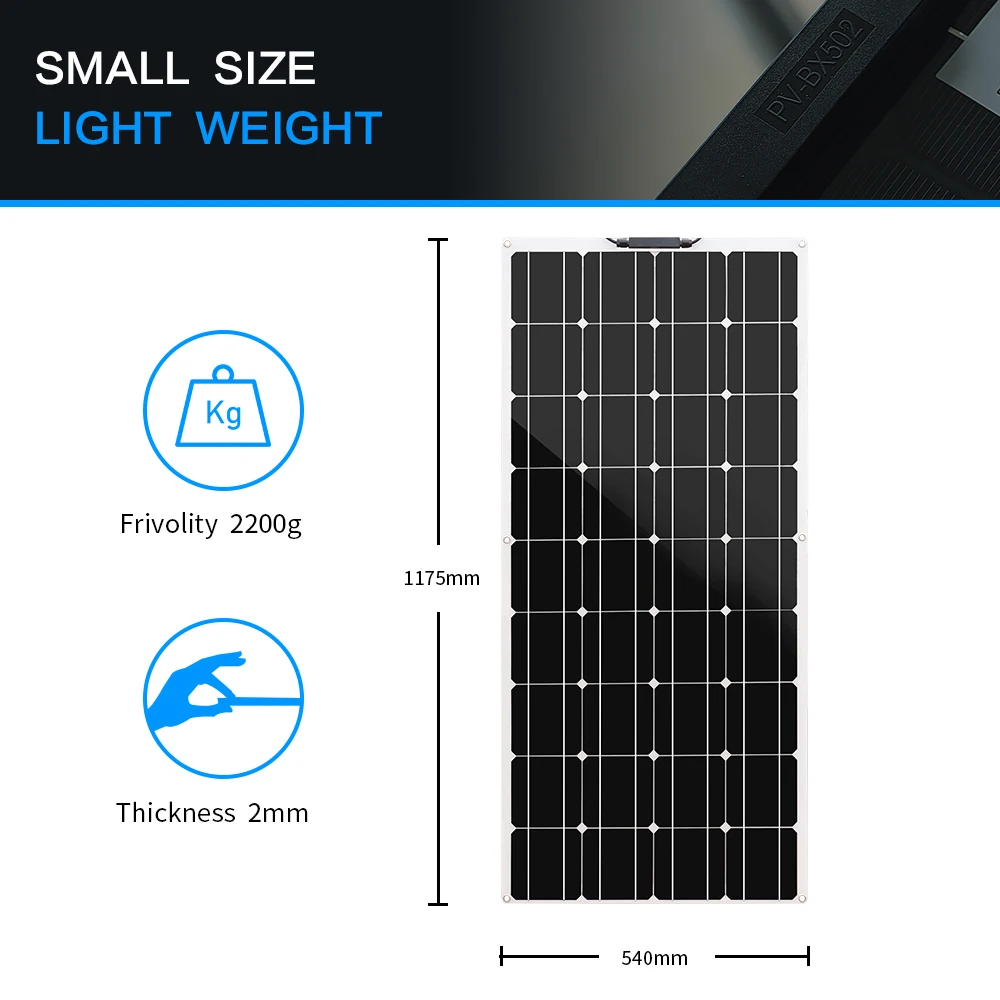

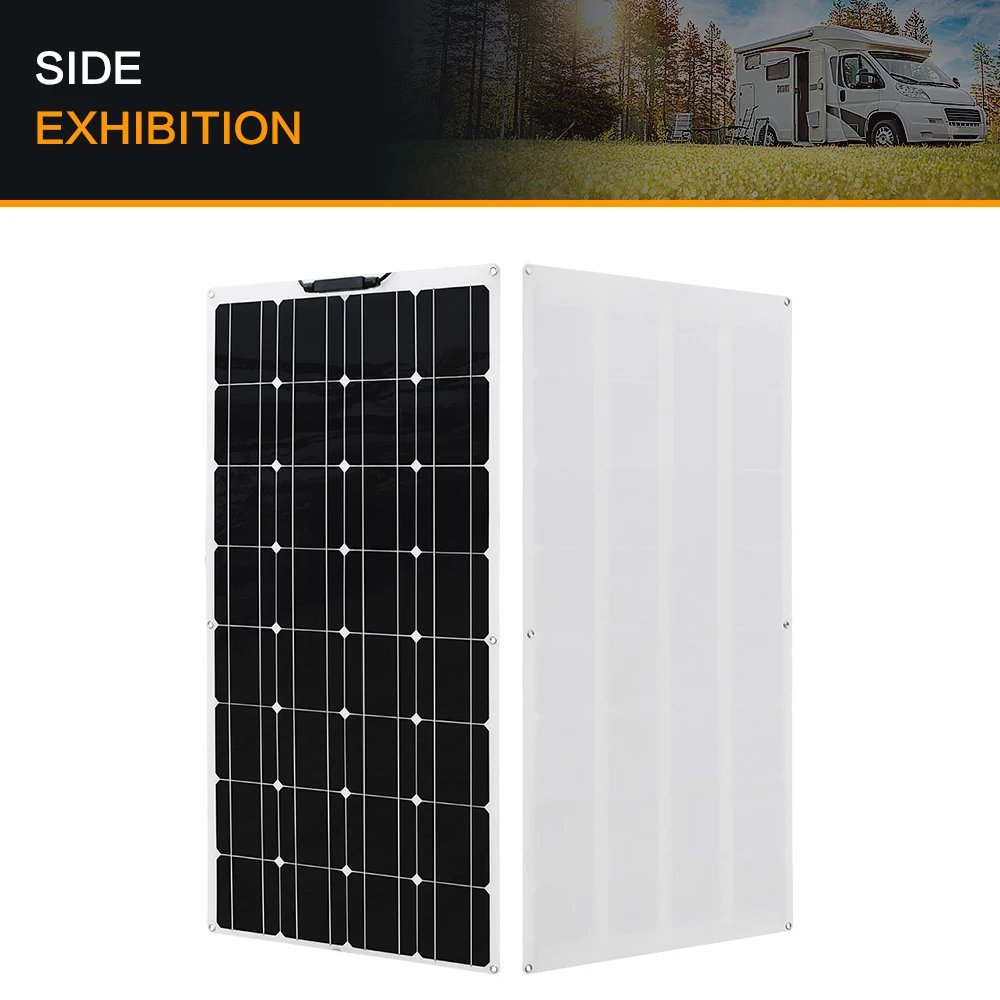

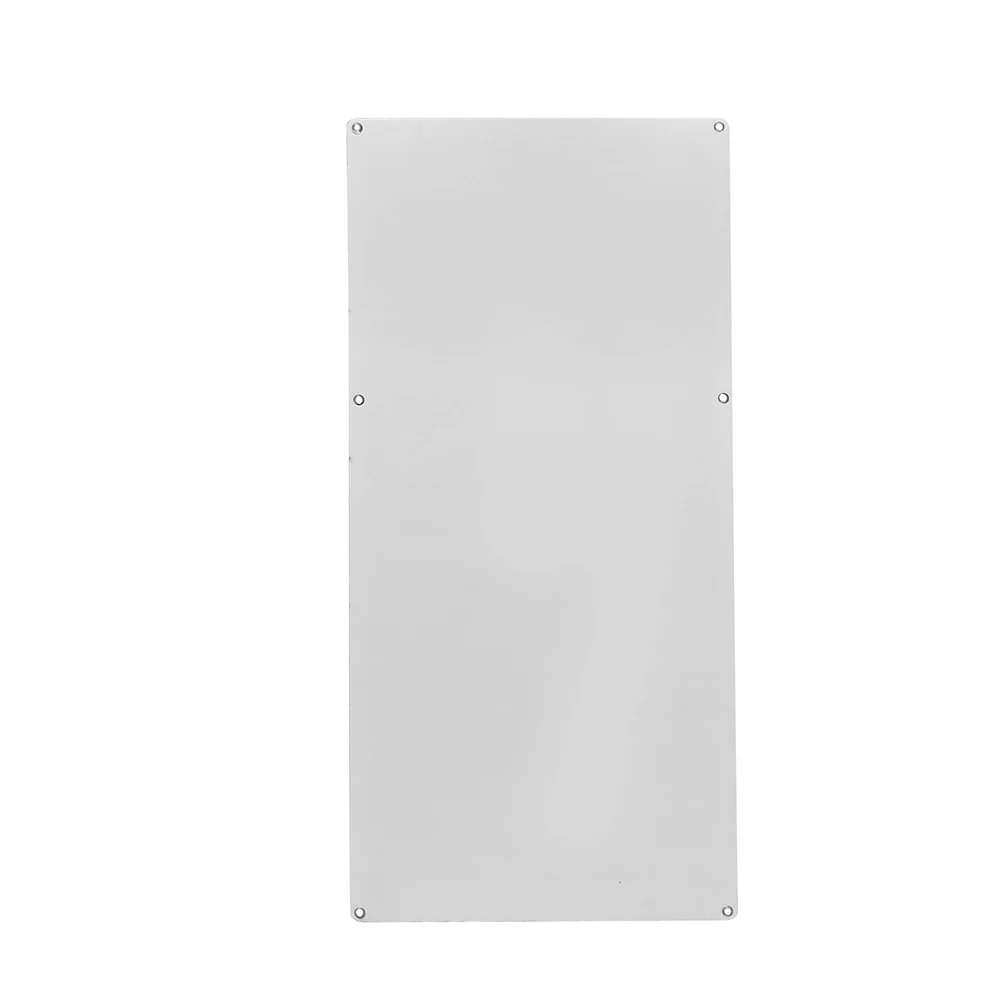

PET Flexible Solar Panel: 50W, 100W, 120W White PET Flexible Solar Panel is available for selection.

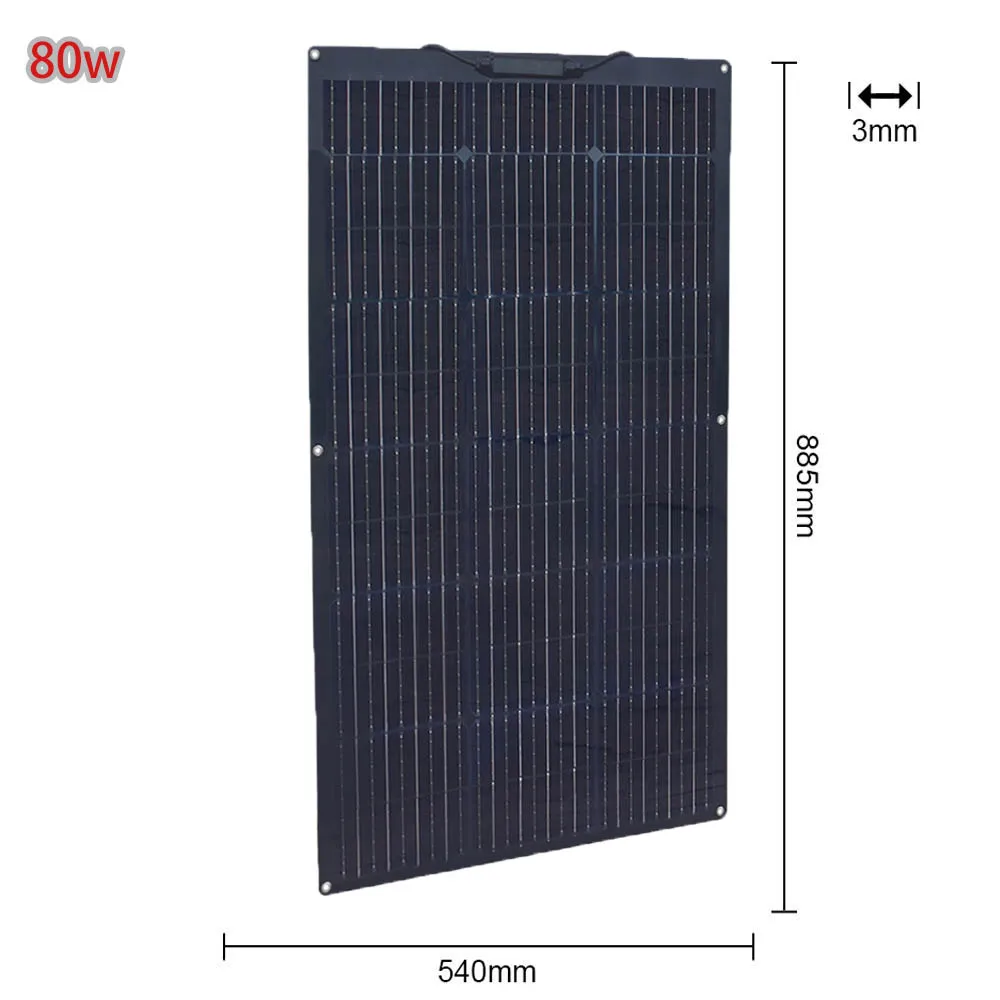

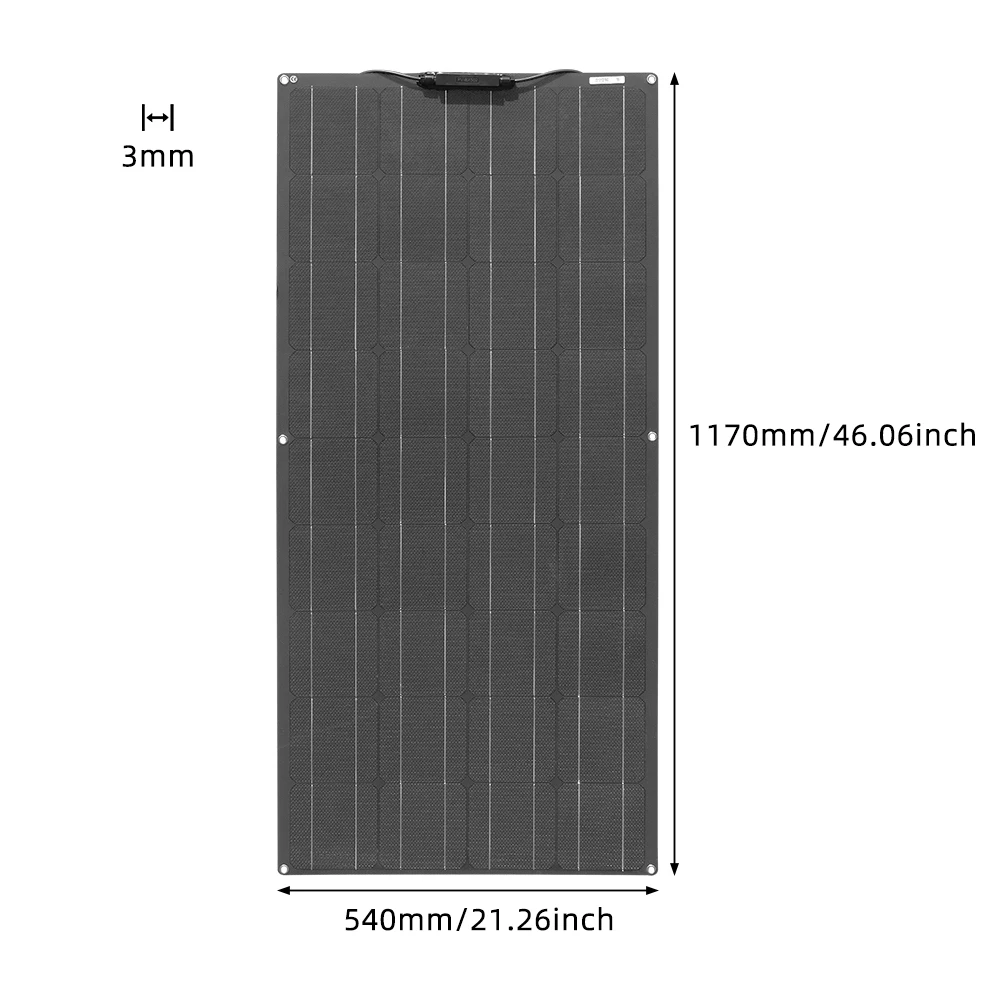

PET Flexible Solar Panel: 80W Black PET Flexible Solar Panel is available for selection.

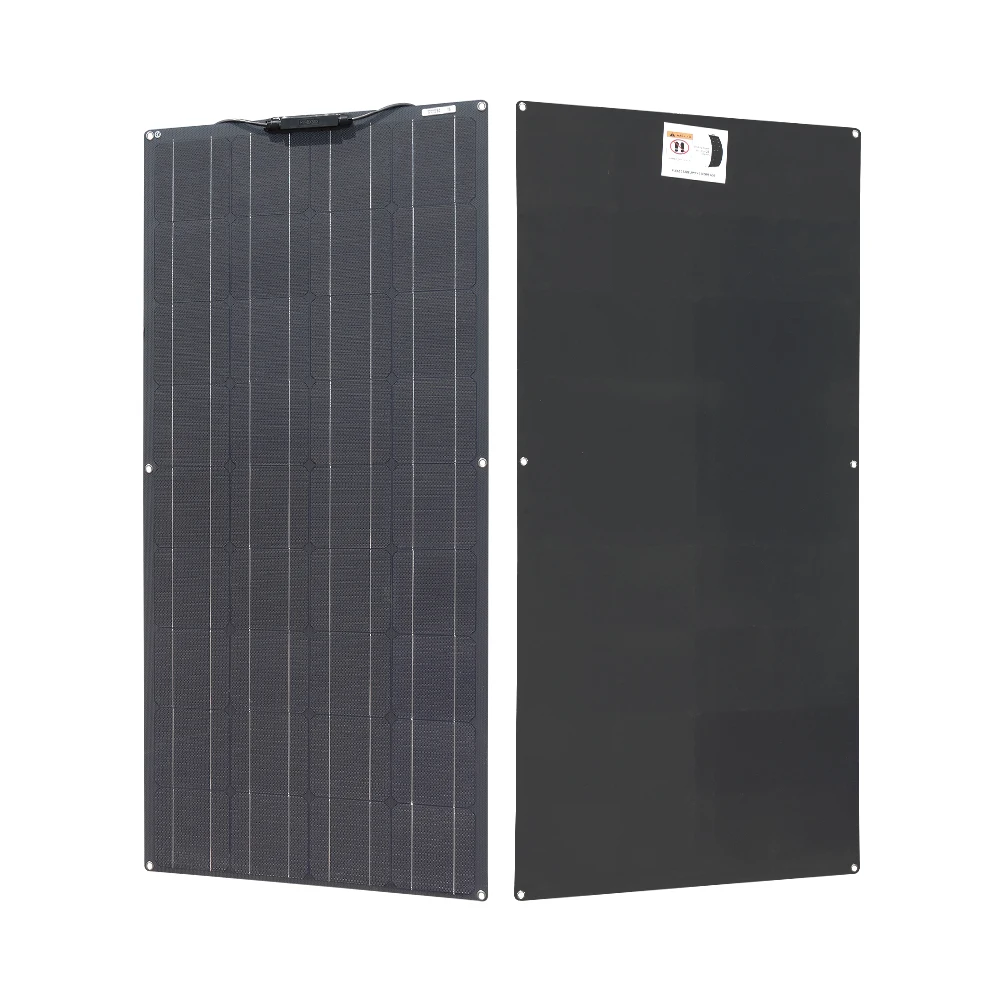

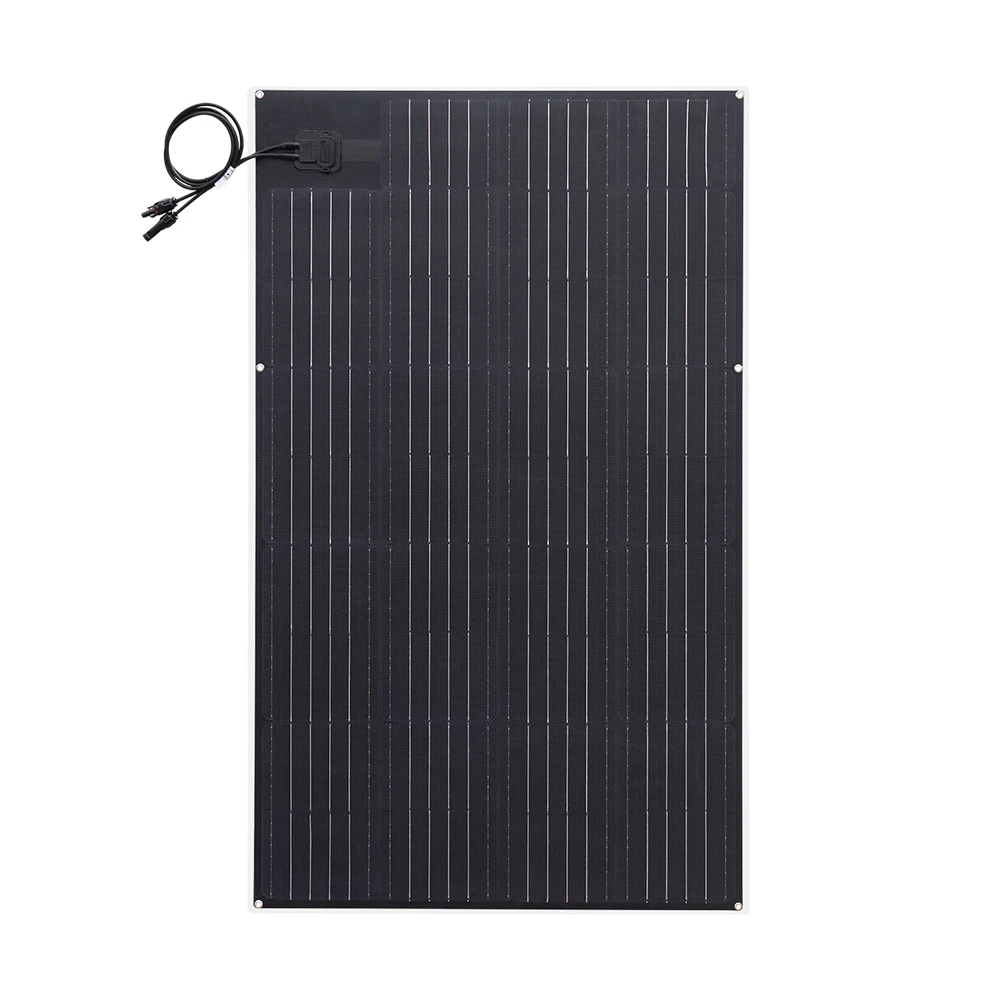

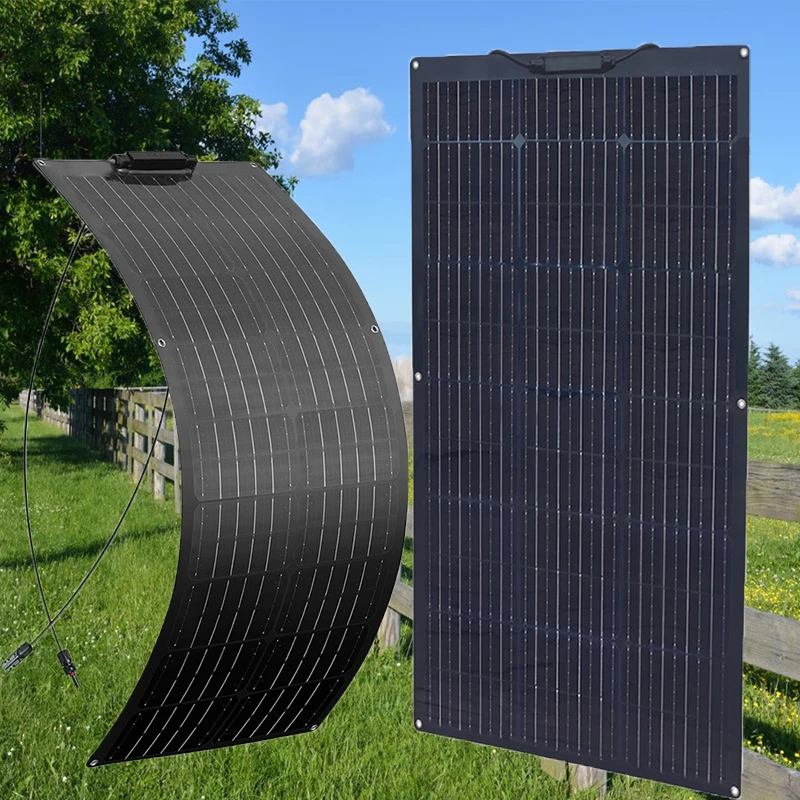

ETFE Flexible Solar Panel: 120W, 150W Black ETFE Flexible Solar Panel can be chosen.

19.25V 150W ETFE SOLAR PANEL Product specification

Maximum power(Pmax)150W

Output tolerance±5%

Maximum system voltage700V DC

Open circuit voltage(Voc)23.1V

Short circuit current(Isc)8.56A

Maximum power voltage(Vmp)19.25V

Maximum power current(Imp)7.79A

cell efficiency 24%

Solar panel efficiency 23%

Operating temperature（NOC

T）45±2℃

Temperature range-20℃～+80℃

Number of cells 35PCS

Weight3.63KG

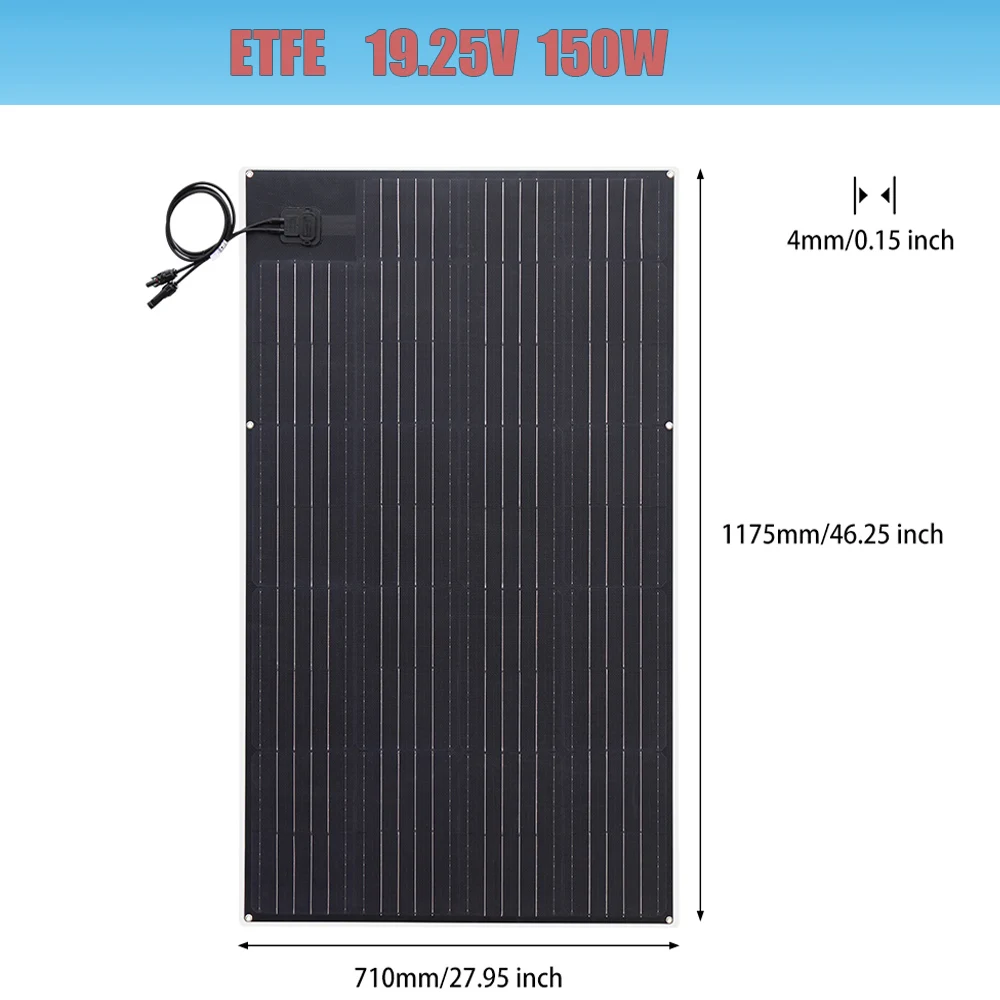

Size1175*710*4MM

Standard Test Conditionslrradiance 1000w/m2，Temperature 25℃,AM=1.5

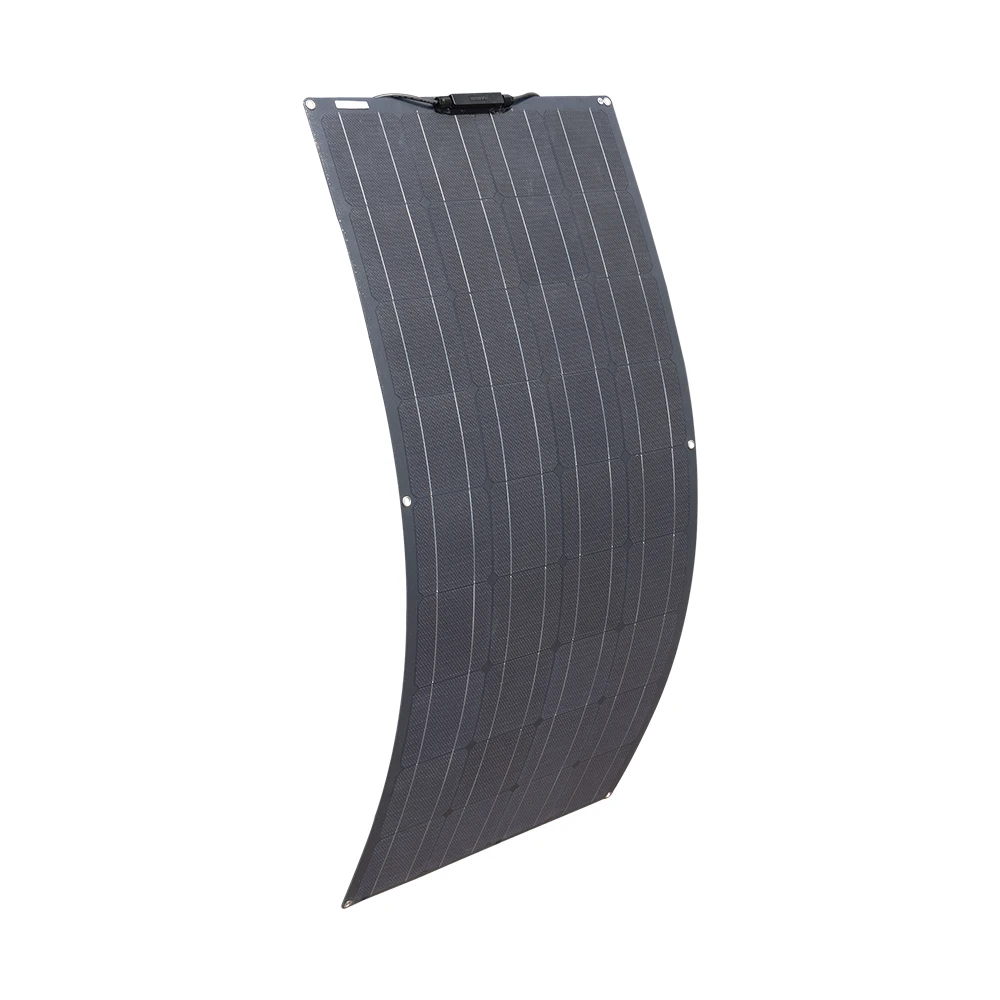

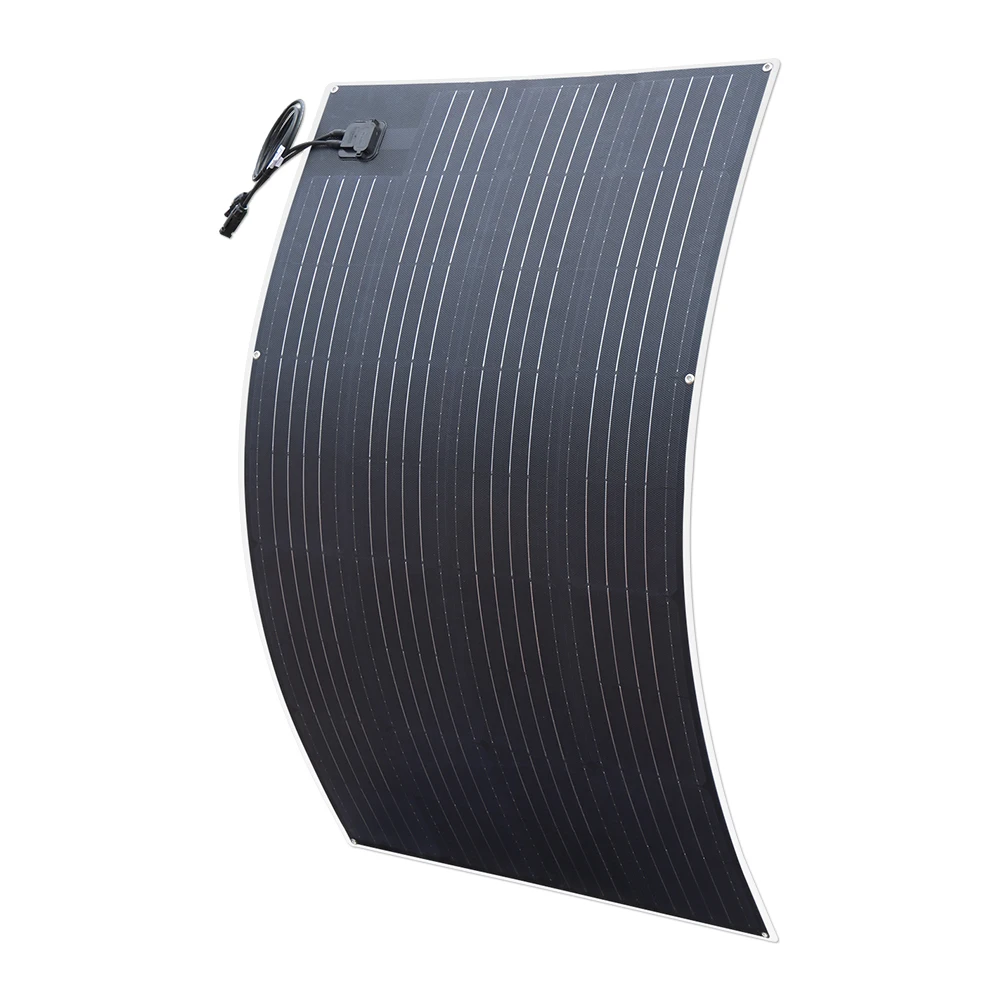

150W ETFE SOLAR PANEL Semi-flexible

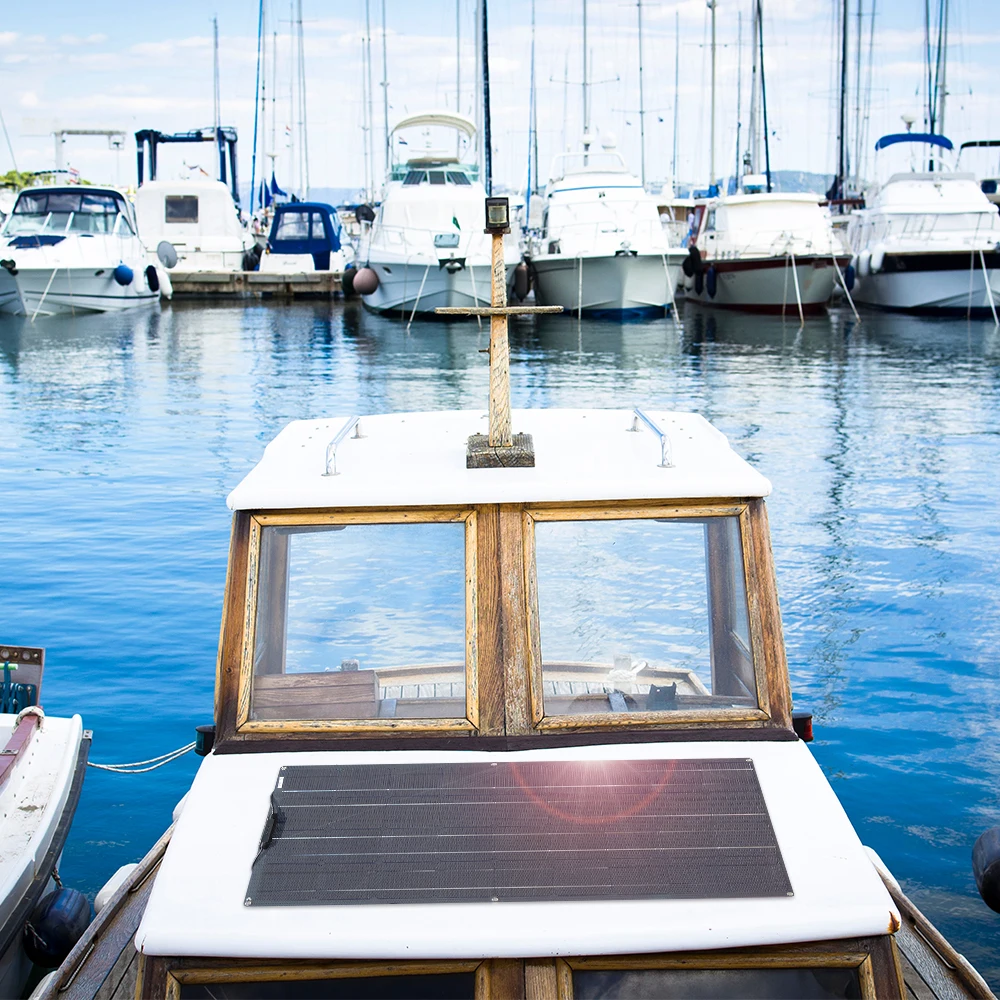

The output voltage is 19.25 V DC, which makes the module very interesting for a variety of application scenarios. In addition, it is easy to handle and much more slip-resistant than its operations, making it a perfect choice for marine and mobile areas.

150W high efficiency monocrystalline solar panel manufactured to the highest quality and performance standards

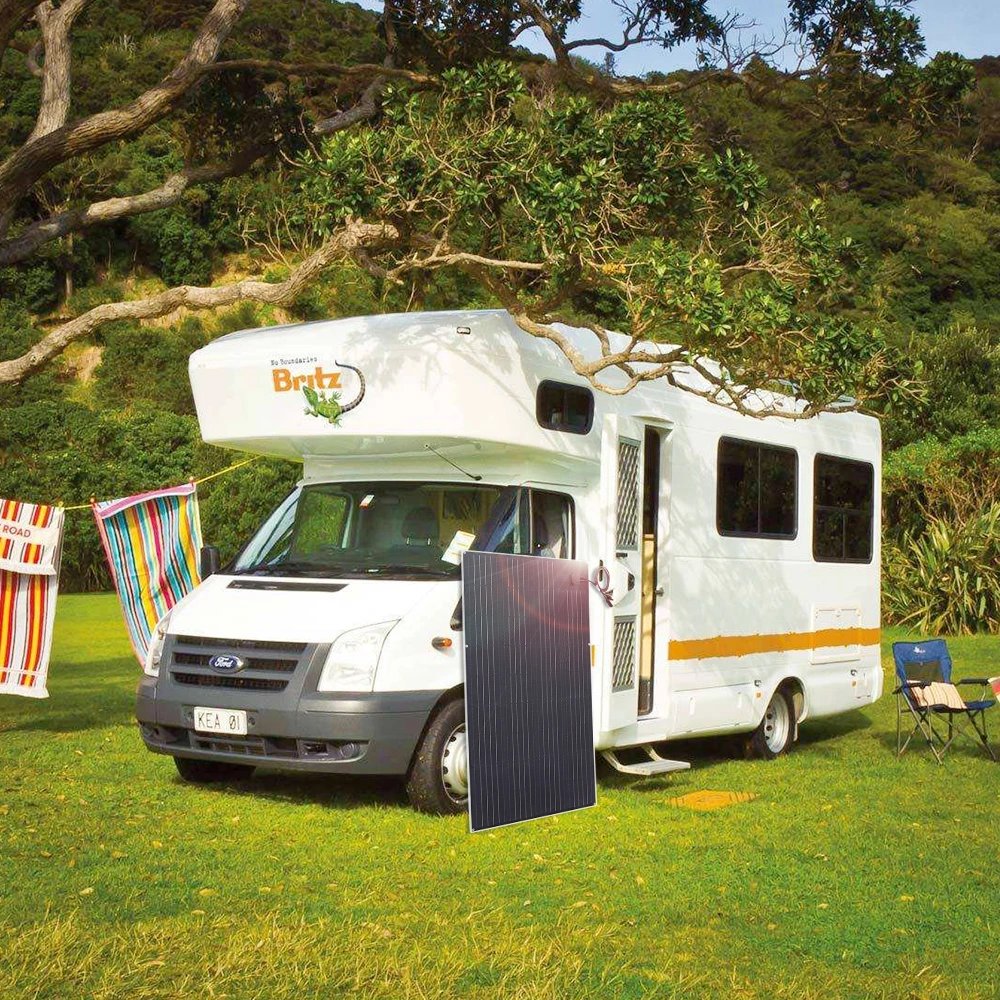

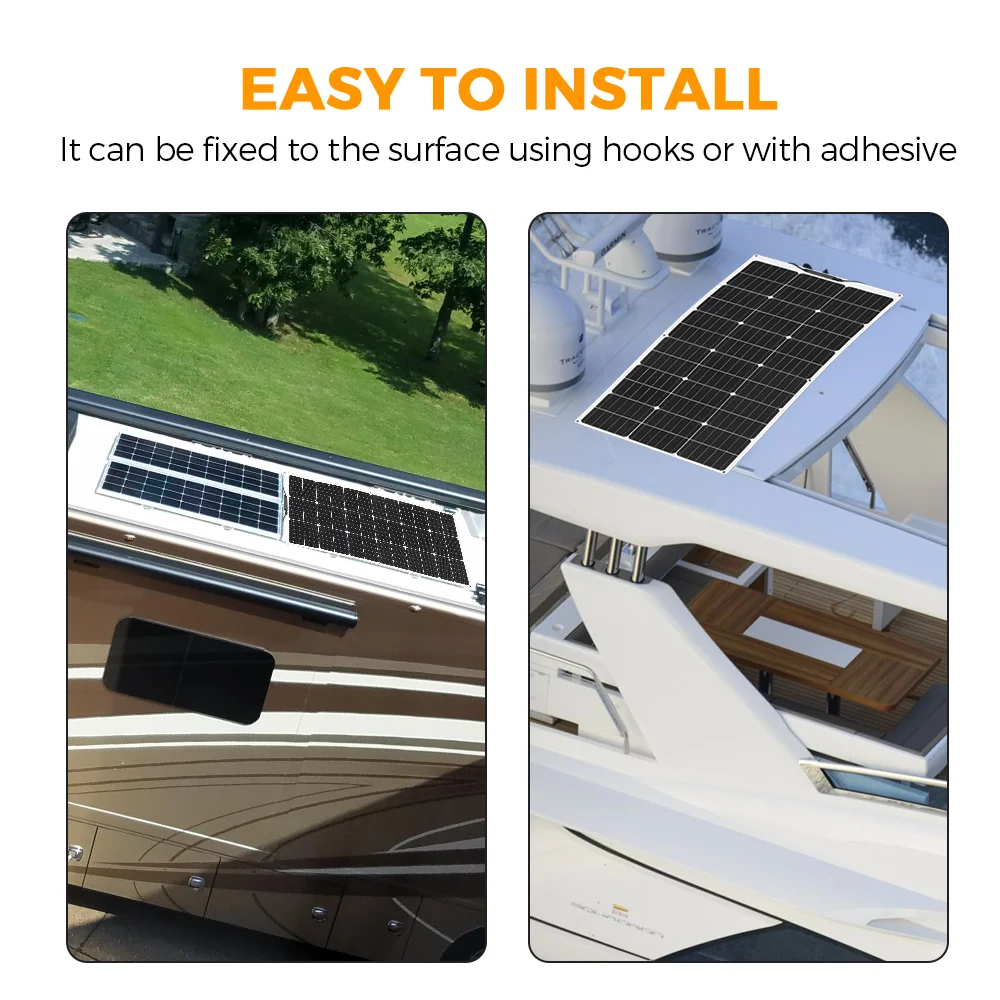

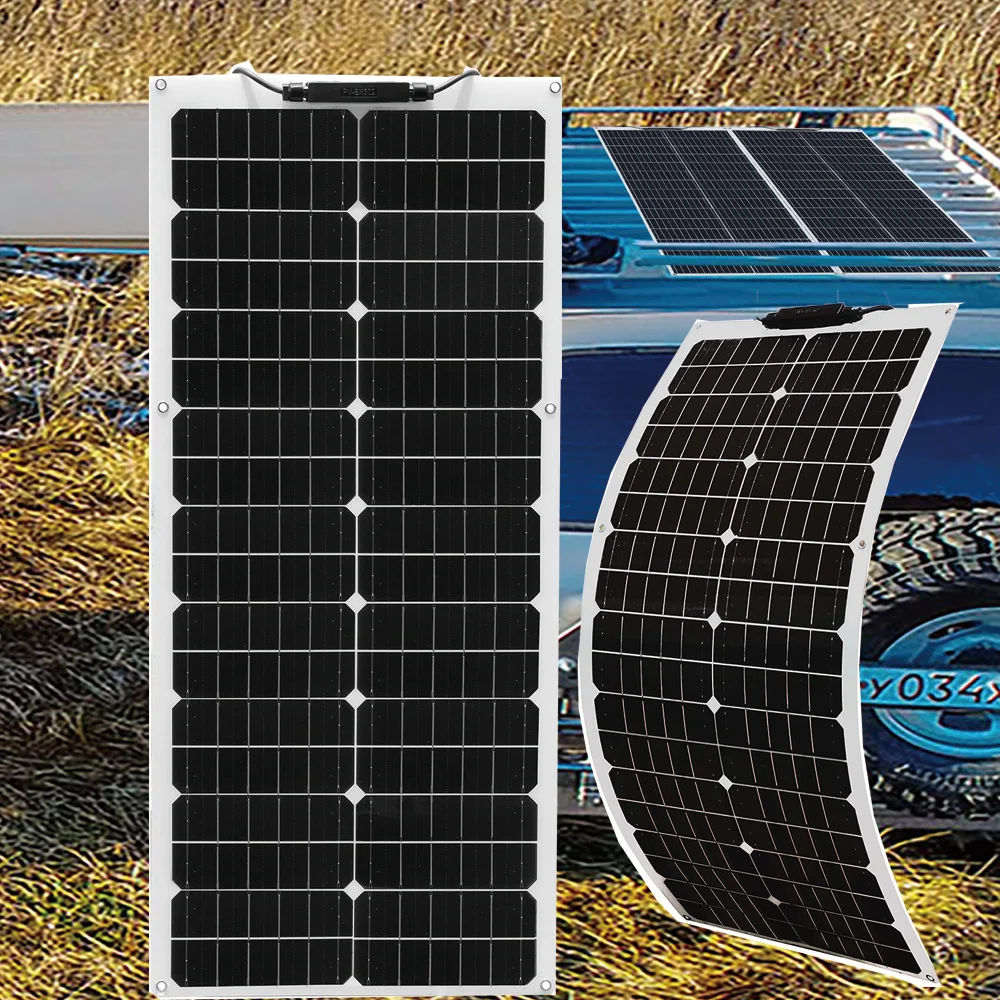

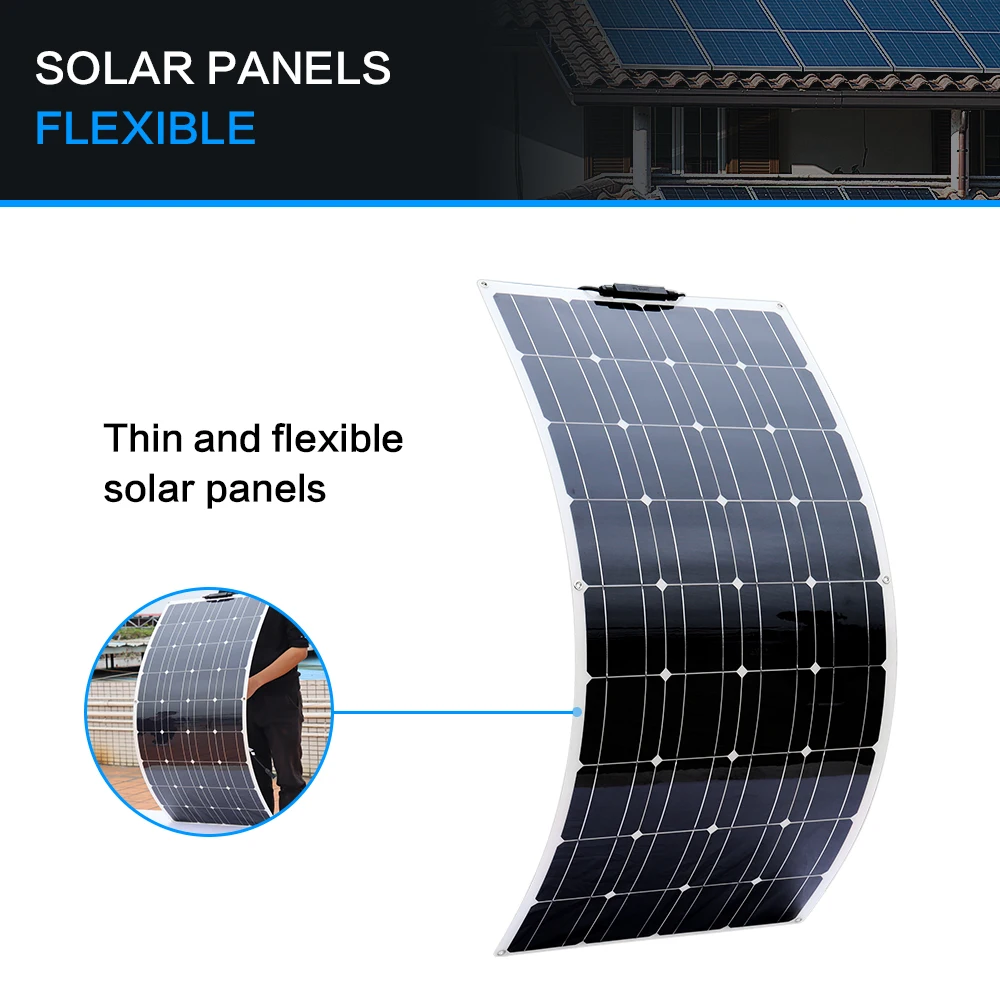

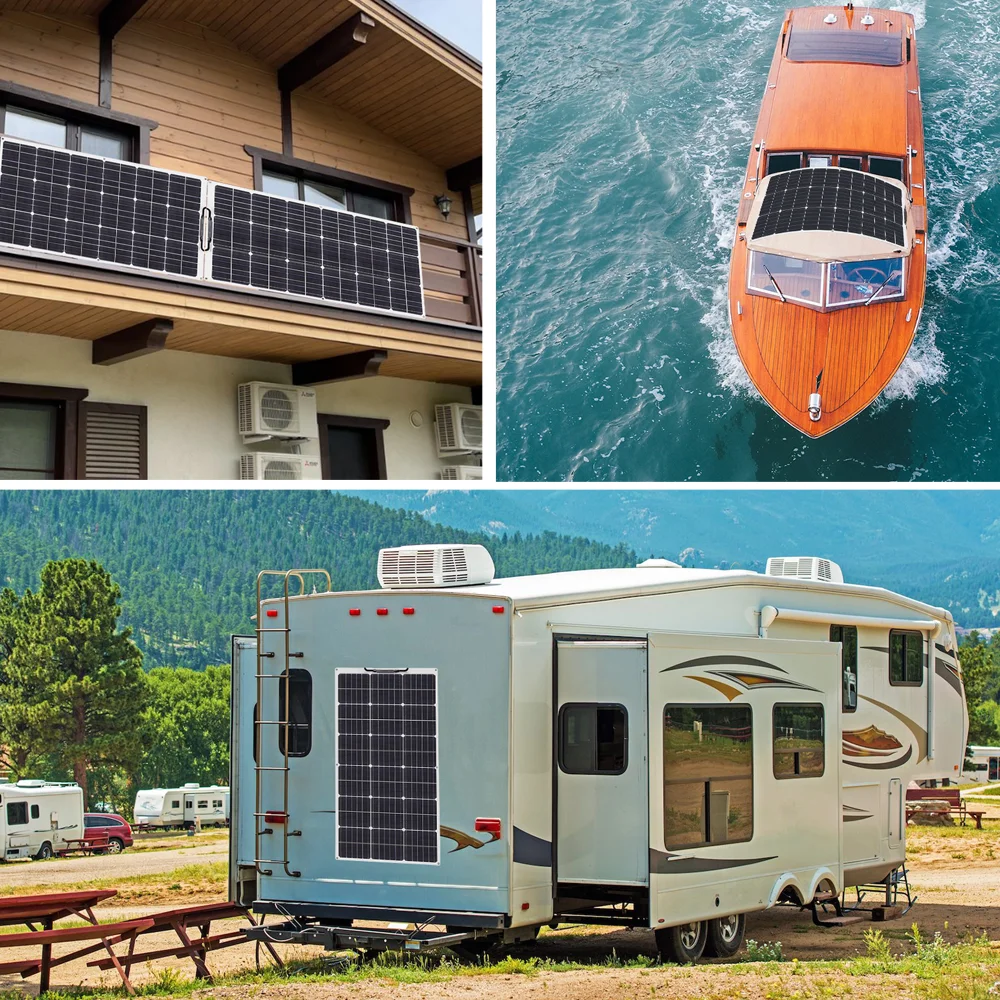

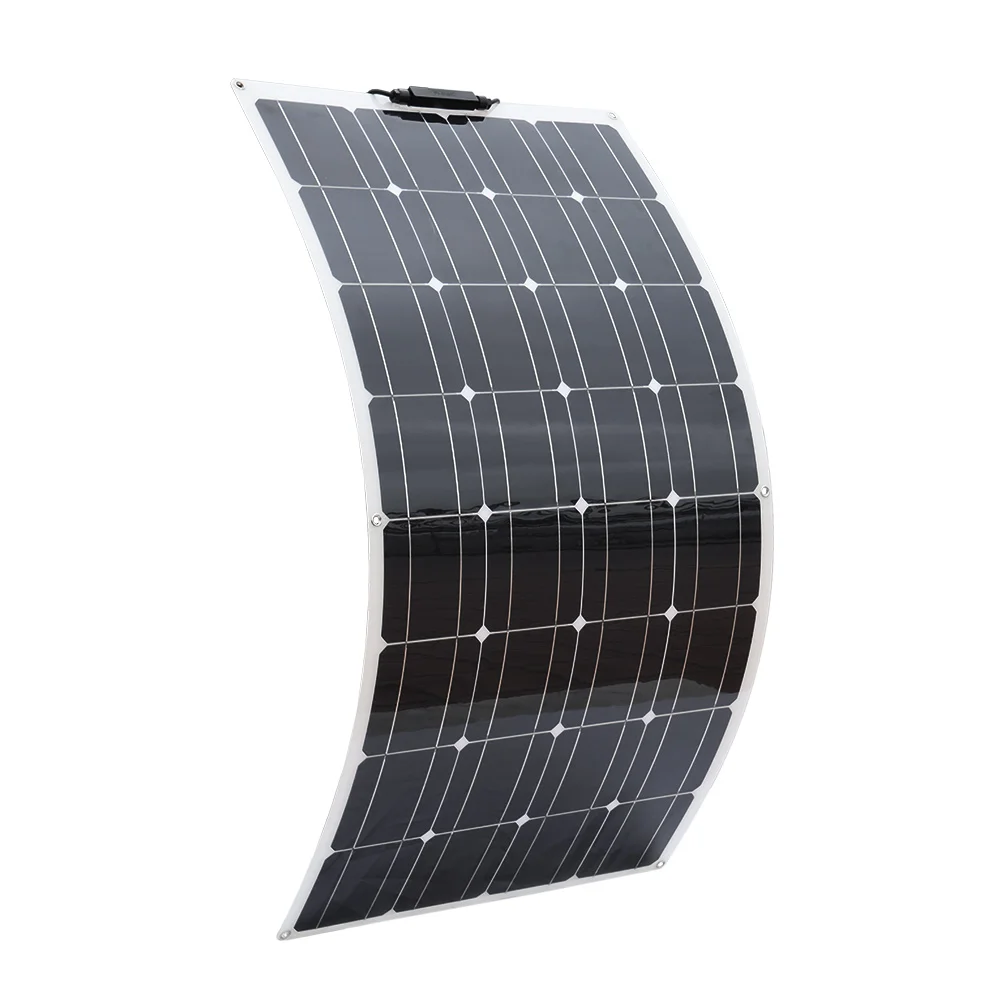

Ultra flexible and wide application: our ETFE solar panel can be used on any other sloping roof, such as car, boat, etc.

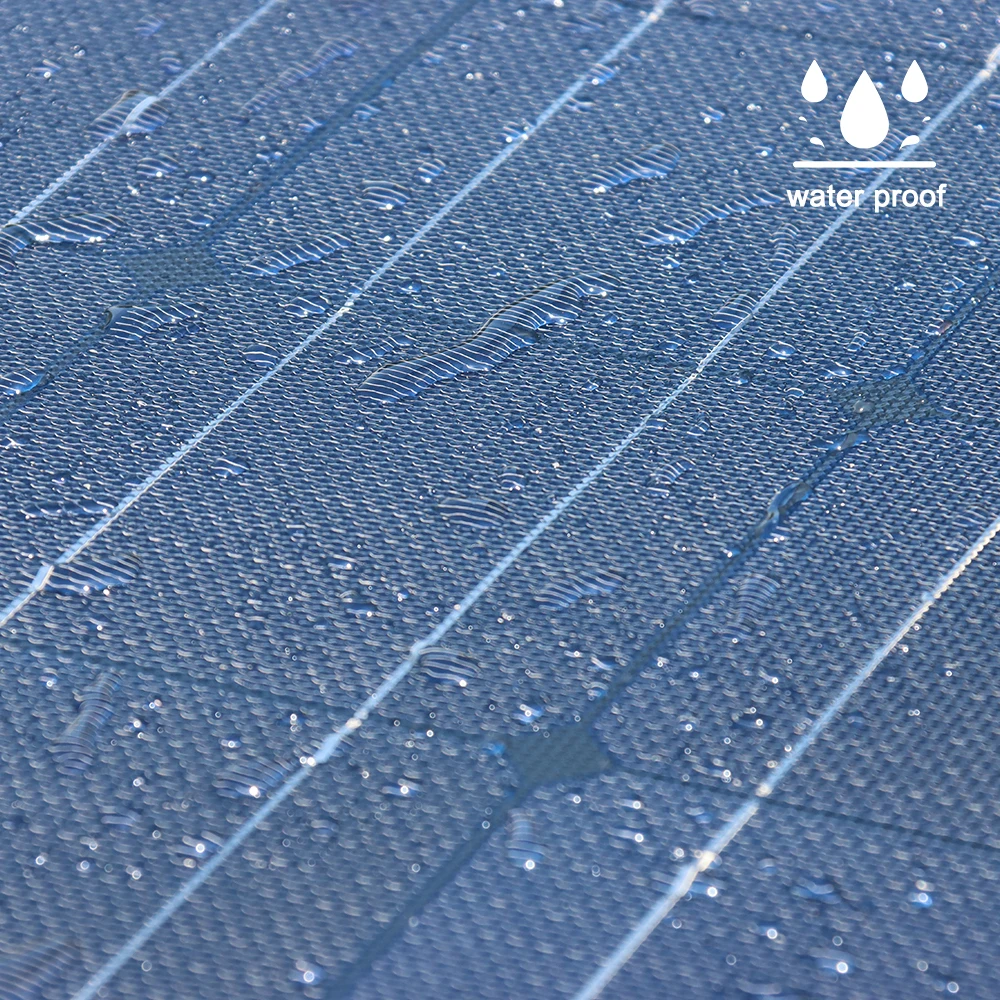

The modules can withstand high wind pressure, snow and extreme temperatures. It is waterproof and portable

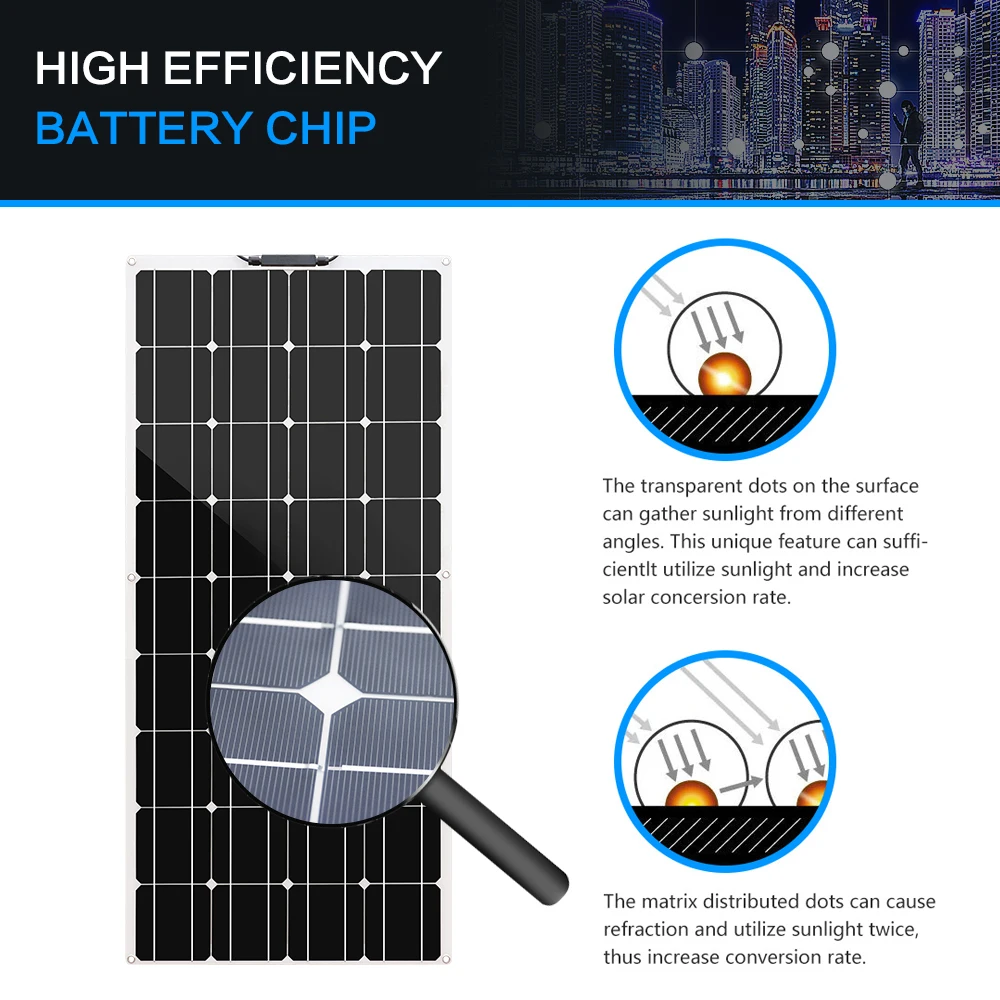

Efficient monocrystalline chip, better and more efficient power output

It is an environmentally friendly power that reduces carbon emissions to slow down global warming and climate change

PET Solar Panel Features:

[Multiple Compatibility] Perfect solar power kit for a variety of off-grid applications like shed, cabin, gate opener, etc where 12V battery is used, as well as to charge and maintain AGM, Flooded, GEL, Deep Cycle and Seal Lead Acid, etc batteries in the car, Rv, boat, marine, trailer, camper, pump, etc.
[Light weight] Made of high efficient solar cells,withstand extreme weather conditions like UV, anti-rusting, IP65 waterproof.
[Intelligent Charging] Optimized 3-stages charging algorithm allows to charge the battery more efficiently, and prevent the battery from overcharge, over-discharge, over-voltage, short circuit, etc, fully protect battery and extend the lifetime.
[Visual Monitor] Visual bright LED indicators help to monitor battery conditions and better understand the status of solar panel and load. Exclusively equipped three working modes for load, allowing to set up the load to work under dusk to dawn automatically plus working hours according to personal requirement, very practical and useful.

19.8V 50W PET solar panel Specification

Cell material: Monocrystalline silicon

Pmax (Power at Maximum under STC) :50W

Imp (Current at Max Power, A): 2.52A

Vmp(Voltage at Max Power, V): 19.8V

Voc(Voltage at Open Circuit):21.8V

Isc (Current at Short Circuit,A): 2.65A

Solar Cell Efficiency: 24%

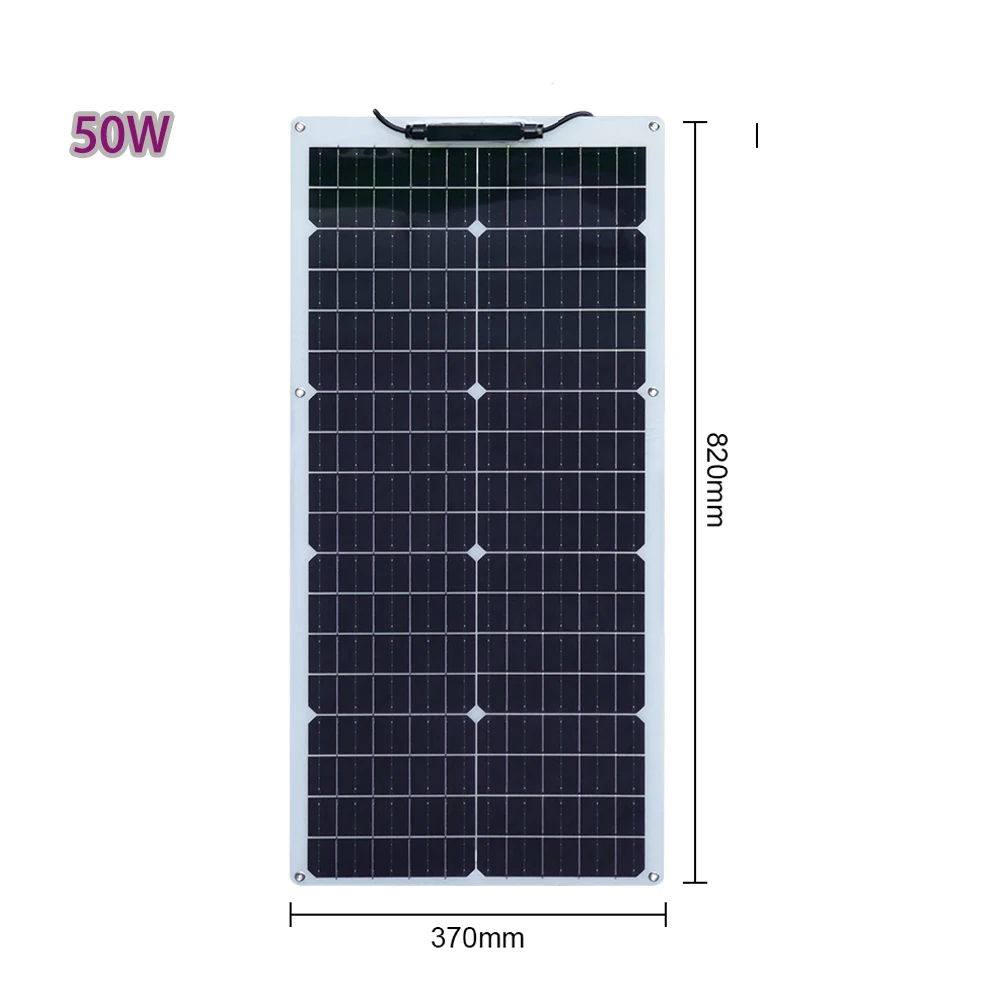

Size of module:820*370*3mm

Net Weight: 2.56Ib (1.1kg)

Length of Cables: 19.7(inches)

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error，thank you）

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.Please note that your controller is suitable for your battery type!

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

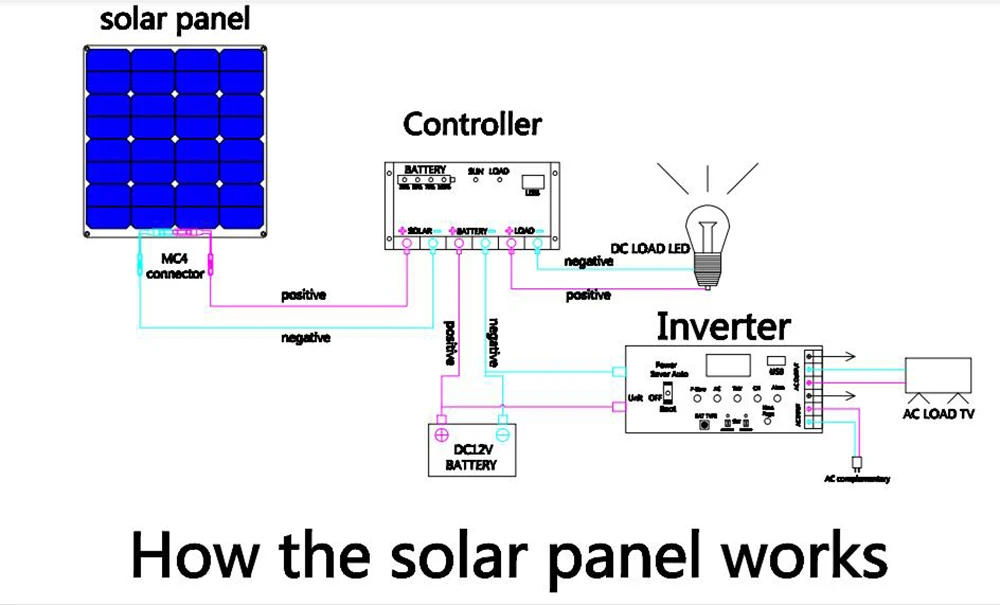

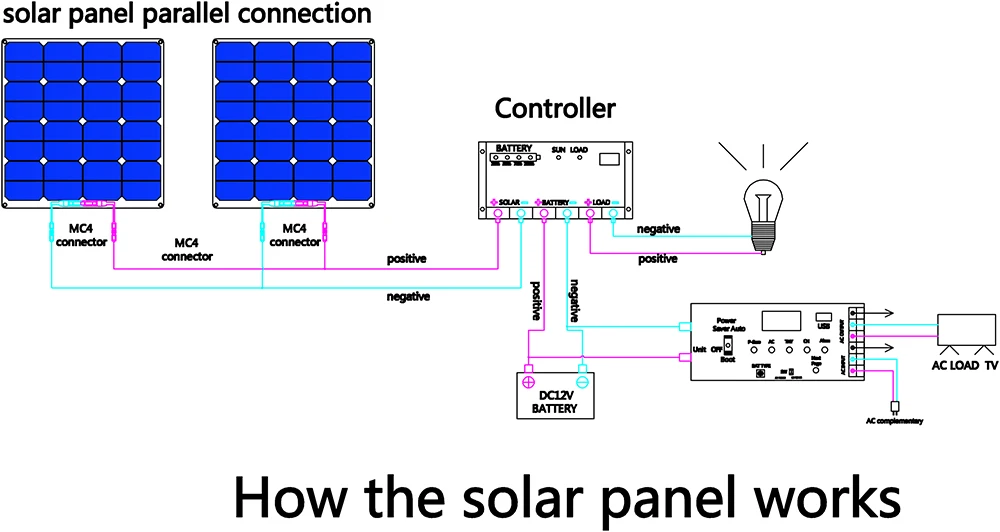

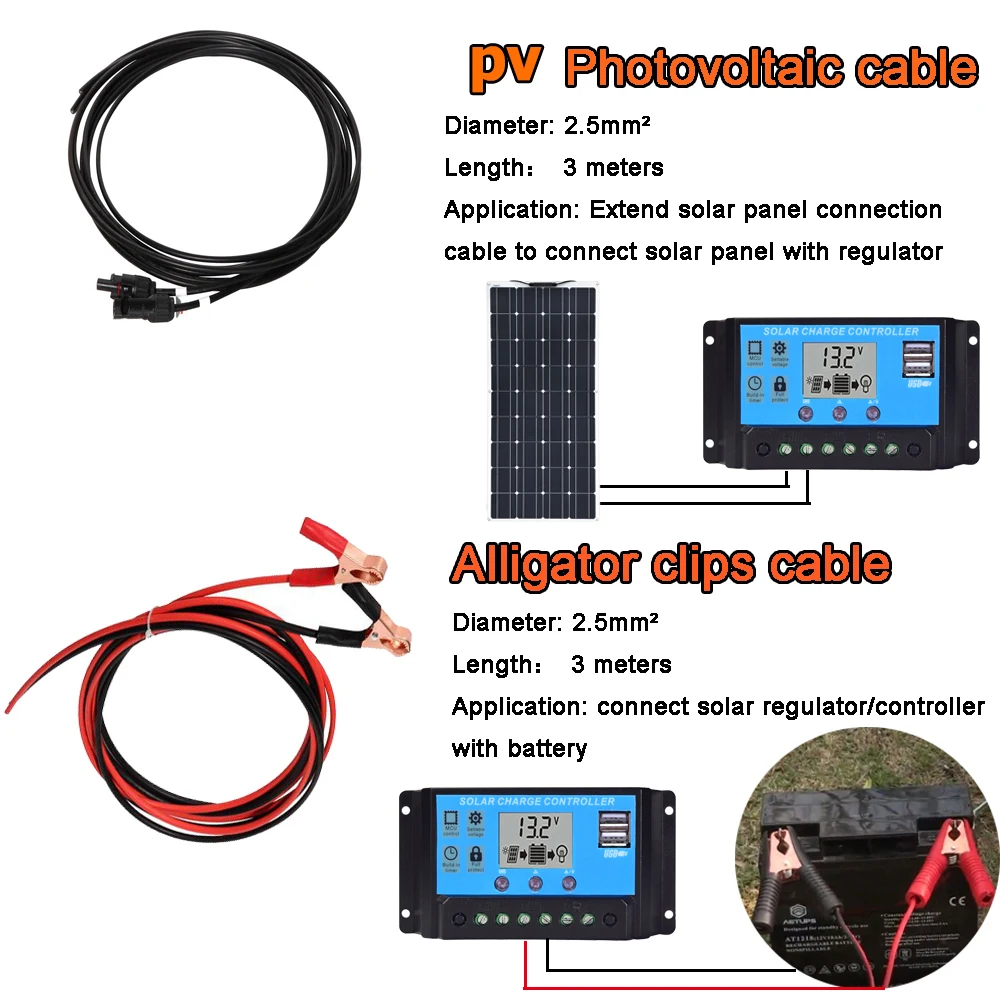

System Connection:

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

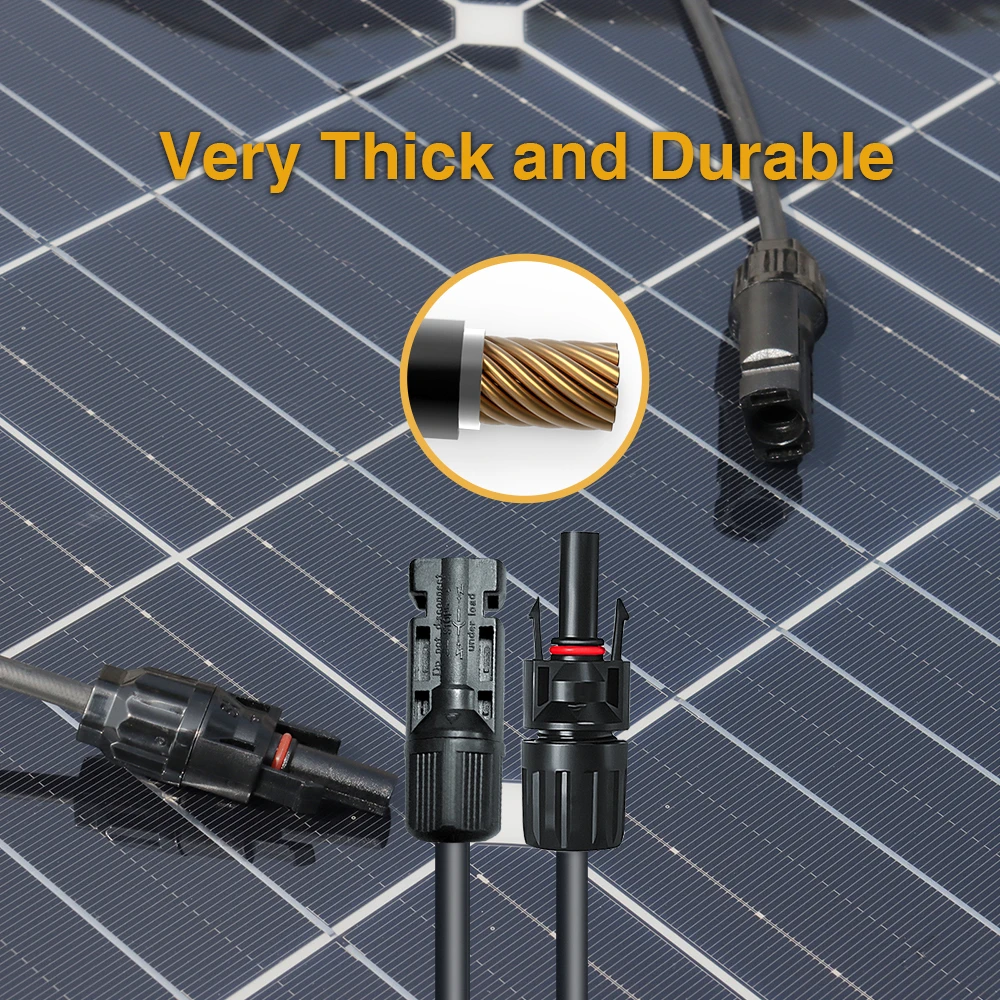

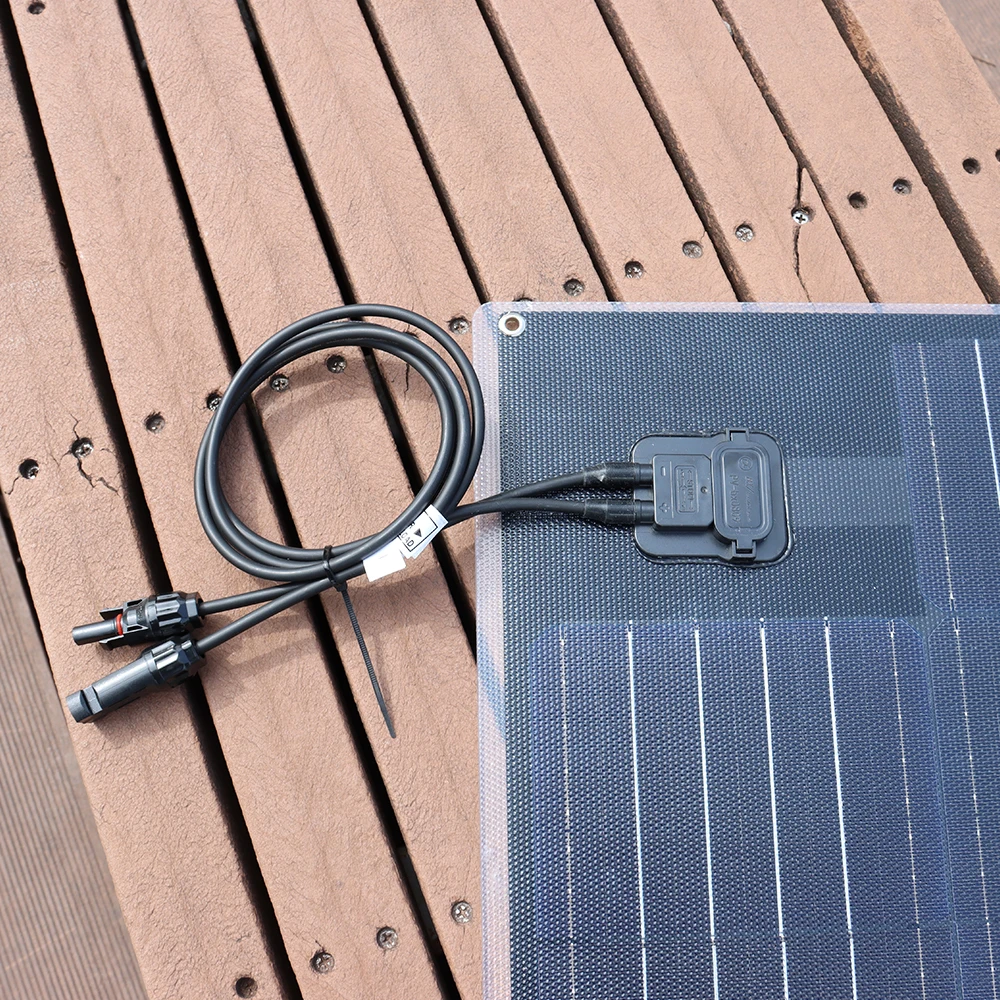

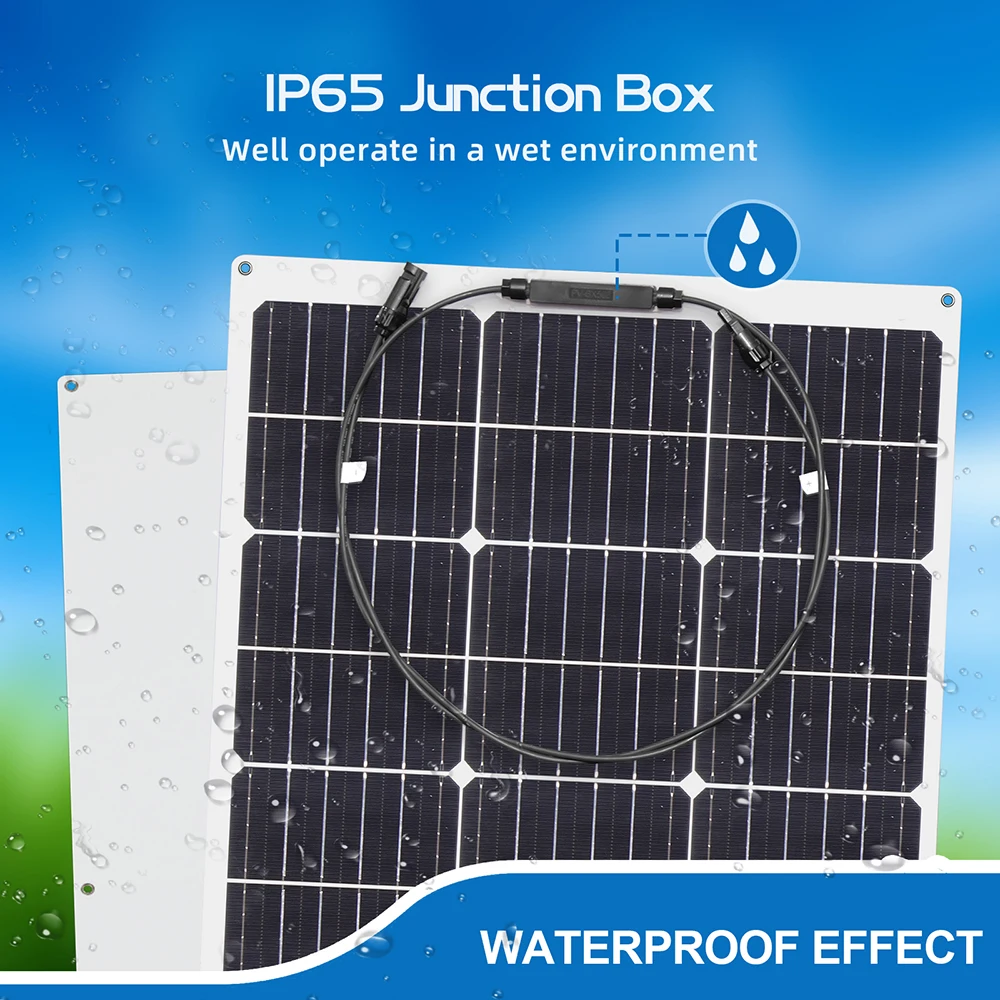

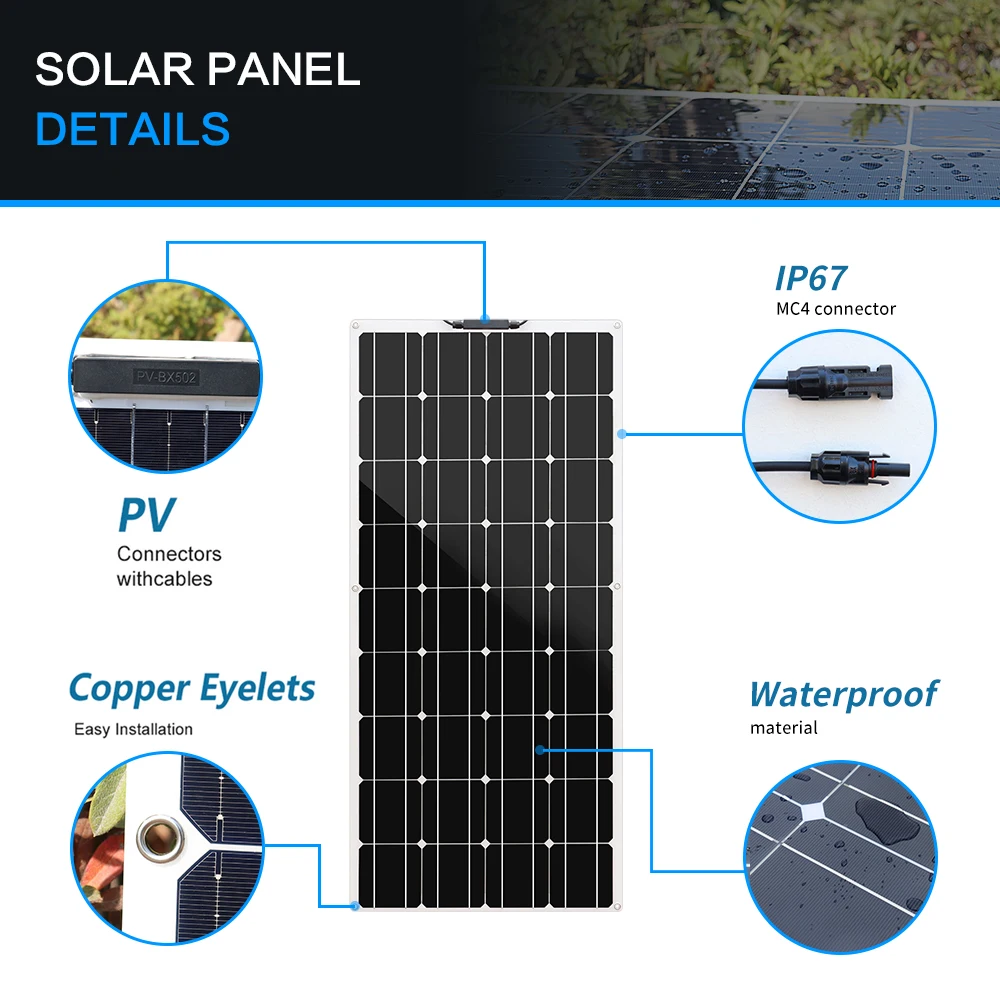

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically.
