Retro Game Consoles OSSC Open Source Scan Converter HDMI-Compatible Adapter For

Introduction:

The Open Source Scan Converter is a low-latency video digitizer and scan converter designed primarily for connecting retro video game consoles and home computers to modern displays. It converts analog RGB or component video signals into a digital format, and doubles (or triples) the scanlines of a single frame if necessary to generate a valid mode for digital TVs or monitors.

Note:

How To Update HW1.8 Version?

If you want to know the detial,you can contact the service staff.Please provide your emtial to us.

Features

Excellent picture and sound quality on a HDMI-compatible PC monitor or TV

-No blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades. Convert VGA to DVI /HDMI-compatible. Connect Dreamcast directly to the unit and enjoy HDMI-compatible processing for all games.

Process (line doubles) retro game with no input delay

-Support for 240p, 480i, 288p, 576i, 384p, 480p, 576p. Unlike other scalers, such as the XRGB Mini, OSSC works on a single scan line instead of one frame at a time, which means there is no input delay. Convert SCART and Component to DVI / HDMI-compatible.

Eliminates ugly deinterlacing artefacts and bad scaling

–When connects retro consoles to your TV, this product converts the image into a 480p or 720p (where compatible) image that is correctly displayed and processed. EVERY special effect, from 240p drop shadows to striped sprites, is rendered correctly.

Converts SCART and Component to HDMI-compatible

–For example, feed in a 480p component video signal from a Wii and get out a perfectly processed 480p HDMI-compatible or DVI (with a simple adapter) image. The quality is flawless!

Convert VGA to HDMI-compatible

–For example, connect a Dreamcast directly to the unit and enjoy HDMI-compatible processing of all your games, not just those that support 480p.

Convert analogue audio to digital HDMI-compatible

–Analogue audio from your retro games console will be converted to digital audio and injected into the HDMI-compatible/DVI output (requires compatible TV, processor or AV receiver. Analogue audio output is still available for setups where this is required).

Could be used in almost all over the world

-Voltage AC 110V-220V.Go with plug adapters for USA, UK, Australia and Europe.

Its user manual is in multi language. Includes English, German, French, Italian, Spanish and Japan.

Easy to use

-Plug and play. Go with very detail user manual and we provide technical support and professional customer service. Worry free to buy !

Supported Inputs/Outputs Resolutions

240p/288p -> 480p/576p or 720p line triple (compatible displays only)

240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)

25Khz medium-res modes -> 480p

480i/576i -> 480p/576p or pass-through

480p -> pass-through or 960p line-double (compatible displays only)

all other 31khz resolutions passed through

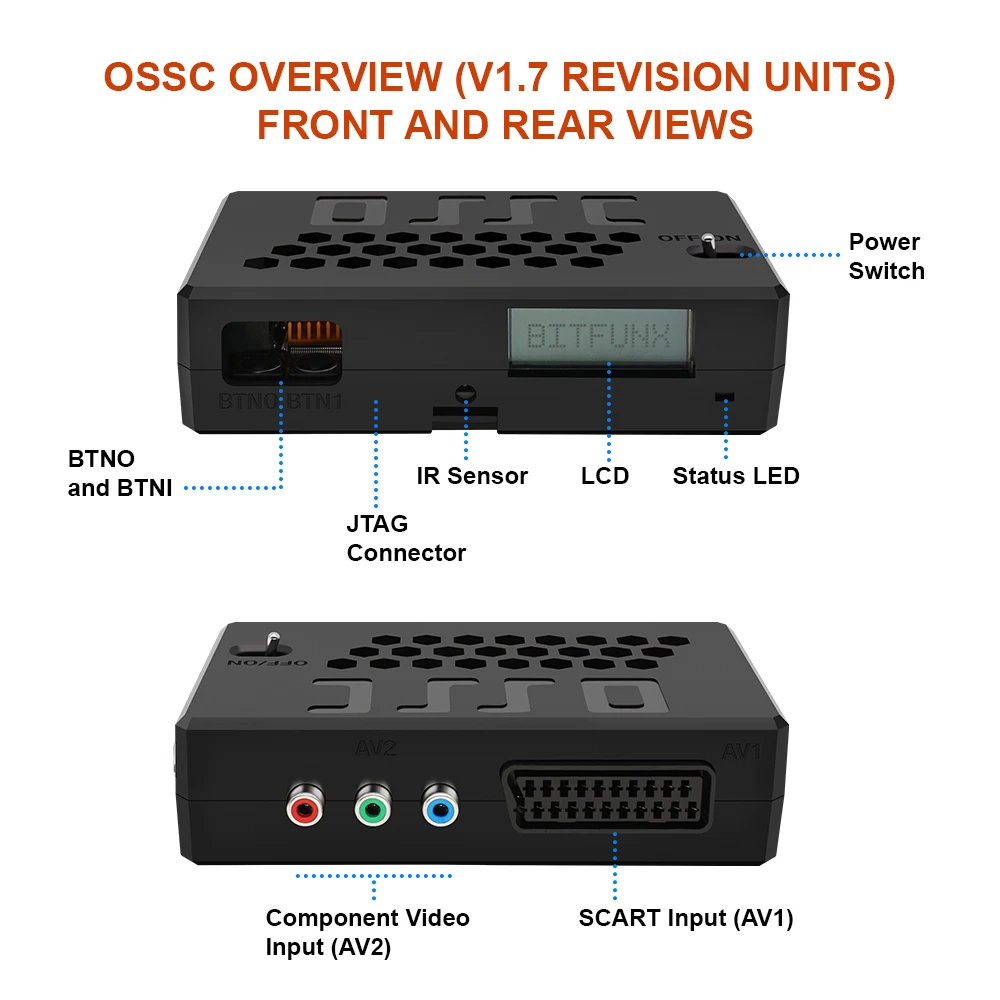

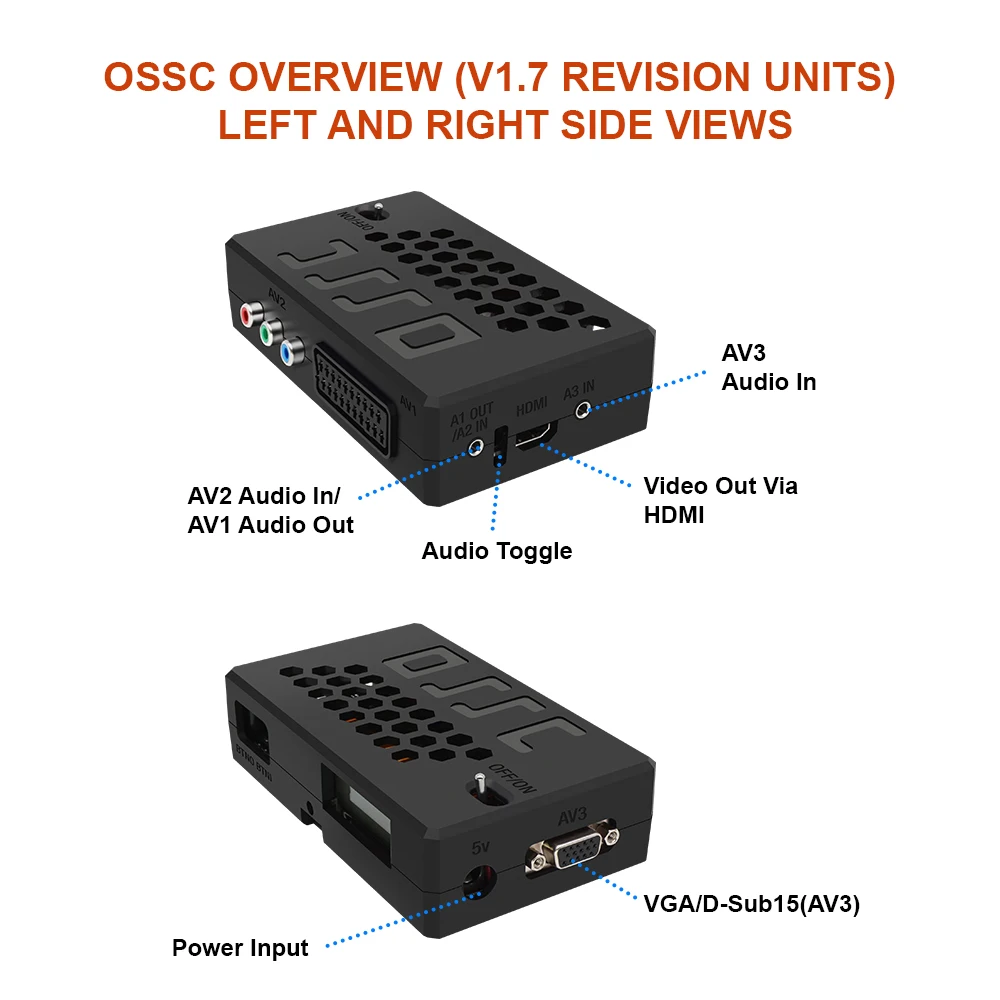

Inputs

1 X SCART – Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr

1 X Component video – Supports Ypbpr and RGsB signals

1 X D-SUB15 (VGA) – Supports RGBHV, RGBs, RGsB, Ypbpr

2 x 3.5mm analogue audio – Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input

Outputs

1 X HDMI-compatible or DVI-D (with adapter) (digital only,including audio). Full-range 24-bit RGB output through DVI/ HDMI-compatible

1 X Analogue audio 3.5mm (input/output toggle)

Support Console:

Retro Home Consoles:

For Atari 2600
For Atari 5200
For Atari Jaguar
For Microsoft Xbox
For Microsoft Xbox 360
For NEC PC Engine
For Nintendo 64
For Nintendo NES / Famicom
For Nintendo Gamecube
For Nintendo Super NES / Super Famicom
For Nintendo Wii
For Sega Dreamcast
For Sega Genesis / Mega Drive
For Sega Master System
For Sega Saturn
For SNK Neo Geo
For Sony PlayStation
For Sony PlayStation 2
For Sony PlayStation Portable

Computers:

For Atari 8-bit family
For Commodore Amiga
For Commodore 64
For MGT Sam Coupé
For MSX
For Sinclair ZX Spectrum0

Arcade Boards:

For Capcom CPS-II
For Data East Caveman Ninja Hardware
For Irem M92
For Nintendo Playchoice 10
For Namco Gaplus
For Sega Model 2
For Seibu SPI
For SNK Hal 21
For SNK Neo Geo MVS
For Sony ZN-1
For Taito F2
For Taito FX-1B
For Taito F3
For Toaplan V1
For Toaplan V2

Notes:

AV video and S-Video are NOT supported and require an adapter/ transcoder

For more detailed information about which kinds of TV it compatible please visit our official website or you can just contact our sale service, thanks.

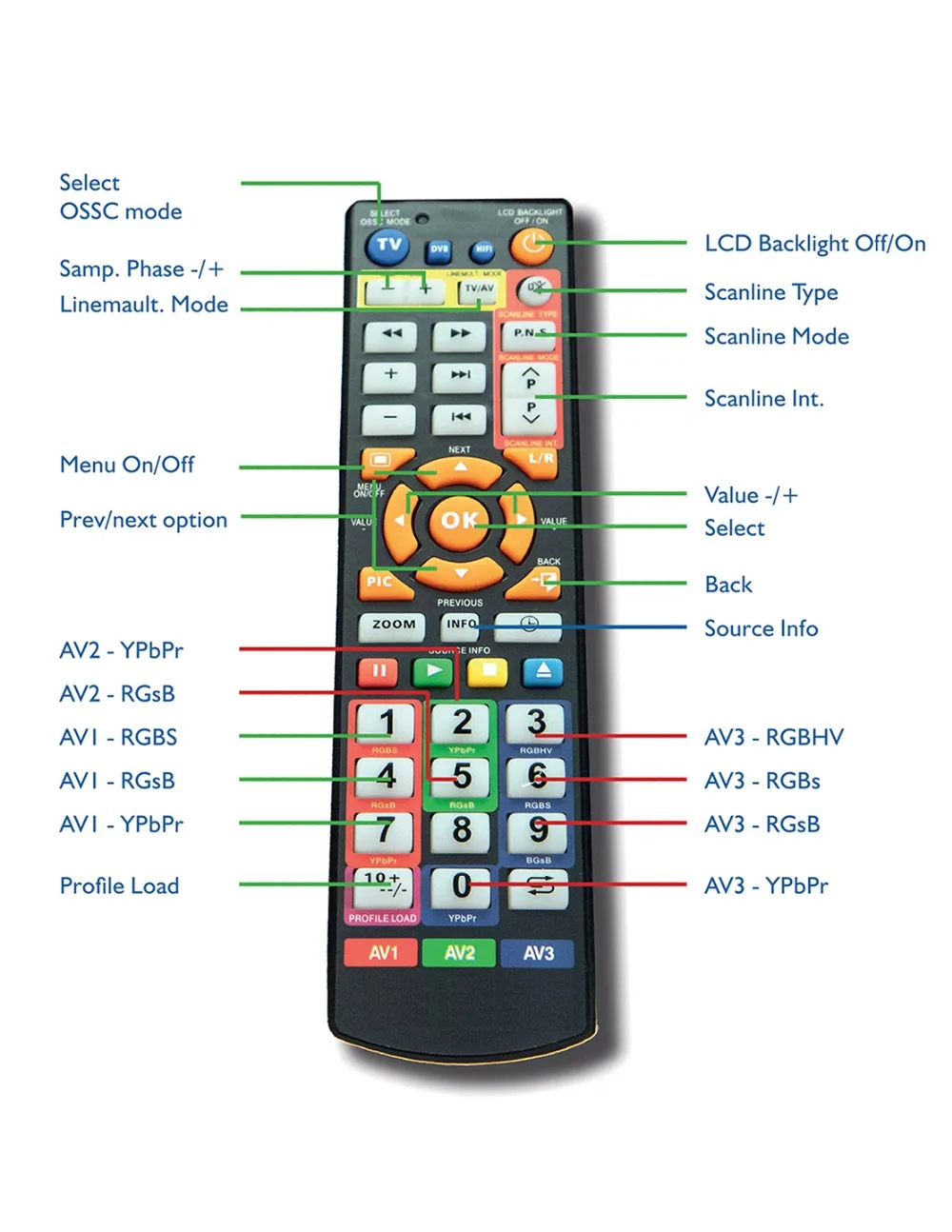

Variety settings available in the remote controller, satisfy need of game players at all levels.

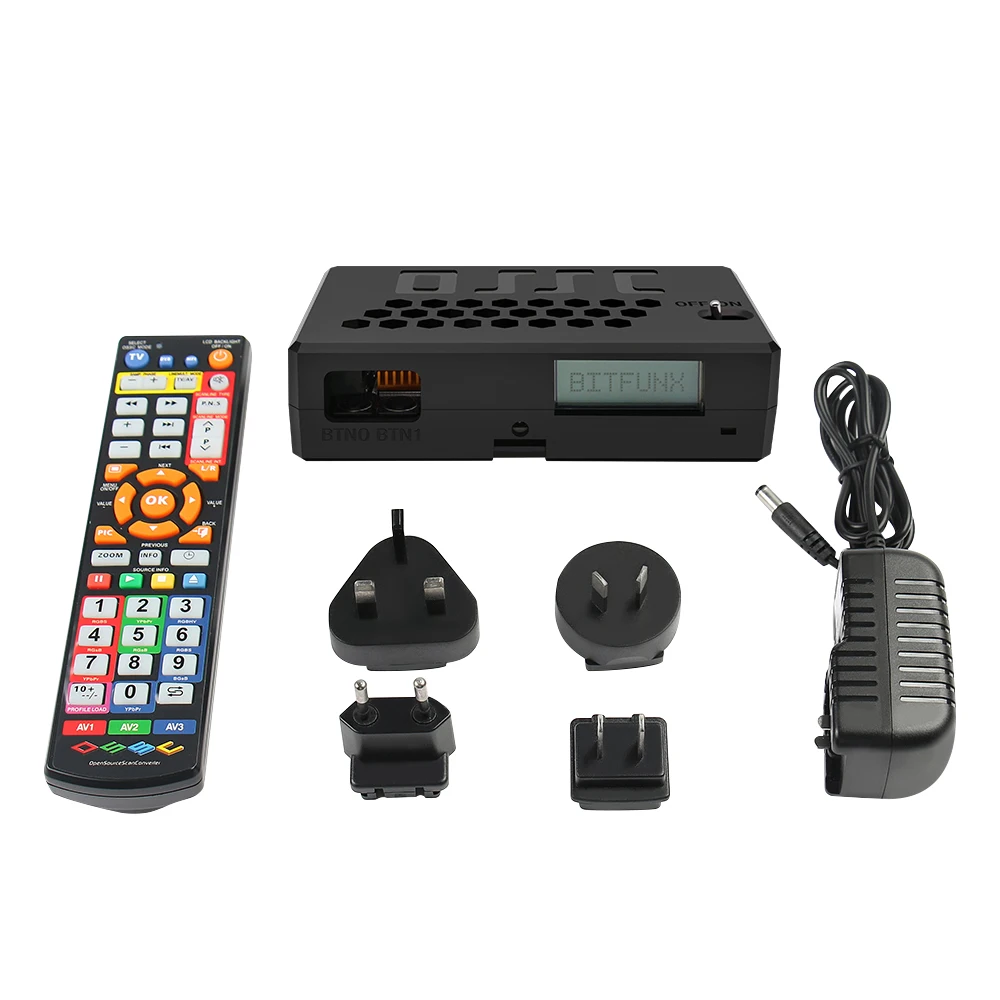

Package Contents:

1* HDMI–Compatible Converter
1* IR Remoter
1* Power Supply with 4 plug adapters(UK/ EU/ AU/ US)
1* Multi Language User Manual
