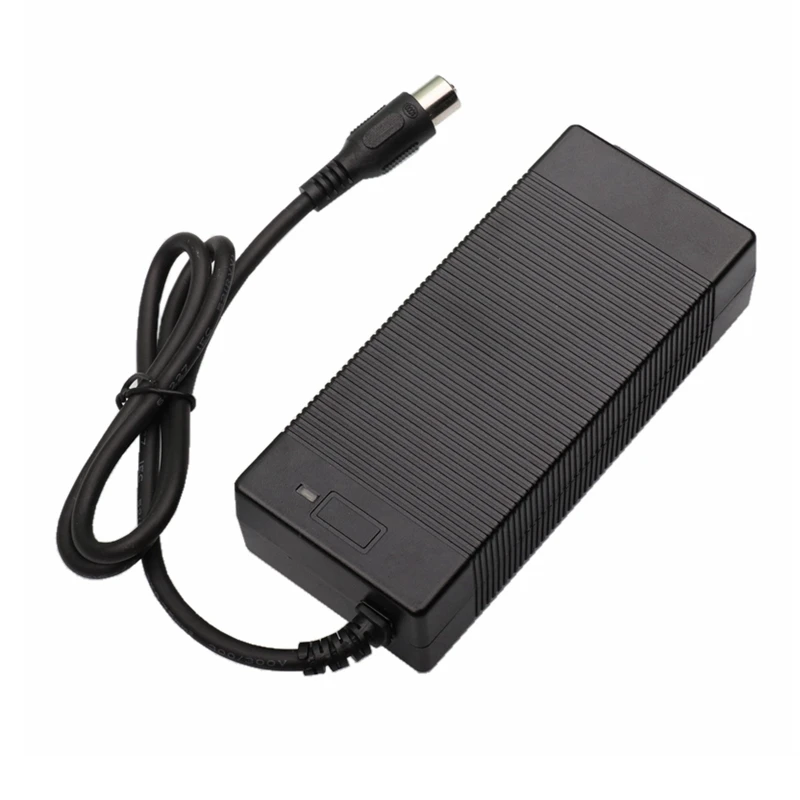

48V 2A Electric Bicycle Lead-Acid Battery Charger For 57.6V Scooters Motorcycle Charger DC/XLR/GX16/RCA Connector

Description

48V 2A Electric Bicycle Lead-Acid Battery Charger For 57.6V Scooters Motorcycle Charger DC/XLR/GX16/RCA Connector

Specification:

lnput: 100-240VAC,50/60Hz

Output: 48V 2A

Power Max: 84W

Color: Black

Charge indicator: GreenLight(full), RedLight(charging)

Security protection: OVP/OCP/ OLP/ SCP

Connector:DC 5.5*2.1/ 3-Pin XLR / 3P GX16 / RCA / 3P GX12 / 3P Plug / DC 8mm / 4-Pin XLR/XT90/XT60

(Please select the connector you need, if you don’t know which one or need other connectors, please contact TangsFire customer service.)

Plug: EU / US / UK / AU / KR

(Please choose the correspondentplug of your country, or we will send you the Plug according to your address. If you have any question about the plug, please contact TangsFire customer service.)

*Notes:

1. Please confirm whether your battery model matches Tangsfire charger, as well as whether the positive and negative poles of this connector are the same as your original charger. If not, the Tangsfire charger will always emit green light and fail tochargeyour battery. (If you have any question about the battery model or the positive and negative poles, Please contact us before your purchase.)

2. Please use our charger on lithium battery.Do not use the charger on the LiFepo4 battery, otherwise the charger will be got extremely high-temperature.

3. For testing the charger by a multimeter, please make sure the multimeter is fully charged, or it may cause errors. If you are not satisfied with the testing result, please contact us before leaving reviews.

4. The charger operates with a slight heat (the operating temperature of the charger does not exceed 60°C ), which is a reaction to the heat dissipation work of the charger.

5. If you are not satisfied with the package received, please contact us for help. We are always willing to help you or offer you a satisfactory solution. Please contact TangsFire customer service before leaving reviews.

Features:

Security protection:OVP(Overvoltage protection)/OCP(Overcurrent protection)/ OLP(Overload protection)/ SCP(Short-circuit protection)

Intelligent indicator:The charger automatically detects if the battery is fullycharged (if a BMS is installed on the battery) and then Auto-stopwhilebeingfull charged.  The LED lightwill turn red whenthecharger is working and turn green afterfinishing charging. WithCC-CV working mode,the life spanofbatterycan be optimized.

Faster and Safer Charging:100% Brand New and high quality Super strong protection.Gently starting the current, Tangsfire charger reduced the impact of the AC input. Intelligent high-speed charging greatly shorten your charging time.

Light Weight, Big Power:The case of our charger maded of Fireproof ABS,which is more light-weight and friendly to the environment

Instruction and Maintenance

1. When charging the battery, please firstly connect the charger to the battery, then connect to AC. After charging, unplug the AC at FIRST, then plug off the battery from charger. If you unplugin a reverse order, it may cause damage to the battery.

2. Please continue charging for 2-3 hrs after the LED light turns green.

3. Please charger in a dry environment.

4. Please timely unplug when you do not use the charger.

5. Please charge your battey before it runs out of the power, or the battery cannot be protected or even damaged

Package list:

1x Charger

1x plug
