4.8KW 4.4KW Wind Solar Hybrid System MPPT Charge Controller With Dump Load Wind Turbine Solar Panel 12V 24V Auto 48V Regulator
$563.72 – $656.51
Description
- Is Smart Device: YES
- is_customized: Yes
- Maximum Current: 58A
- Model Number: 4800W Hybrid Wind Solar Charge Controller
- Application: Charger Controller,Voltage Controller,Solar System Controller
- Origin: Mainland China
- Certification: CE
- System Rated Voltage: 12V 24V 48V
- DC Load Rated Voltage: 12VDC/24VDC/48VDC
- DC Load Max Current: 10A
- Dump load way: External dump load
- Communication: Bluetooth( built in controller)
- Cooling mode: Cooling fan and self-cooling
12V 24V 48V 4800W 4000W 2800W 2000W Hybrid Wind Solar Charge Controller MPPT Wind Generator Solar System For Lifepo4 Lithium Lead Acid Battery

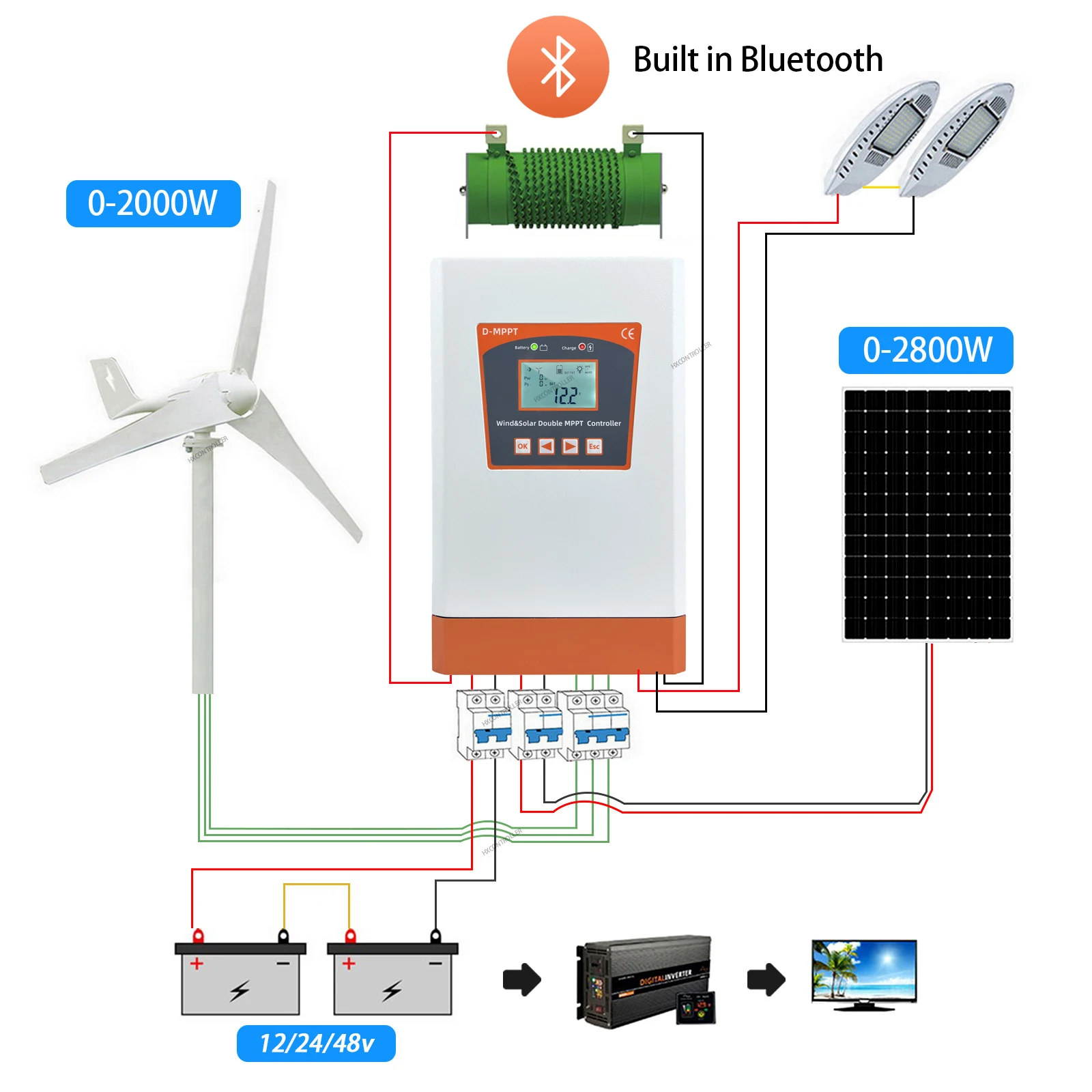

This kind of wind & solar hybrid charge controller is special designed for small off-grid wind generation and solar hybrid system. Appearance is elegant, operations are easy. It also makes the course of which wind generator and solar panels charge to batteries safely and efficiently.
The advantage of controller is that it can add wind turbine, solar system only can charge sunny weather, when it’s raining weather, solar controller can’t charge. But wind turbine can charge battery in any weather, even though rain or cloud weather. So this controller can help you charge battery in any weather, it’s very good for lacking of power place.
Highlights

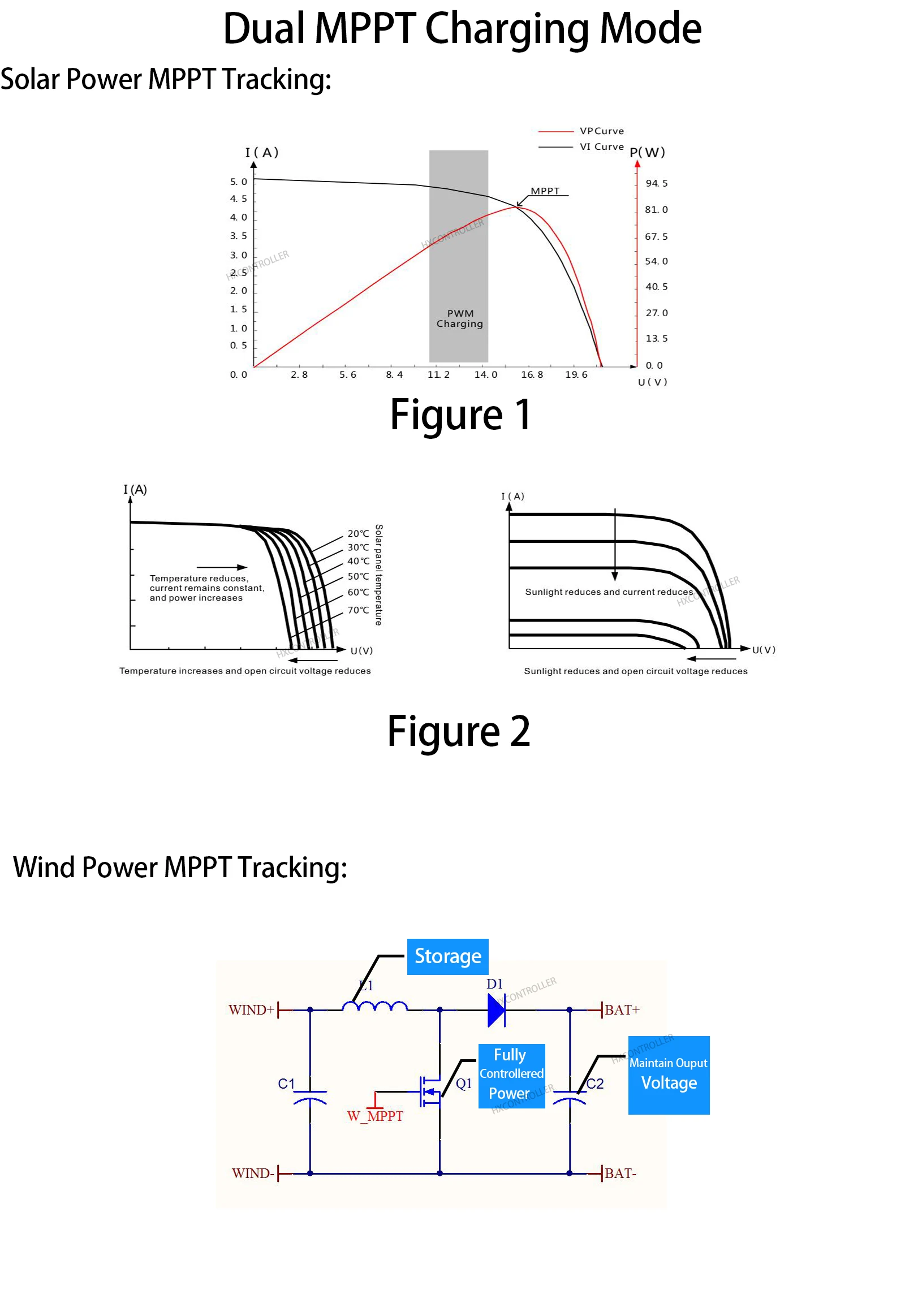

The ordinary wind turbine charging controller can only be charged when the fan is large and the fan voltage is higher than the battery voltage. The MPPT controller of this product can not only meet this requirement, but also realize the breeze charging function by boosting the lower fan input voltage through the MPPT boost circuit when the wind force is low and the fan input voltage is lower than the battery voltage, and allowing the fan to operate at the maximum power point.
Functions and Features
1. Wind generator MPPT boost charging function,improved charge efficiency .
2. External dump load resistant to strong wind,work more stable .
3. Solar MPPT charge，Solar intelligent disconnect charging，high efficiency charge.

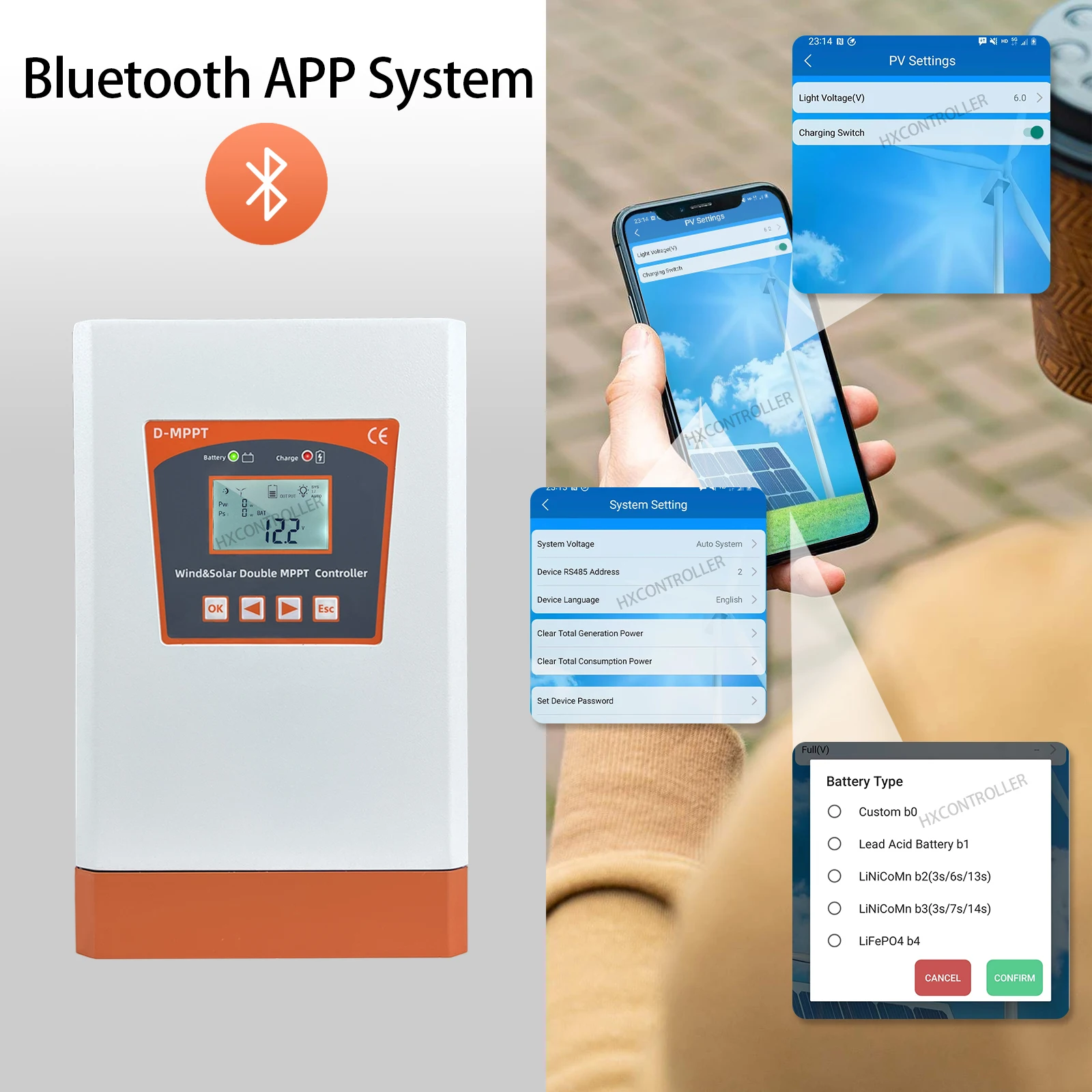

4. Bluetooth function can monitor the system information by the app on the app on the phone(Only for Android).
5. Dual power supply function: Battery + solar power supply.

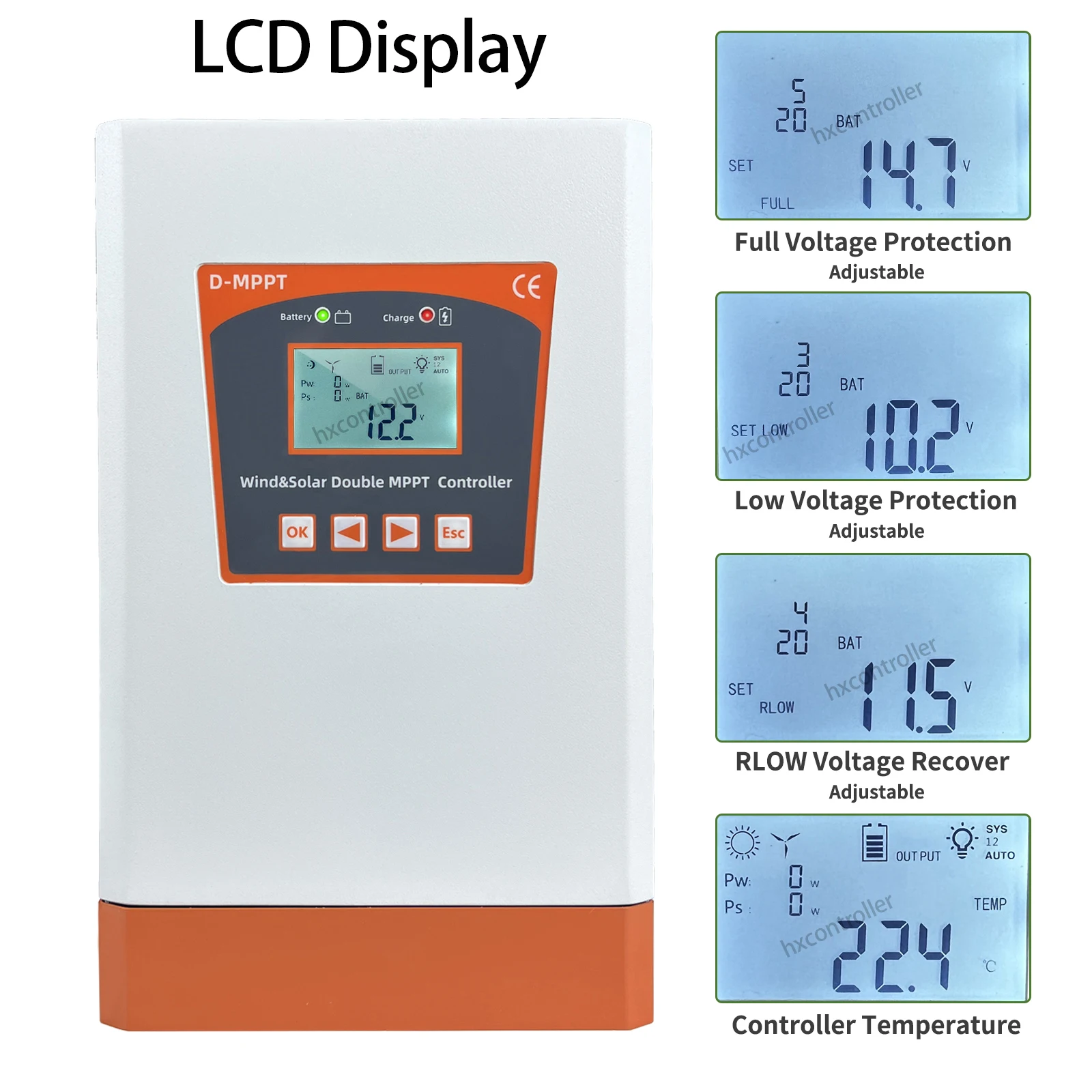

6. LCD displays parameters such as voltage and current of wind, solar and load .Some parameters can be set by users.
7. DC output with 3 output modes.
8. Battery module type can be selected and parameters can be set；
9. The controller has a built-in dust net, which is easy to replace and clean, ensuring the service life of the controller.

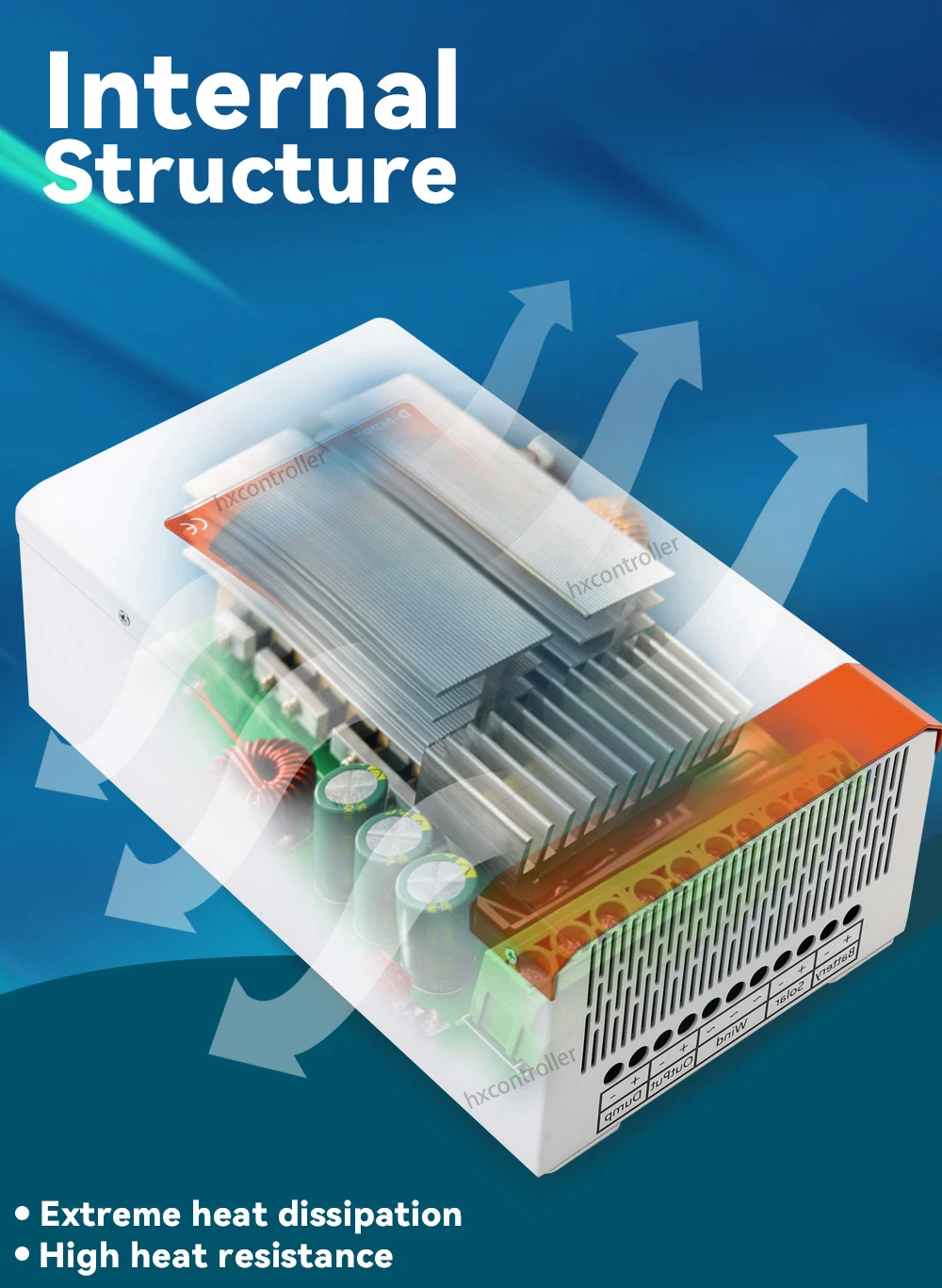

10. The inner circuit board of the controller is sprayed with conformal coating to prevent dust, moisture and static electricity.
System Table
Image of Product
