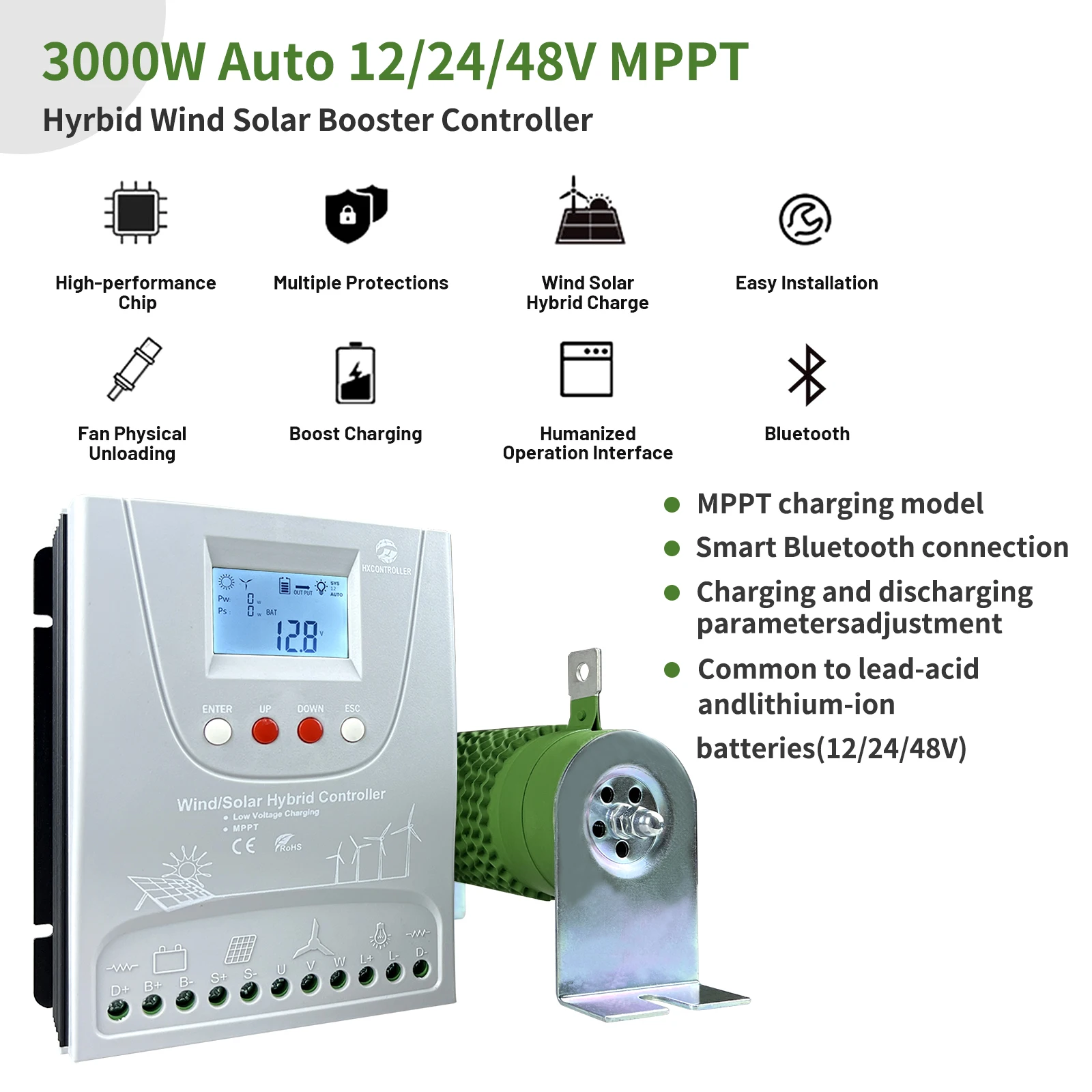

3000W 12V 24V 48V Hybrid Wind Solar Charge Controller Solar Panel Wind Turbine MPPT Board Battery Charging Regulator Bluetooth
$300.85 – $484.06
Description
- Is Smart Device: YES
- is_customized: Yes
- Maximum Current: 50A
- Model Number: MPPT 12V 24V 48V Hybrid Wind Solar Charge Controller
- Application: Charger Controller,Voltage Controller,Solar System Controller
- Brand Name: JYYHSRPOWER
- Origin: Mainland China
- Certification: CE
- System Rated Voltage: 12V 24V 48V
- Wind Turbine MPPT(Boost Up): 7VAC 17VAC 34VAC
- Wind Turbine AC Rectify DC: 16.8VDC 33.6VDC 67.2VDC
- Solar Module Voc: 30V 55V 95V
- Protection Grade: IP30
- Operation Mode: Default to streetlight mode
Good news for EU US buyer: our controller ship from poland ,spain warehouse and US warehouse you can get parcel quickly.
Delivery time:Poland(3days), Germany, Czech Republic, Spain(5days), France, Italy, Netherlands, Portugal, Austria, Belgium, Denmark, Lithuania, Hungary（5-7days）

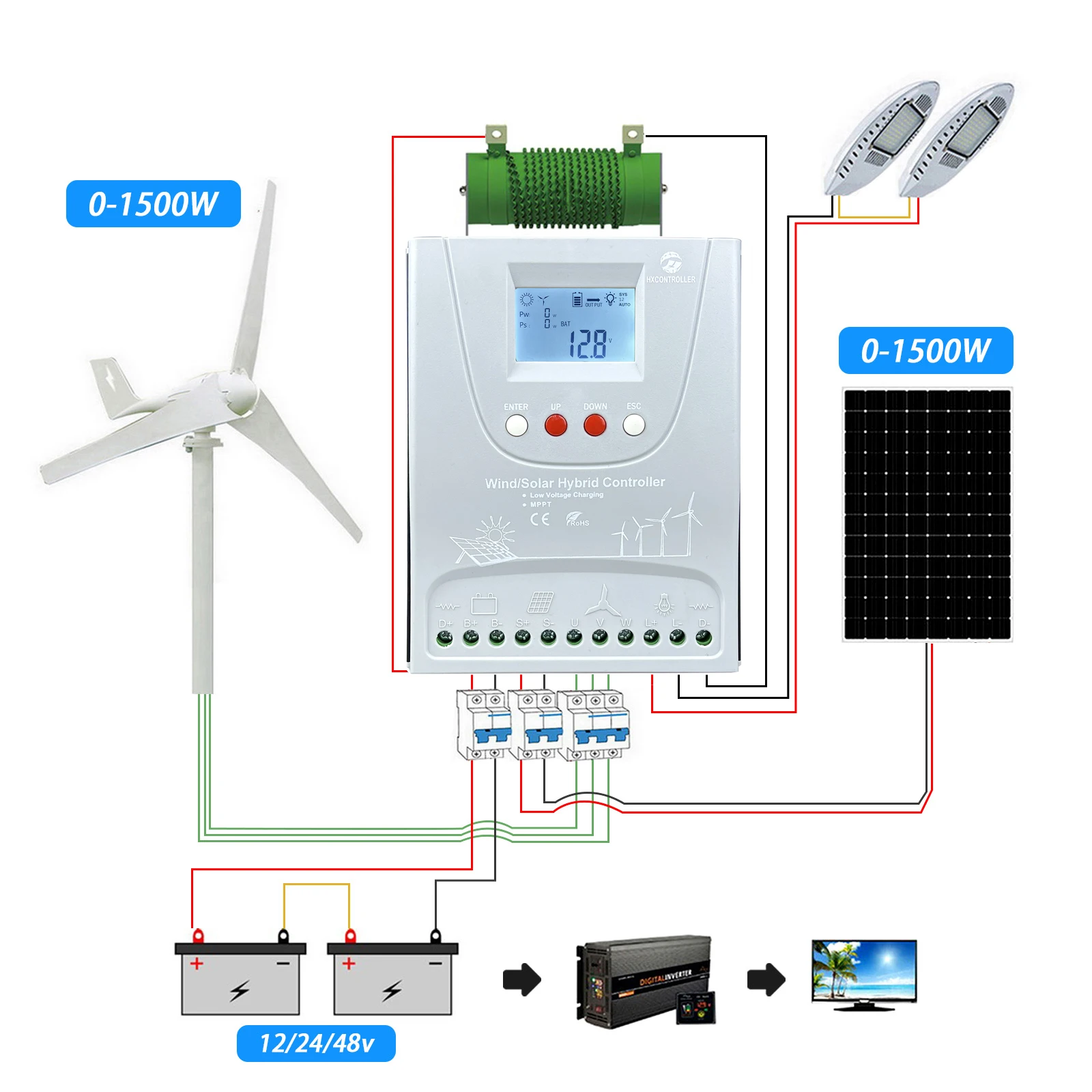

This kind of wind solar hybrid streetlight controller is special design for small off-grid he course
of which wind generator and solar panels charge to batteries safely and efficiently.
Function and Feature
1. Wind generator MPPT boost charging function.
2. PWM dump load of wind, external dump-load resistance, intelligent disconnection of Solar charging.
3. Dual power supply function: Battery + solar power supply.

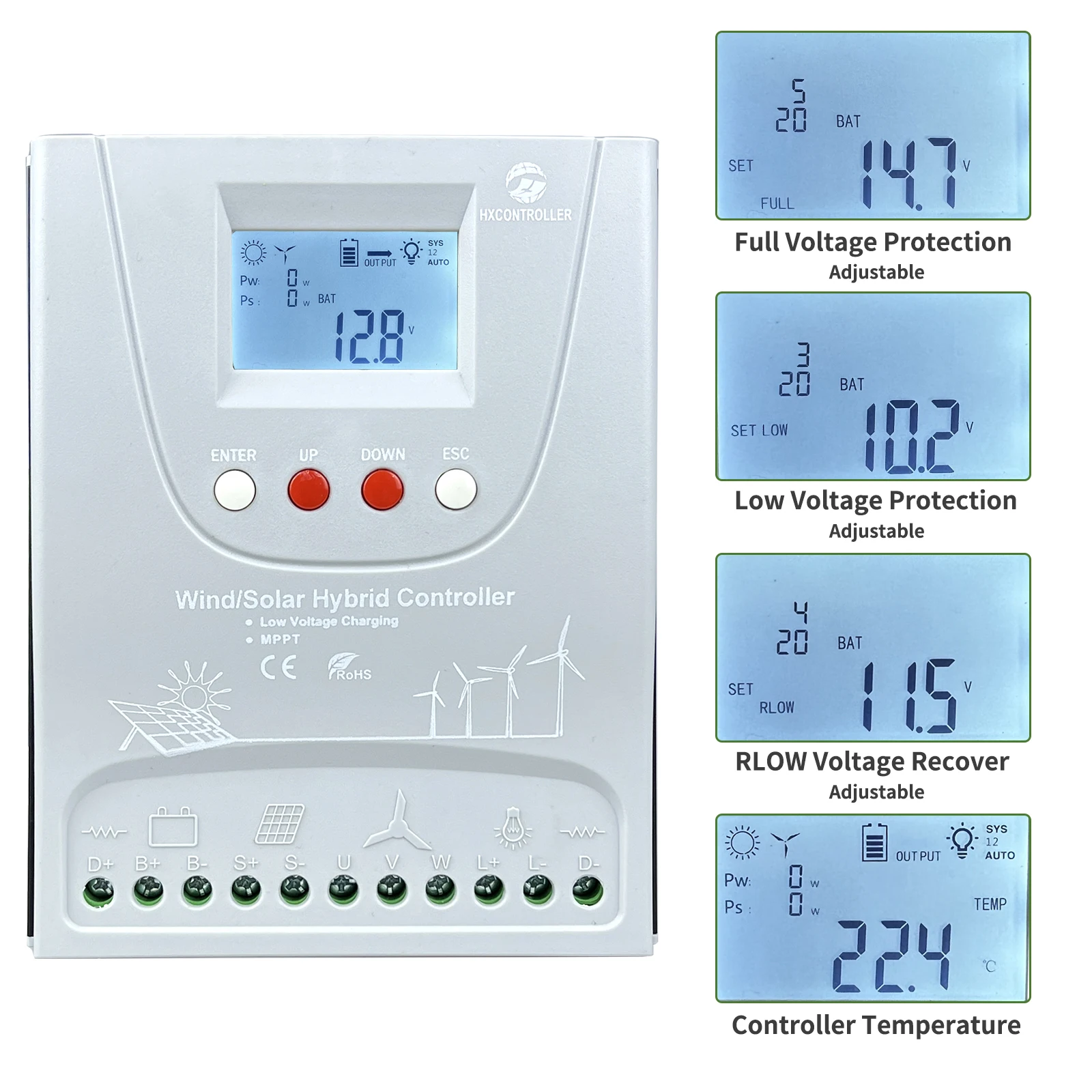

4. LCD displays parameters such as voltage and current of wind, solar and load .Some parameters can be set by users.
5. DC output with 3 output modes.
6. The inner circuit board of the controller is sprayedwith conformal coating to prevent dust, moisture and static electricity.
Controller protection function
Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection
protection protection、Over current and over voltage auto brake protection、Over load protection,etc.
|
Protection |
Explanation |
|
Reversed charging Protection of solar |
Such as at night, the voltage of the battery may be higher than solar panel. The controller protect the battery from charging the solar panel. |
|
Reversepolarity Protection of battery |
When the battery polarity is reversed, the controller does not work and there is no display. The fuse protects the internal circuit.If the battery does not work properly after it is connected correctly, just need to replace the fuse . |
|
Battery open circuit Protection |
After long-term use, the battery may be Open-Circuit or poor connect. The controller can protect itself from damage.Check the connection regularly. |
|
Over voltage |
When it’s strong wind or over voltage, the controller will automatically start braking function to protect the wind generator and battery. The controller will automatically cuts off the circuit when the output is over voltage. |
|
Lightning Protection |
Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, special lightning protection devices and other components of the multilevel lightning protection system are needed. It need additional payment If the user need this function. |

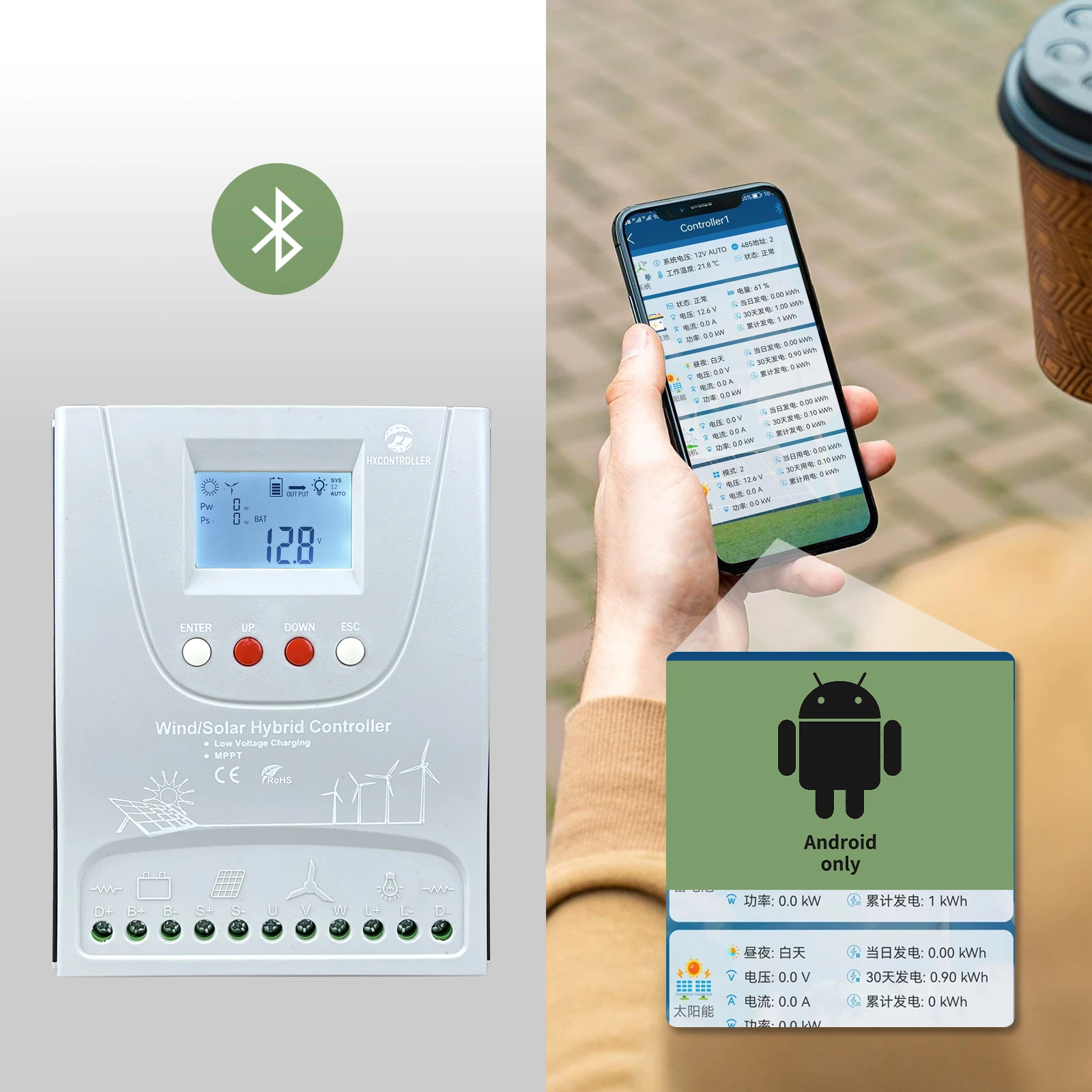

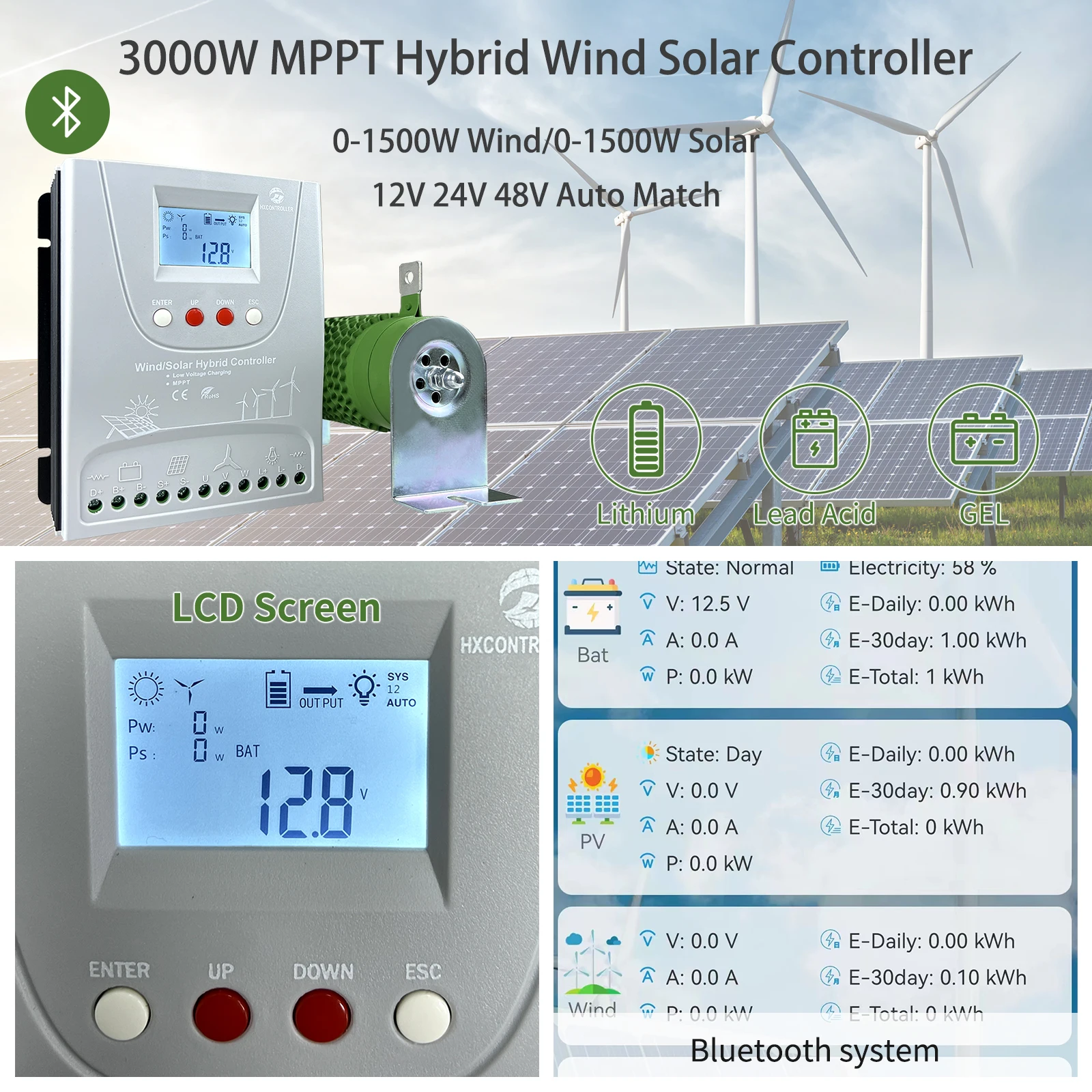

Built-in Smart Bluetooth device
(If you want to use bluetooth, please buy bluetooth version, otherwise, controller is not include bluetooth function)
The Bluetooth module is directly built into the controller. You do not need to buy additional Bluetooth
devices. You only need to turn on the Bluetooth device of your mobile phone and download the mobile APP
at the same time to quickly connect to the network system of the controller. Due to the differences between
the Android and IOS systems, the device only supports the Android system for the time being, not the IOS
system. Our controller APP system can help you check the working conditions of the controller at any time
on your mobile phone, such as the voltage of wind energy, solar energy and battery, and help you find out
the abnormality of the controller or battery in time. The effective monitoring range of the Bluetooth system
is within 200 meters. If your mobile phone is more than 200 meters away from the controller, the mobile
phone will not be able to monitor the controller.
Product Parameter
|
MPPT Hybrid Controller Parameter |
||||||||||||
|
Model |
1200W |
1400W |
2000W |
1200W |
1400W |
2000W |
1200W |
1400W |
2000W |
2400W |
3000W |
|
|
System Rated Voltage |
12V |
24V |
48V |
|||||||||
|
Wind Turbine |
Rated Voltage |
12VAC |
24VAC |
48VAC |
||||||||
|
MPPT(Boost Up) |
7VAC |
17VAC |
34VAC |
|||||||||
|
Max Current |
25A |
33.3A |
41.6A |
25A |
33.3A |
41.7A |
12.5A |
16.7A |
20.8A |
25A |
31.25A |
|
|
Workable Power |
0~300W |
0~400W |
0~500W |
0~600W |
0~800W |
0~100W |
0~600W |
0~800W |
0~1000W |
0~1200W |
0~1500W |
|
|
AC Rectify DC |
16.8VDC |
33.6VDC |
67.2VDC |
|||||||||
|
Charge Current |
17.9ADC |
23.8ADC |
28ADC |
17.9ADC |
23.8ADC |
29.8ADC |
8.92ADC |
11.9ADC |
14.9ADC |
17.8ADC |
22.3ADC |
|
|
Solar Module |
Voc |
30V |
55V |
95V |
||||||||
|
Vmp |
15V~22VDC |
30V~44VDC |
60~88VDC |
|||||||||
|
MAX Charge Current |
25A |
25A |
30A |
25A |
25A |
30A |
12.5A |
12.5A |
16.7A |
20A |
25A |
|
|
Workable Power |
0~300W |
0~300W |
0~500W |
0~600W |
0~600W |
0~1000W |
0~600W |
0~800W |
0~1000W |
0~1200W |
0~1500W |
|
|
DC Load |
Out Put Power |
0~240W |
0~480W |
0~960W |
||||||||
|
Rated Voltage |
12VDC |
24VDC |
48VDC |
|||||||||
|
Max Current |
20A |
20A |
20A |
|||||||||
|
Environment |
Temperature |
1) Working:-20℃～55℃; 2)Storage:-40℃～80℃ |
||||||||||
|
Humidity (°C) |
10%～90% No condensation |
|||||||||||
|
Protection Grade |
IP30 |
|||||||||||
|
Others |
Conversion Efficiency |
﹥98% |
||||||||||
|
Operation Mode |
Default to streetlight mode |
|||||||||||
|

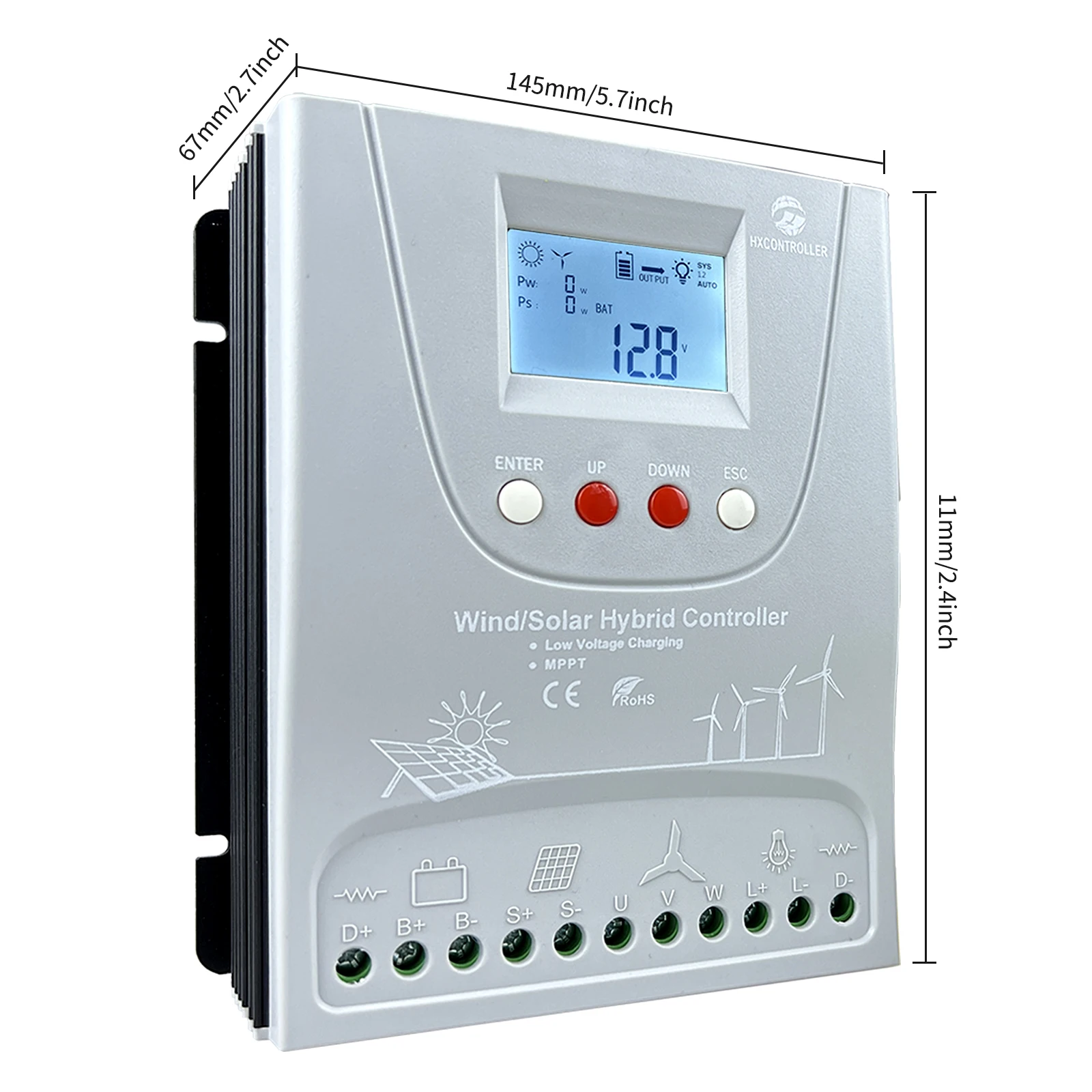

Weight |
N.W: 2.2KGS/G.W: 2.5KGS |
|||||||||||
|
Packing Size |
37*26*12 |
|||||||||||
