2023 New 11th Gen Intel i7 1165G7 i5 1135G7 4 Intel i226 2.5G LAN Mini Fan Router 2xDDR4 NVMe pfSense Computer Firewall PC
$483.18 – $1,657.89
Description
- Processor Main Frequency: Celeron/Core
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 512GB
- Model Number: X4DF
- Processor Brand: Intel
- Processor Model: Celeron/Core
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE
- Type: MINI PC
- Wireless: 1*MPCIE WiFi/3G/4G slot, optional
- Feature: Fanless System 0.00dB
- Application: Industrial, education, business, home theater, projects
- Case Material: Brushed Aluminum Alloy
- Color: Black/Gray by random
- Storage Type: 1*M.2 2280 NVMe 1*2.5 inch SATA
- Memory Type: 2*DDR4 None-ECC SODIMM Ram
- Netwok Ethernet: 4*Intel i226 2.5G LANs
|

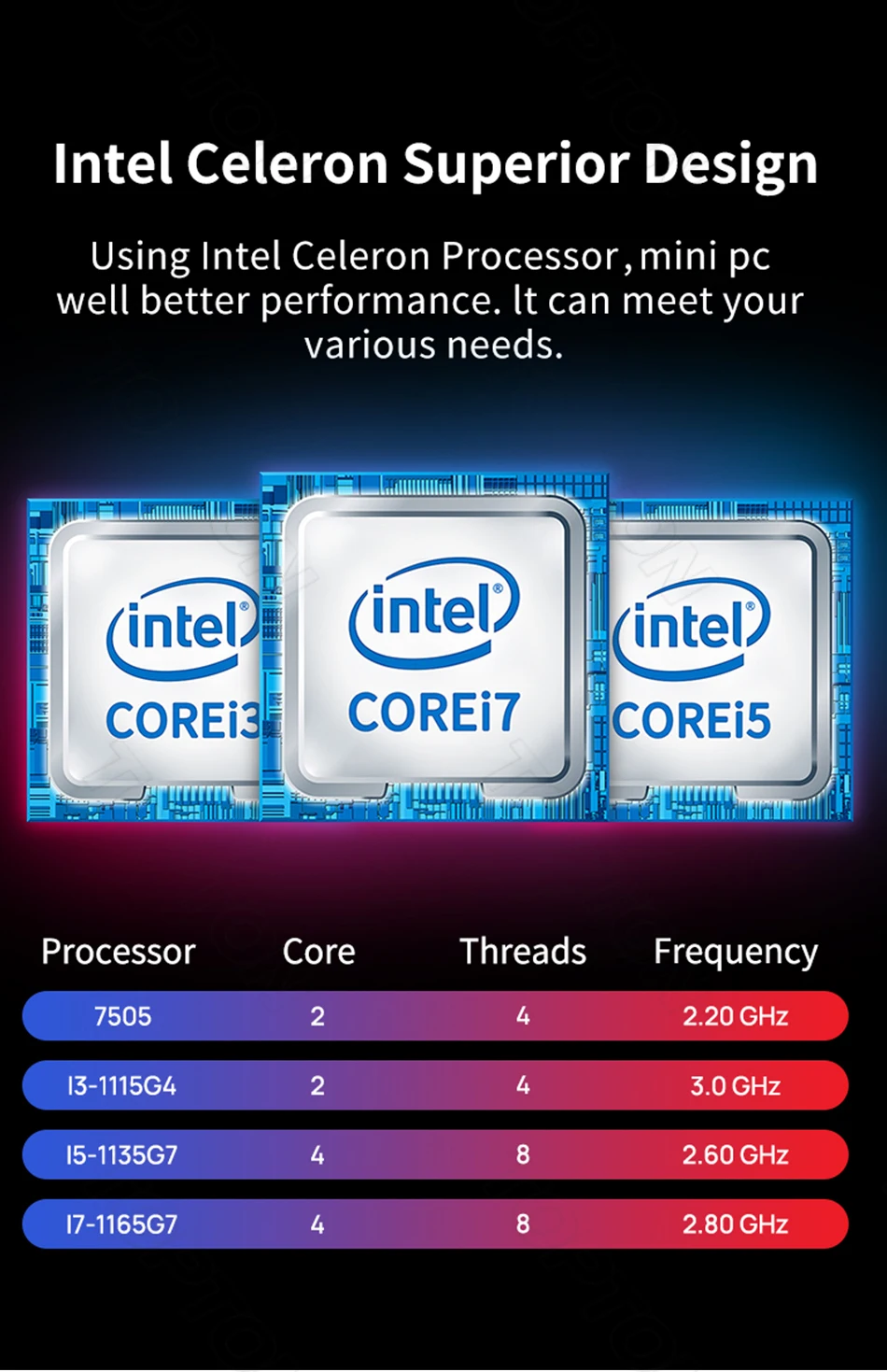

Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
Graphics |
|
Celeron N5105 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.90GHz |
Intel UHD Graphics 450MHz-750MHz |
|
Pentium Gold 7505 |
2Â cores, 4Â threads |
4M |
2.00 GHz |
3.50 GHz |
Intel UHD Graphics 1.25 GHz |
|
Core i3-1115G4 |
2 cores, 4 threads |
6M |
3.00 GHz |
4.10 GHz |
Intel UHD Graphics 1.25 GHz |
|
Core I5-1135G7 |
4Â cores, 8Â threads |
8M |
2.40 GHz |
4.20 GHz |
Intel Iris Xe Graphics 1.30GHz |
|
Core i7-1165G7 |
4Â cores, 8Â threads |
12M |
2.80 GHz |
4.70 GHz |
Intel Iris Xe Graphics 1.30GHz |

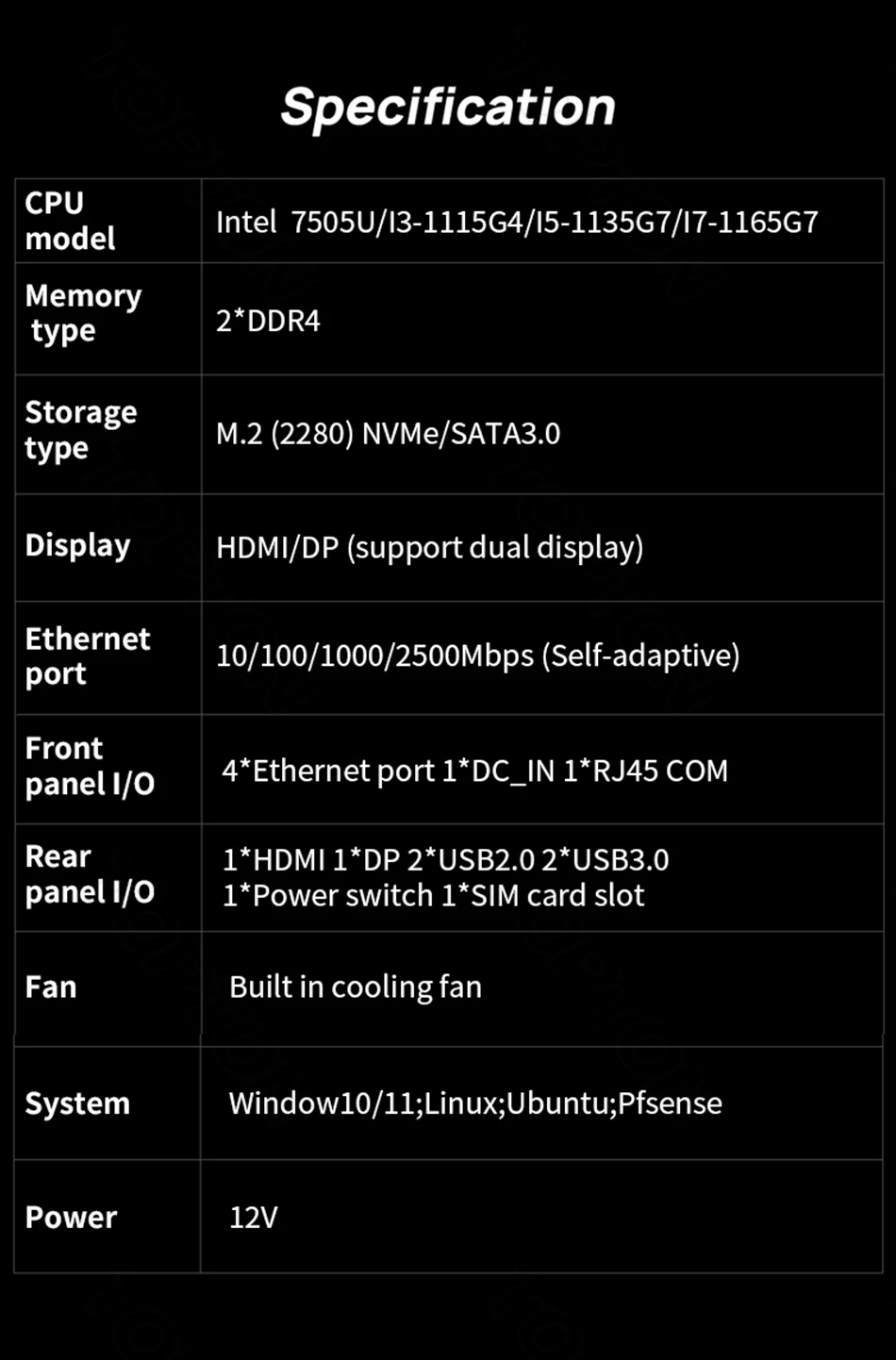

Product Highlight

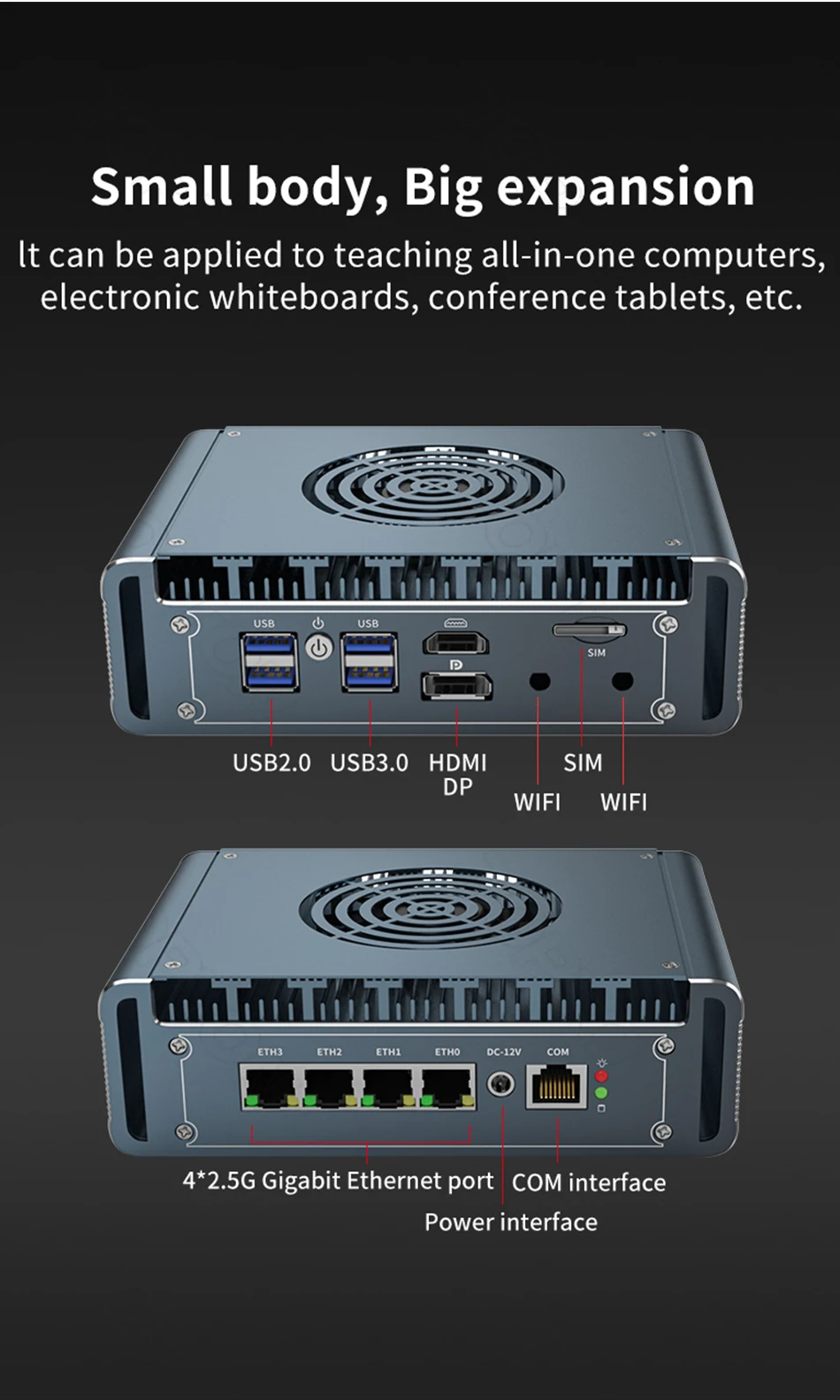

–4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.
-2xDDR4 SODIMM non-ecc ram slot, max support 32GB.
-Support two storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1×2.5”SATA SSD/HDD.
-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.

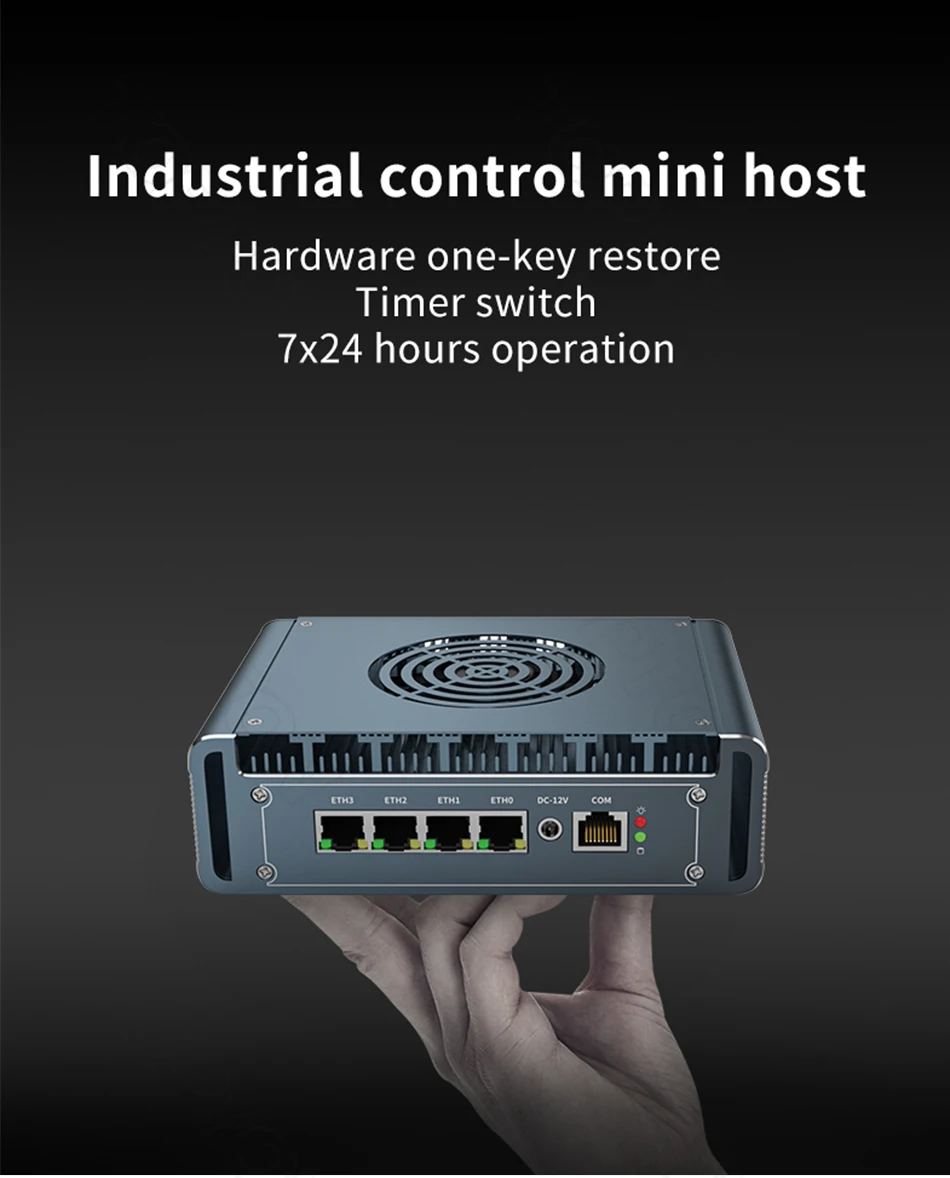

-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
1. All bundles on sale DO NOT include WiFi/3G/4G module(antennas), WiFi module cost US $10(Only USB protocol), 3G module cost US $50, 4G module cost US $70. If you need, pay at this link.
2. DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage. We are afraid to see you suffer a bad shopping experience and DO NOT compensate for buyer’s man-made damage and faulty.
Notice
Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt, ESXi, Proxmox, CentOS etc. DO NOT open dispute because of system issue.
Welcome to click the picture of VESA Bracket to order together if you need:

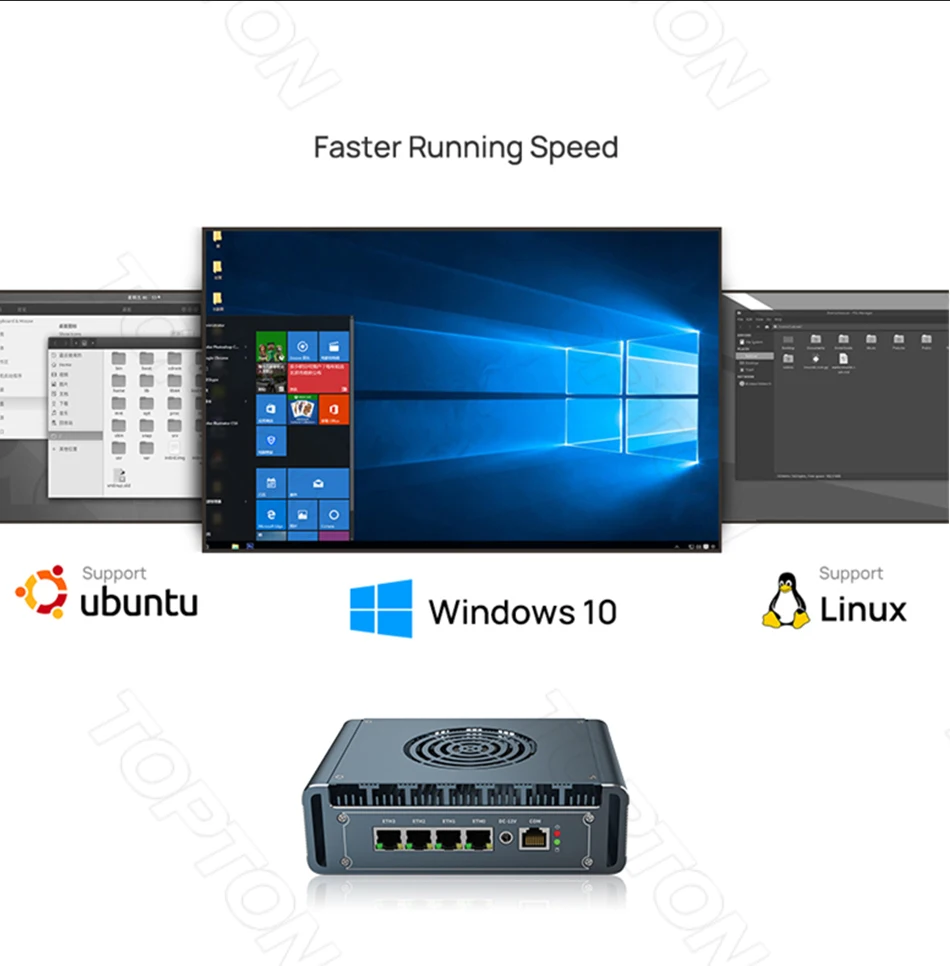

Free Operating System: Default installed pfSense.Other systems we can install free are like Windows, Linux, Ubuntu, OPNsense etc if you need.Seller is irresponsible and makes no compensation for trial system.
500GB 2.5” HDD add extra 50$, 1TB 2.5” HDD add extra 65$, 2TB 2.5” HDD add extra 100$.
Upgrading link: https://www.aliexpress.com/item/1005002424390838.html
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5” HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for…)
