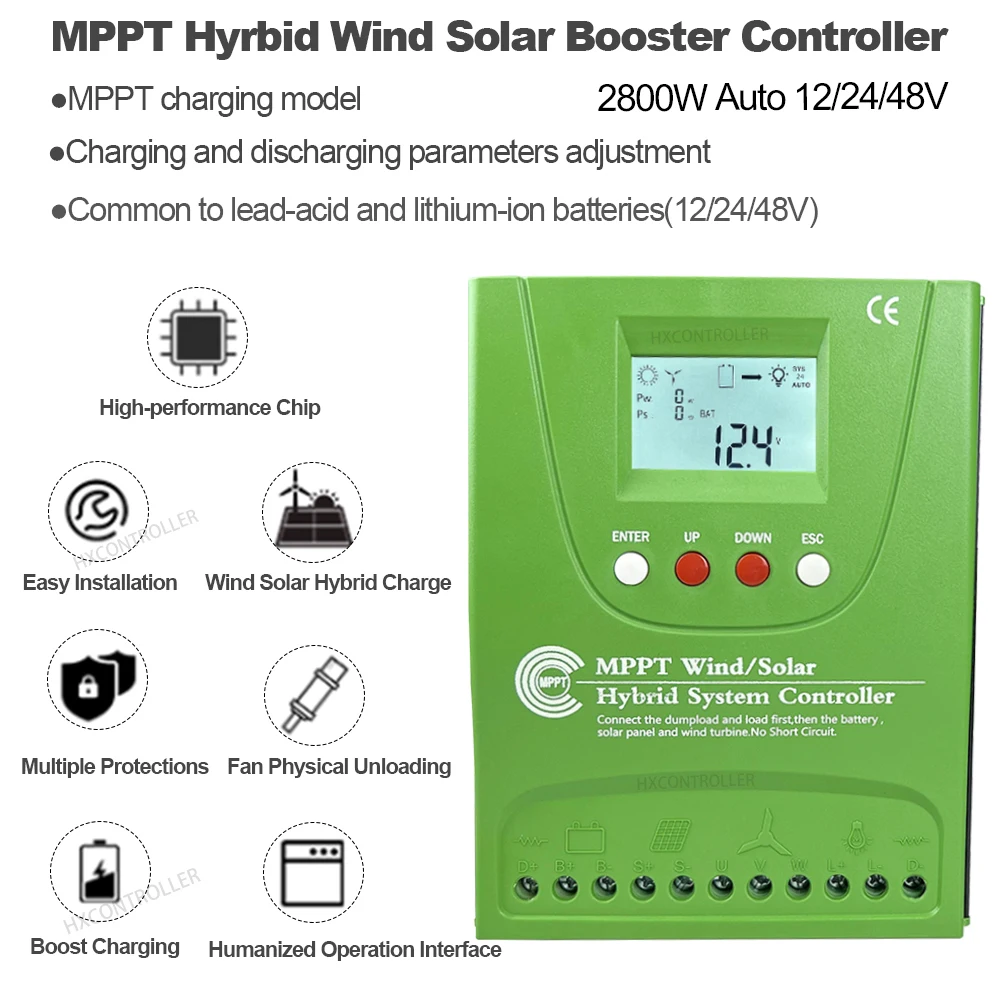

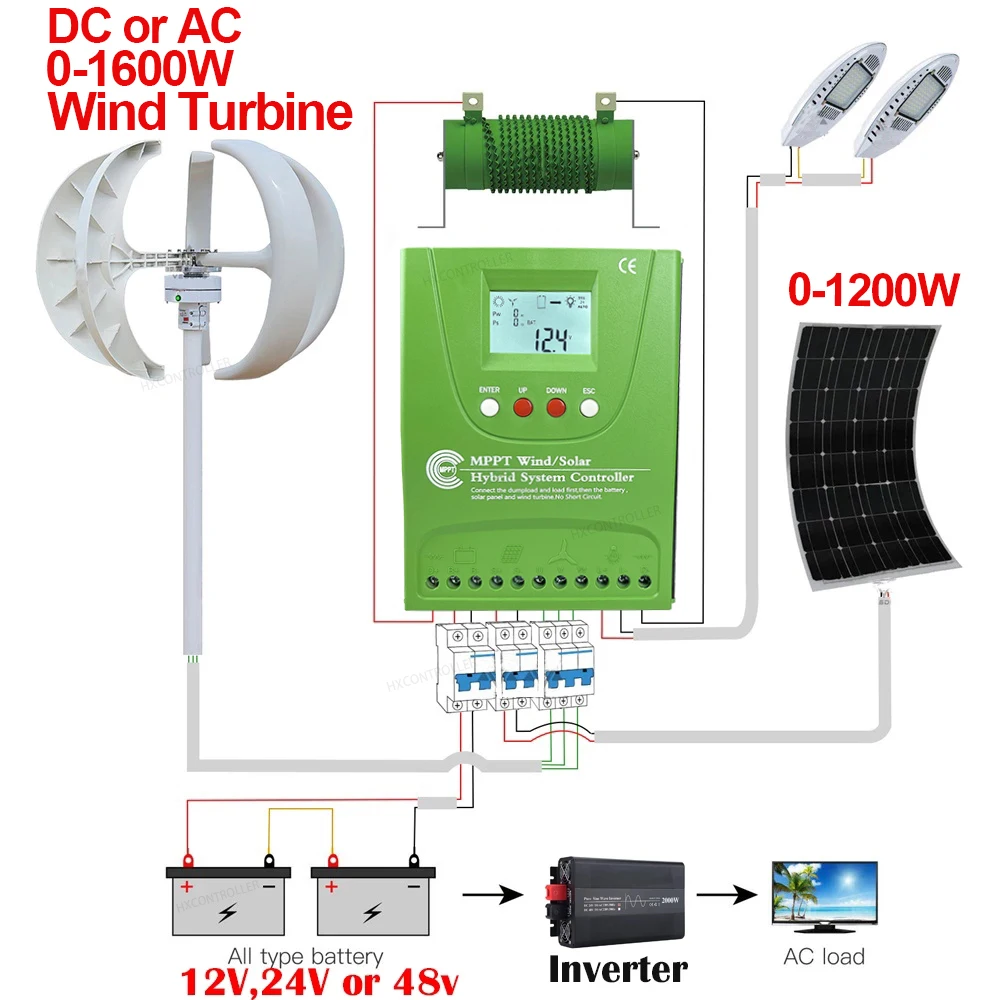

12V 24V 48V MPPT Wind Turbine Solar Panel System Controller 2800W 2200W 2000W 1400W 1200W Hybrid Wind Solar PV Charge Controller

Protection

Explanation

Reversed charging Protection of solar

Such as at night, the voltage of the battery may be higher than solar panel. The controller protect the battery from charging the solar panel.

Reversepolarity Protection of battery

When the battery polarity is reversed, the controller does not work and there is no display. The fuse protects the internal circuit.If the battery does not work properly after it is connected correctly, just need to replace the fuse .

Battery open circuit Protection

After long-term use, the battery may be Open-Circuit or poor connect. The controller can protect itself from damage.Check the connection regularly.

Over voltage
Over current
Over load voltage Protection

When it’s strong wind or over voltage, the controller will automatically start braking function to protect the wind generator and battery. The controller will automatically cuts off the circuit when the output is over voltage.

Lightning Protection

Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, special lightning protection devices and other components of the multilevel lightning protection system are needed. It need additional payment If the user need this function.

Lead acid battery (single 12V)

System rated voltage / V

12V system (1 string)

24V system (2 strings)

48V system (4 strings)

12V default value

Overvoltage (overcharge) / V

13～17V

26～34V

52～68V

15.5V

Overvoltage return / V

13～17V

26～34V

52～68V

15V

Increase charging voltage / V

9～15V

18～30V

36～60V

14.4V

Floating charge voltage / V

9～15V

18～30V

36～60V

13.8V

Undervoltage /V

7～13V

14～26V

28～52V

10.8V

Undervoltage return voltage /V

9～15V

18～30V

36～60V

13.1V

Ternary lithium battery (single section 3.7V)

System rated voltage

12V system (default 3 strings)

24V system (default 6 strings)

48V system (default 12 strings)

3 string defaults

Overvoltage (overcharge) / V

10.5～15V

21～30V

42～60V

13.5V

Overvoltage return / V

10.5～15V

21～30V

42～60V

12.6V

Increase charging voltage / V

10.5～15V

21～30V

42～60V

12.4V

Floating charge voltage / V

6～13.5V

12～27V

24～54V

12.0V

Undervoltage /V

6～13.5V

12～27V

24～54V

9.3V

Undervoltage return voltage /V

6～13.5V

12～27V

24～54V

10.5V

Number of strings

3～4

6～8

14～18

3

Lithium iron phosphate (single section 3.2V)

System rated voltage

12V system (default 3 strings)

24V system (default 6 strings)

48V system (default 12 strings)

3 string defaults

Overvoltage (overcharge) / V

9～12V

18～24V

36～48V

11.7V

Overvoltage return / V

9～12V

18～24V

36～48V

11.1V

Increase charging voltage / V

9～12V

18～24V

36～48V

10.8V

Floating charge voltage / V

9～12V

18～24V

36～48V

10.2V

Undervoltage /V

6～12V

12～24V

24～48V

8.4V

Undervoltage return voltage /V

6～12V

12～24V

24～48V

9.6V

Number of strings

3～4

6～8

14～18

3

Rated system voltage

12/24 AUTO

Model

DH-700

DH-1200

DH-1400

DH-2000

Battery

12V

24V

12V

24V

12V

24V

12V

24V

Rated wind power

200

400

300

600

400

800

500

1000

Rated PV power

150

300

300

600

300

600

500

1000

Max input voltage

Wind turbine≤80Vsolar panel≤55V

Rate system Voltage

24V48V auto Match

Model

DH-800

DH-2000

DH-2200

DH-2800

Battery voltage

24V

48V

24V

48V

24V

48V

24V

48V

Rated wind power

300

600

500

1000

600

1200

800

1600

Rated PV power

300

600

500

1000

500

1000

600

1200

Max input voltage

Wind turbine≤80Vsolar panel≤95V

No-load Current (DC)

≤0.05A

Controller power mode

Battery or solar

Control mode

Wind generator MPPT boost charge、PWM dump load、PWM Over currentLimiting function

Outputworking mode(Mode)

Mode 1: Light-control on. Light-control off (3modes adjustable)

Display content

LCD display,Voltage,Percentage of battery power, Current, working mode of load,etc

Protection type

Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.

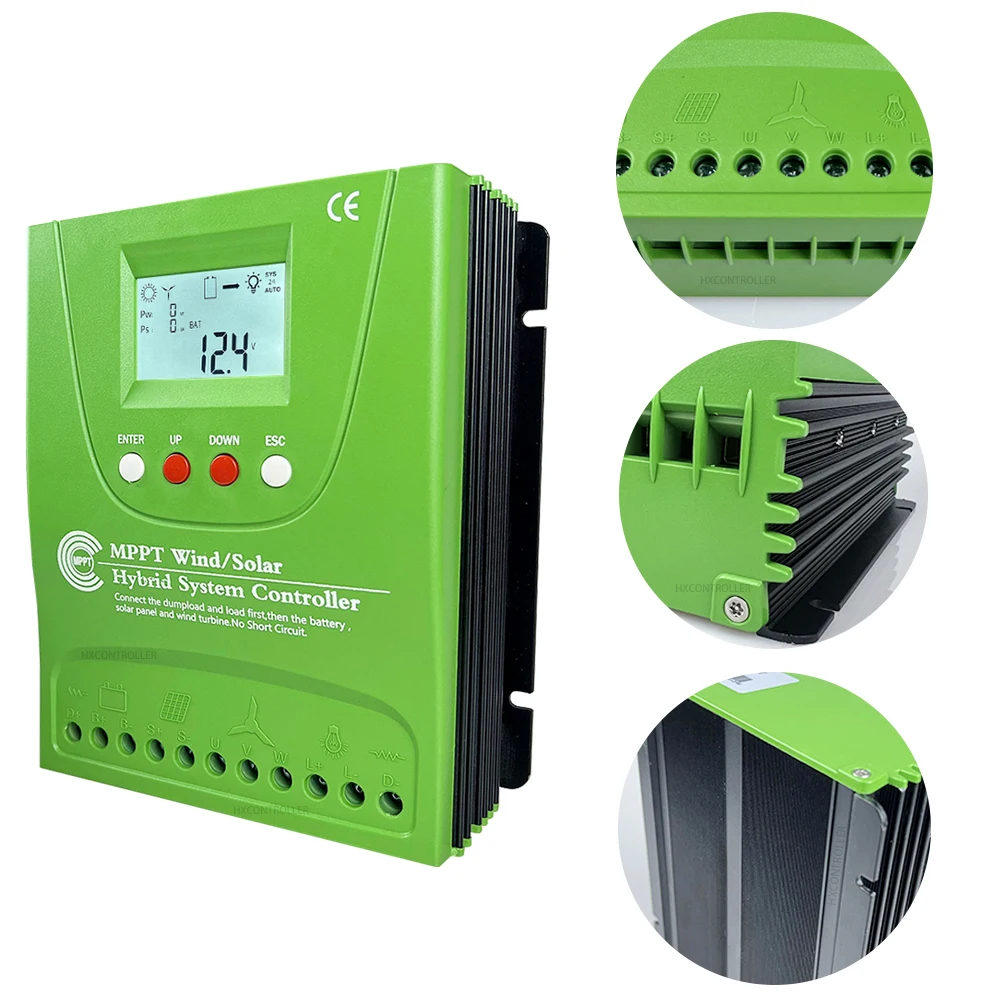

Cooling mode

aluminium profiles Heat dissipation and self-cooling

Working temperature / Relative humidity

-25℃~+80℃ /0~90%，non-condensing

Net weight / Gross weight

2.35/2.85kg

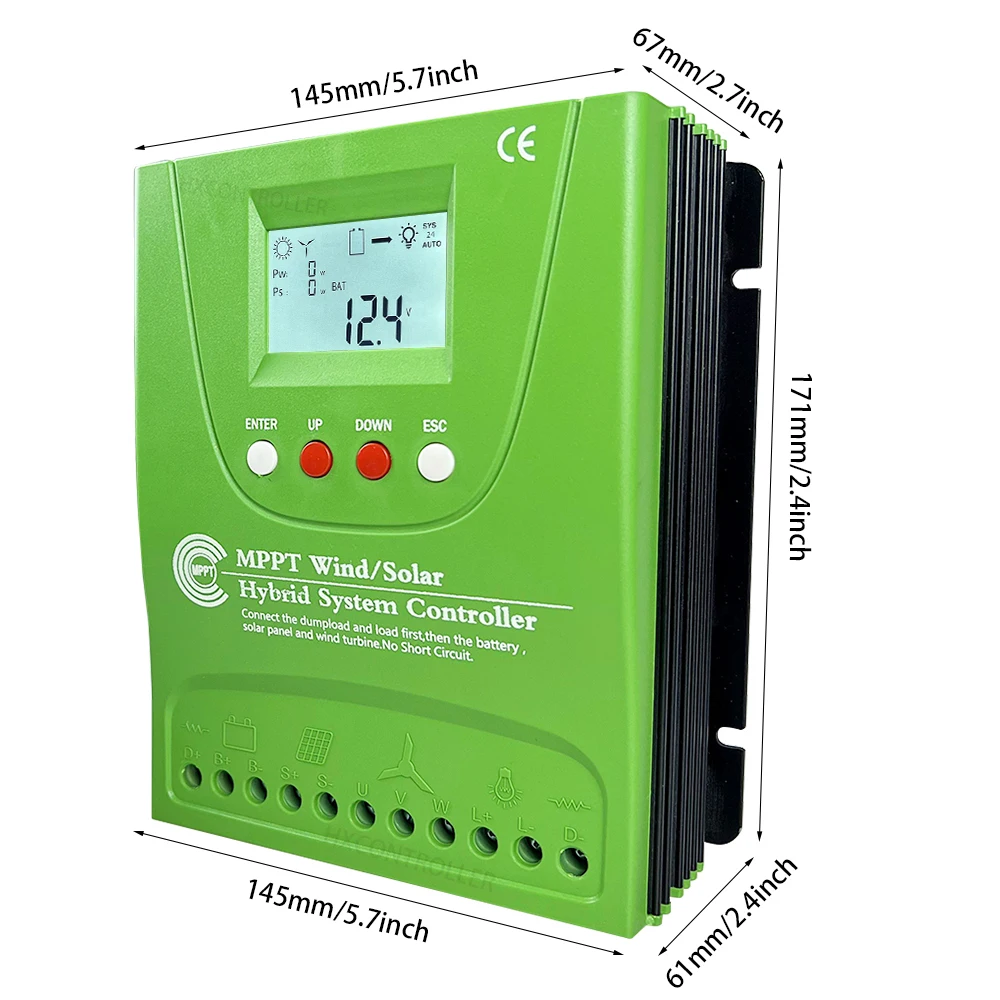

Controller size/Pack size

167mm*145.5mm*61.8mm/360mm*250mm*120mm
